Barrel water line
5 Gallon Water Filling Line
60–2,000 barrels/h
Sold in some markets as a water jar machine or 20 litre line. Add the AGL-12 semi-automatic blow molder to make new 10–25 L PET barrels in-house, and the outside brusher as a 20 liter water bottle washing machine for returned barrels.

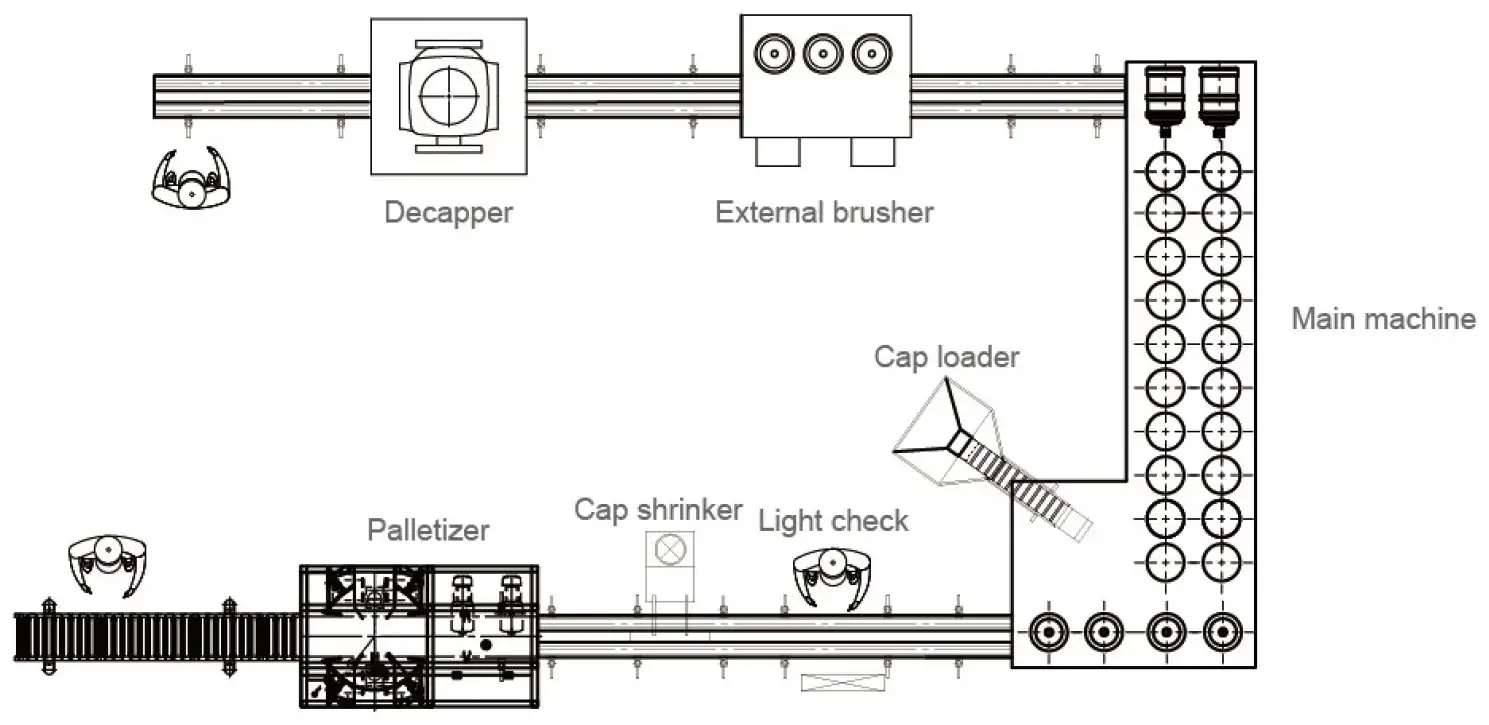

Quick answerA 5 gallon water filling line turns treated water into sealed 3 or 5 gallon barrels: decapping, outside brushing, washing, filling and capping, light check, cap shrinking and palletizing. Angel’s QGF lines run from 60 to 2,000 barrels per hour as the 5 gallon water bottling machine at the centre of the plant.
2026 catalogue · QGF seriesEquipment in the line
From raw material to pallet, in process order
Recommended equipment for 5-gallon bottled water production. The final configuration depends on whether new or returnable bottles are used, as well as the required production capacity.
Water treatment system
Provides purified water for 5-gallon bottled water production through multi-stage filtration, reverse osmosis and disinfection, helping ensure consistent water quality.
See the machine

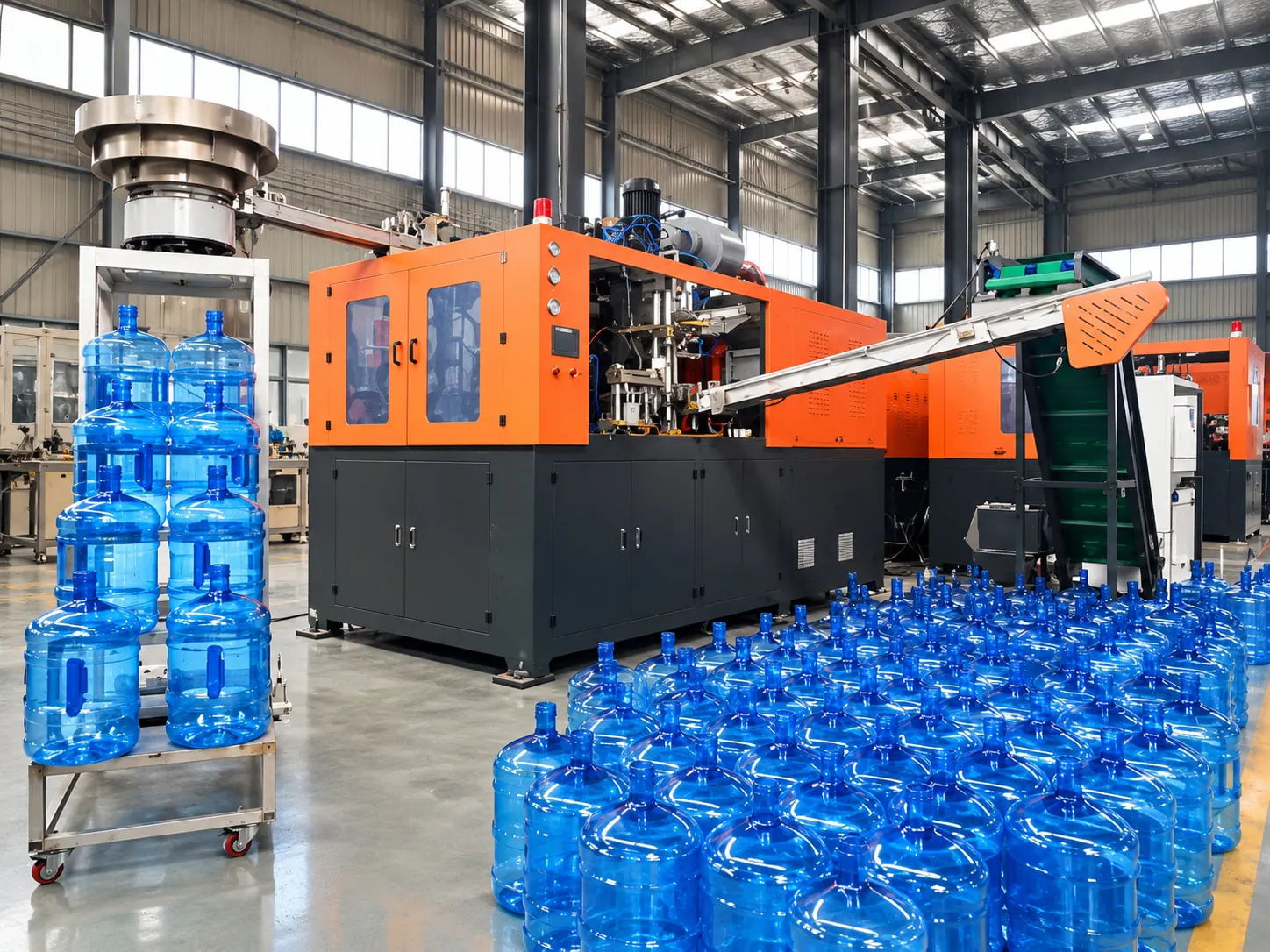

PET barrel blow molding machine
Produces large PET water bottles for 5-gallon bottled water production. Available as an optional solution when customers plan to manufacture new bottles in-house.
See the machine

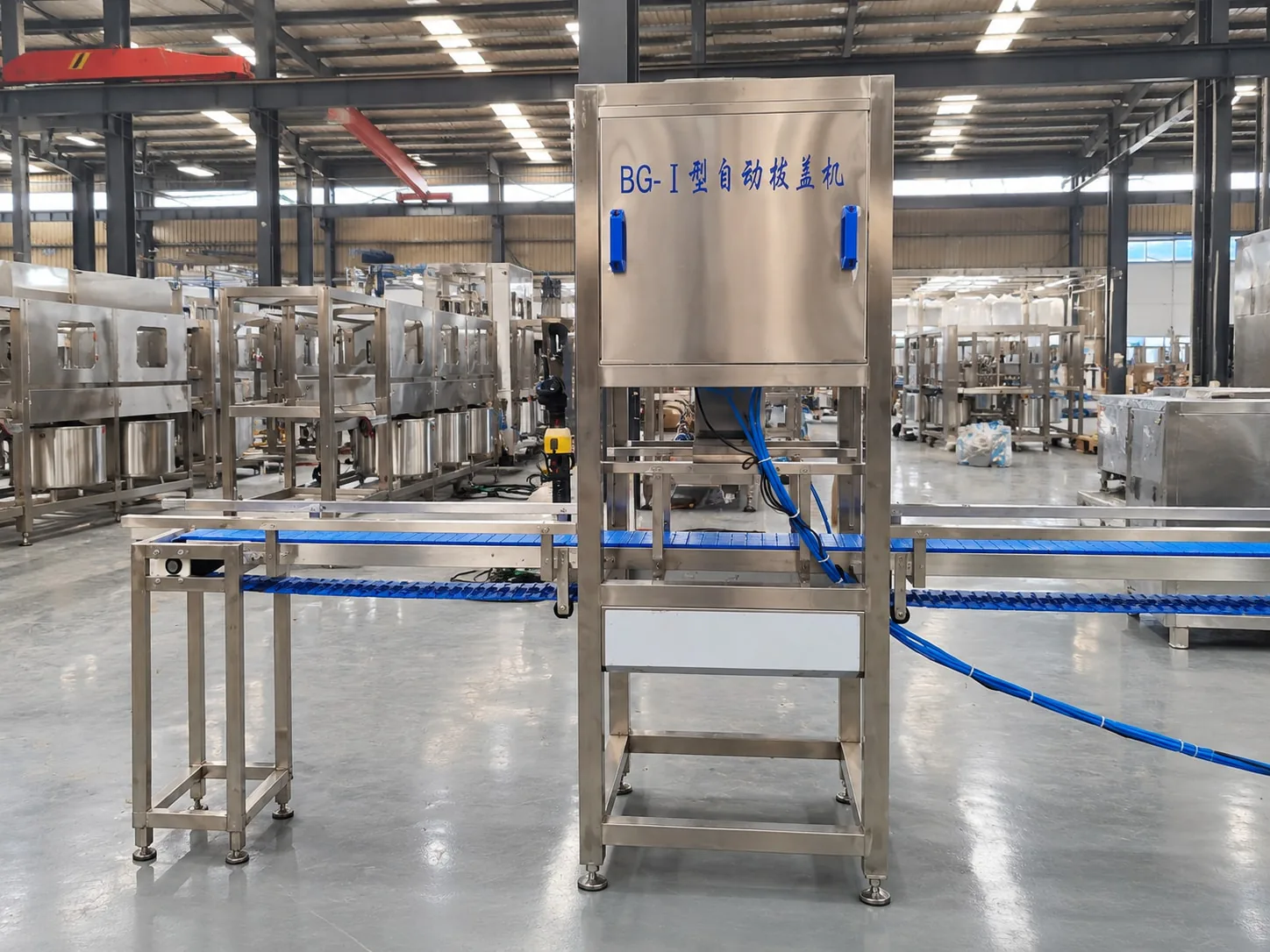

Automatic decapping machine
Automatically removes caps from returned 5-gallon water bottles before washing, reducing manual handling and improving production efficiency.

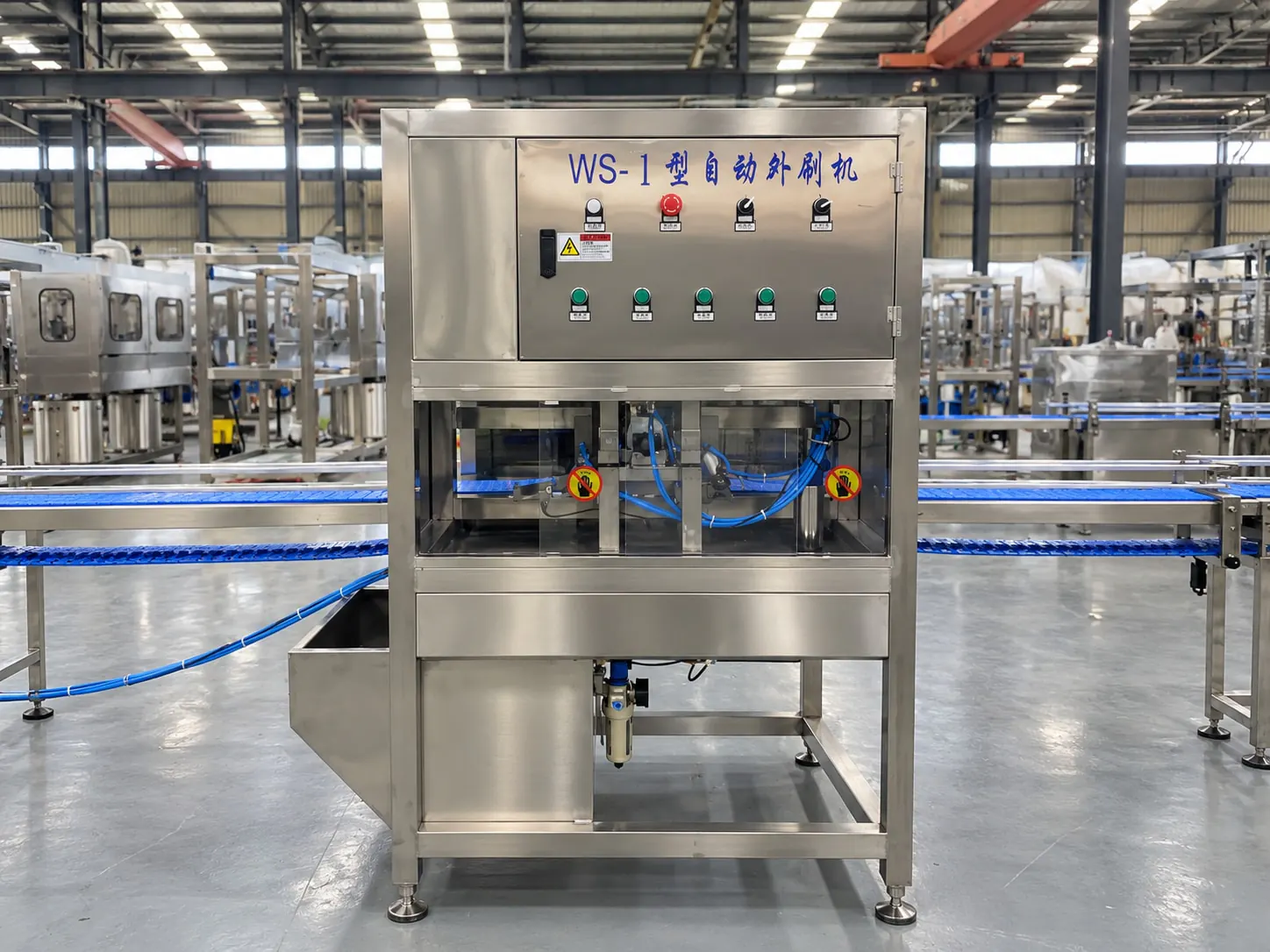

Automatic external bottle washing machine
Cleans the outer surfaces of reusable 5-gallon water bottles using rotating brushes and water spray, removing dirt and surface contaminants before filling.

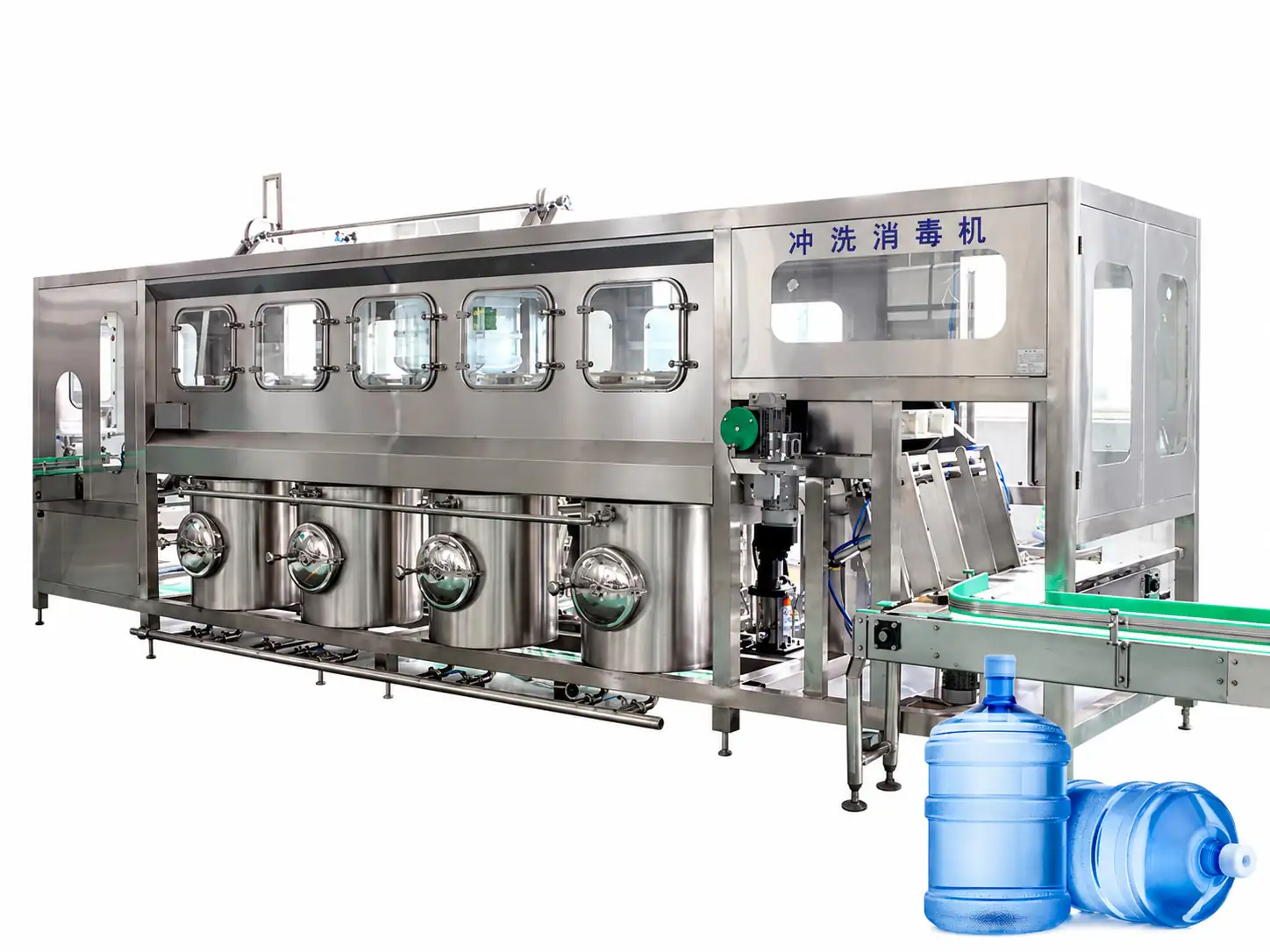

QGF 3-in-1 washing, filling and capping machine
Integrates internal bottle washing, water filling and capping into one automatic system, supporting hygienic and efficient production of 5-gallon bottled water.
See the machine

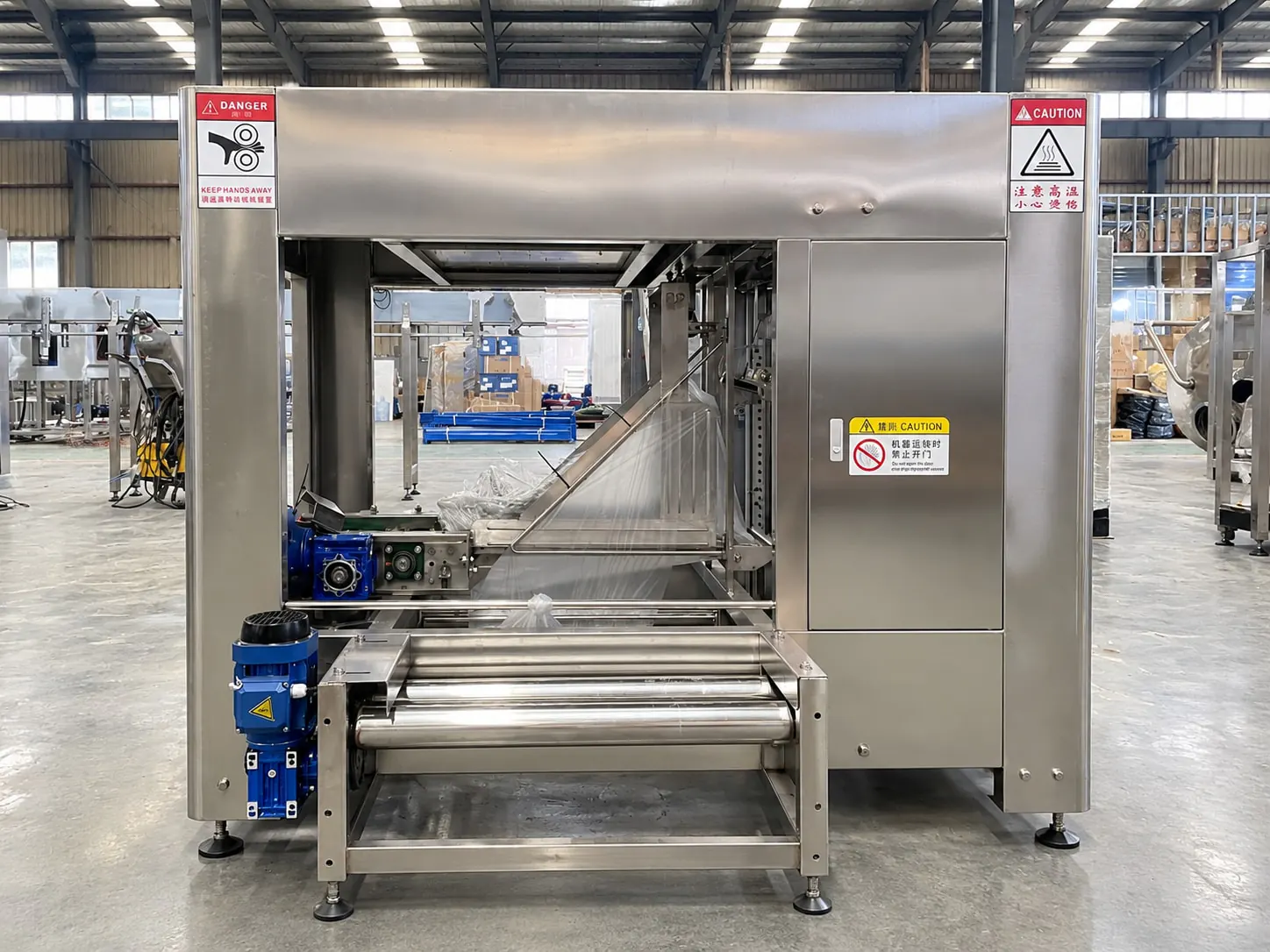

5 gallon bottle cap shrinking system
Applies heat-shrink seals around the caps of filled 5-gallon water bottles, providing additional protection and tamper evidence while ensuring a neat and professional finish.

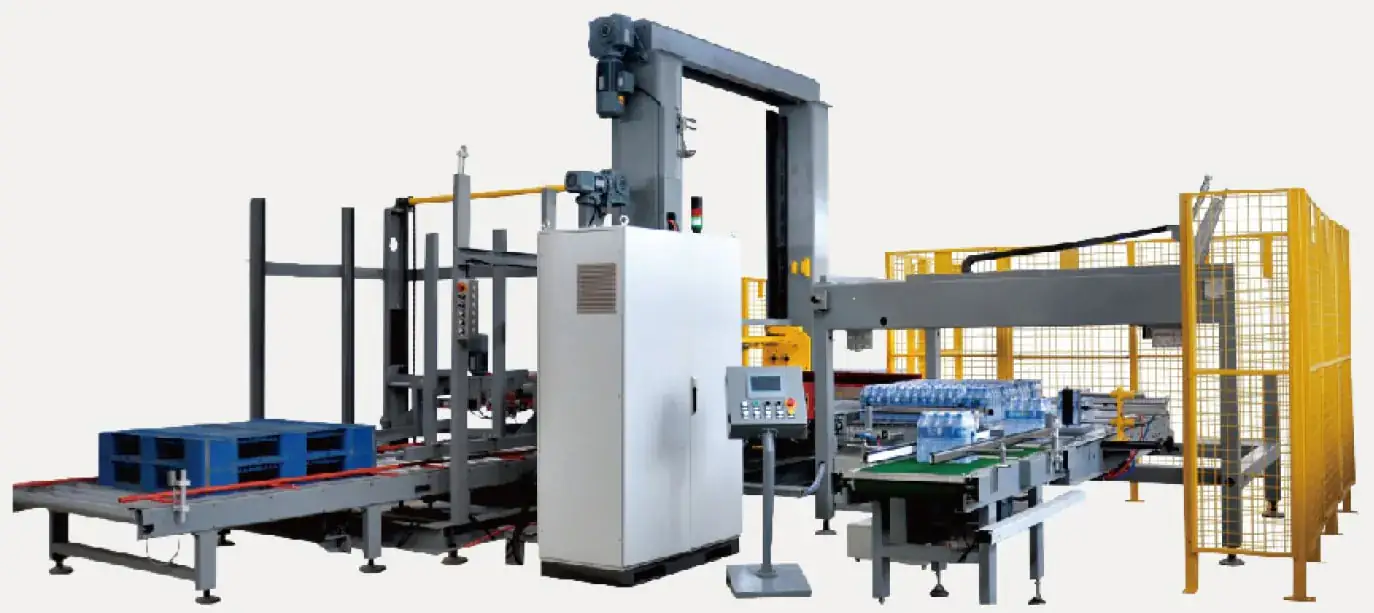

Automatic palletizing system
Automatically stacks filled 5-gallon water bottles onto pallets in an organized arrangement, reducing manual handling and improving end-of-line efficiency.
See the machine

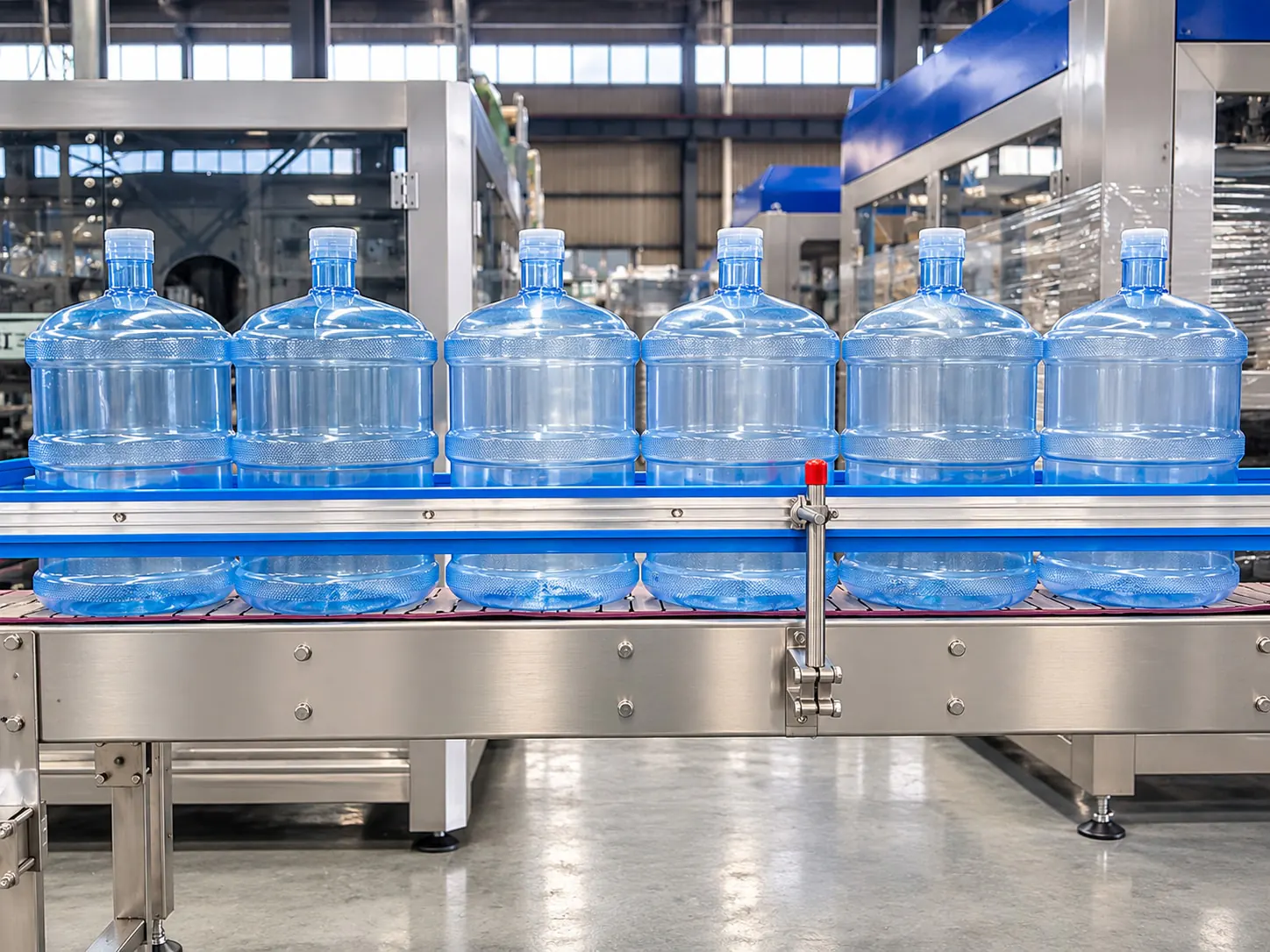

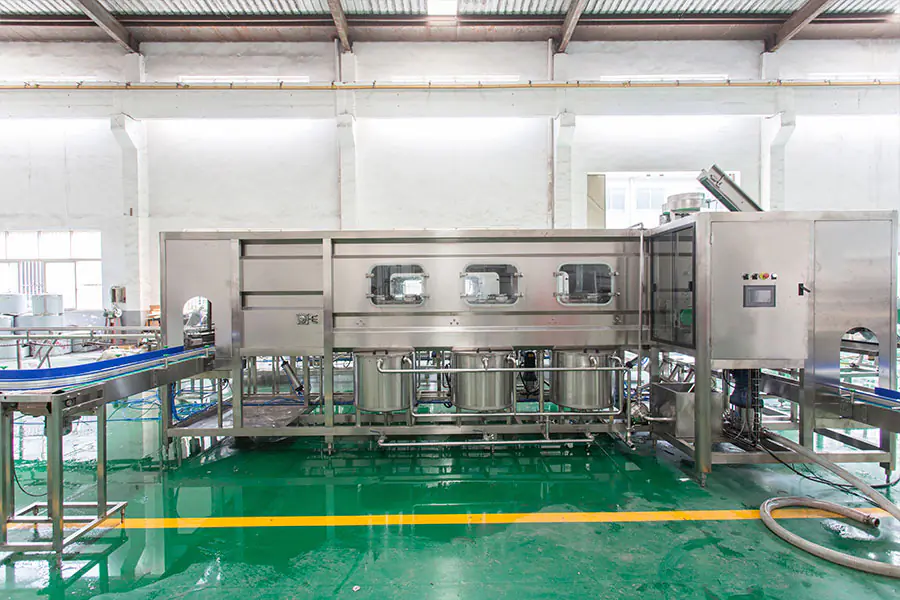

5 gallon bottle conveyor system
The stainless steel conveyor system ensures smooth and stable transportation of 5-gallon water bottles between different production stages, reducing manual handling and improving overall production efficiency.
See the machine
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

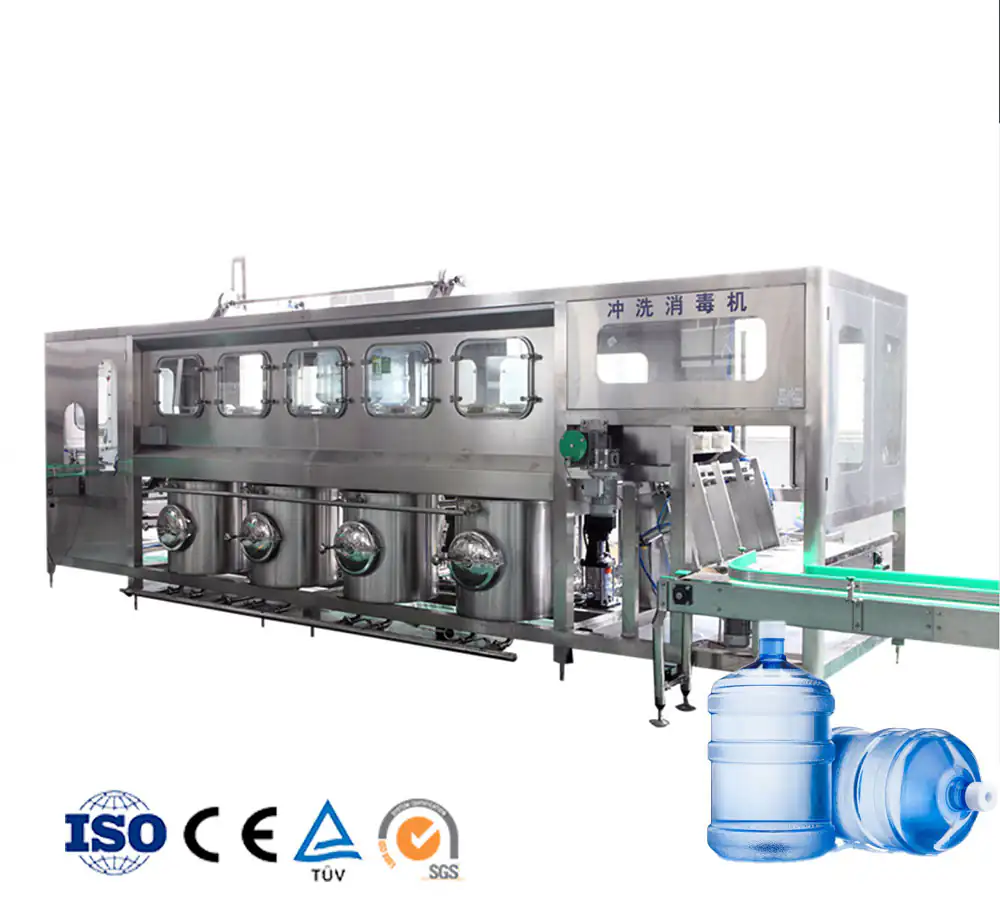

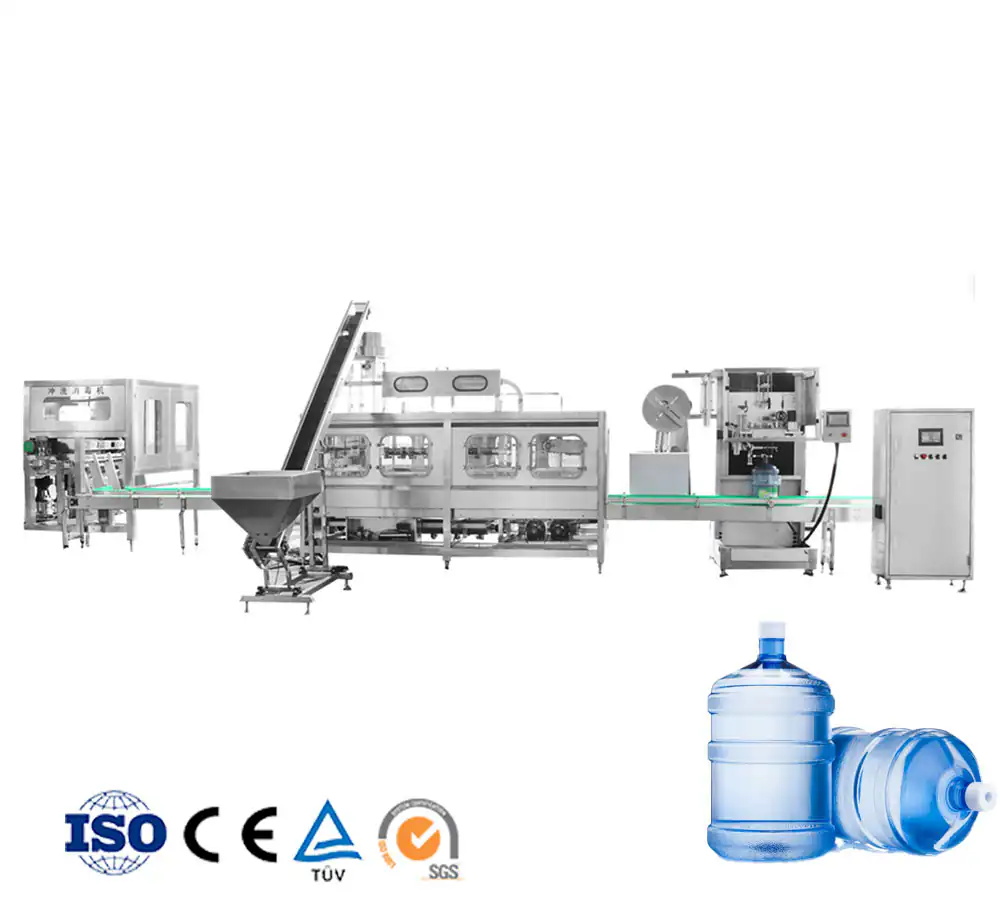

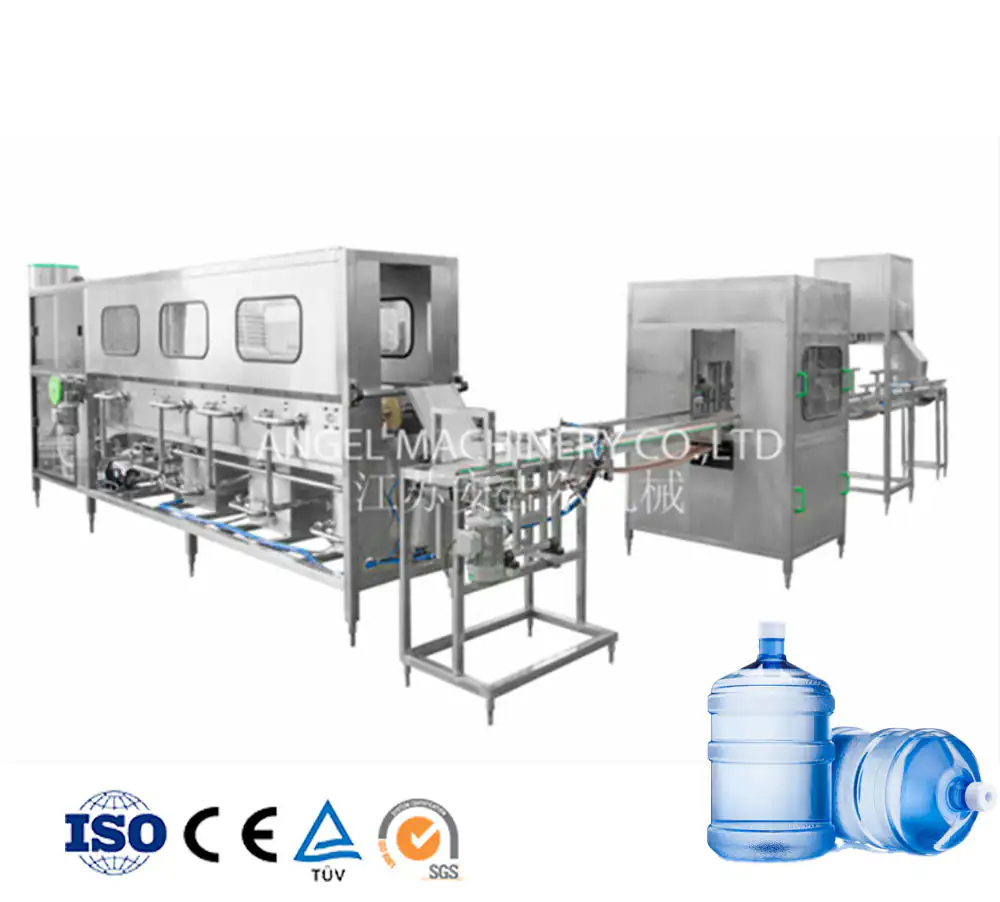

QGF 3-in-1 washing, filling and capping machine
Washes, fills and caps 3 and 5 gallon barrels in one machine, from 60 to 2,000 barrels per hour. Choose the model by output below.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
Full automatic 5 gallon water production line (QGF)
Source: Angel Machine 2026 catalogue, page 12.
Swipe to see all models →
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
|---|---|---|---|---|---|---|---|---|
| Filling heads | 1 | 2 | 3 | 4 | 6 | 12 | 15 | 18 |
| Barrel volume (gallon) | 3 & 5 | |||||||
| Barrel size (mm) | Φ270×490 | |||||||
| Capacity (barrels/h) | 60-100 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 | 1300-1500 | 1800-2000 |
| Air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6-0.8 | 0.6-0.8 |
| Air consumption (m³/min) | 0.37 | 0.6 | 0.8 | 1.0 | 1.5 | 3.0 | 3.75 | 4.5 |
| Motor power (kW) | 2.03 | 3.35 | 5.57 | 5.57 | 6.37 | 8.87 | 9.24 | 11.24 |
| Rated voltage | 380 V / 50 Hz | |||||||
| Weight (kg) | 700 | 1500 | 2100 | 2700 | 3400 | 4200 | 5000 | 6000 |
Also consider
To bottle the same water in 330 ml–2 L PET bottles, see the PET water bottling line.
For 3–10 L bottles, see the 3–10 L water filling line.

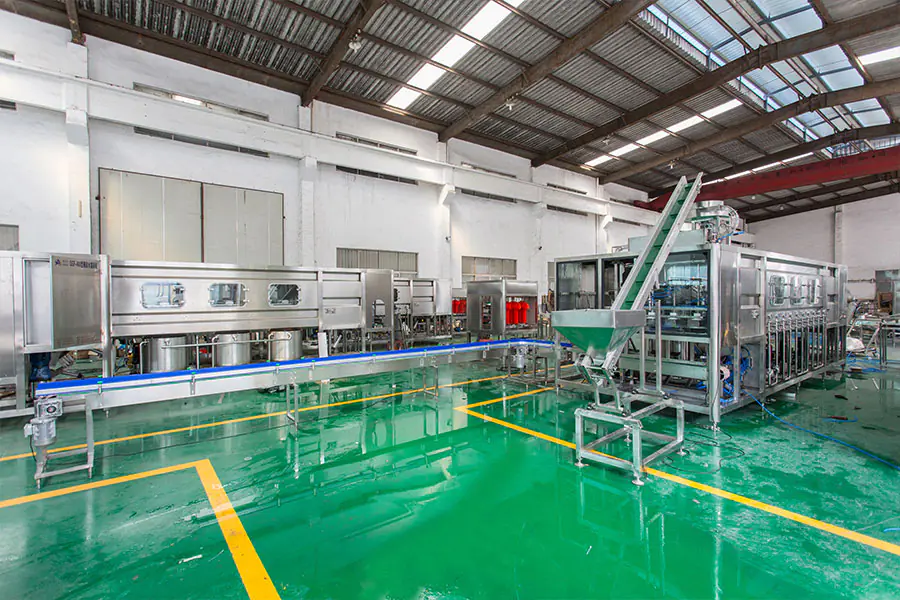

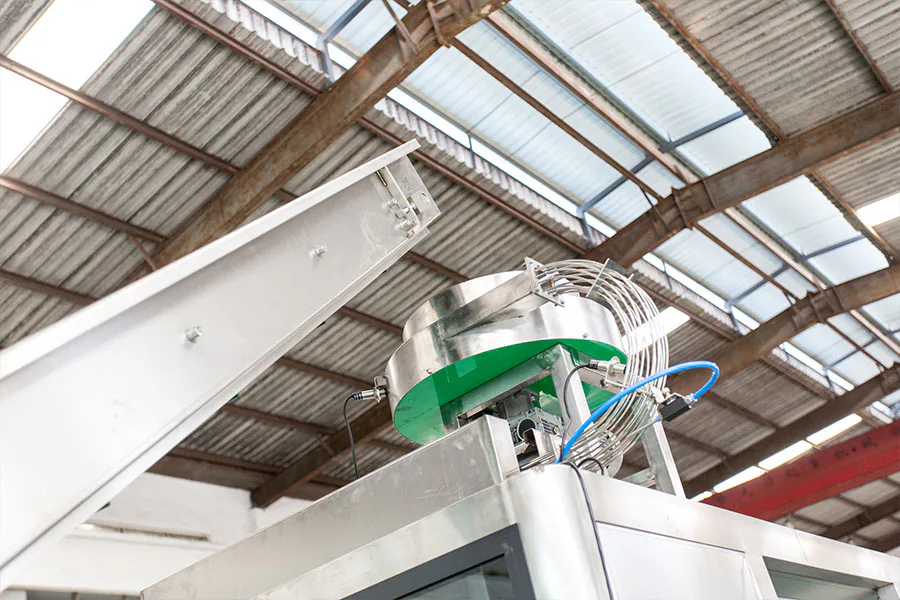

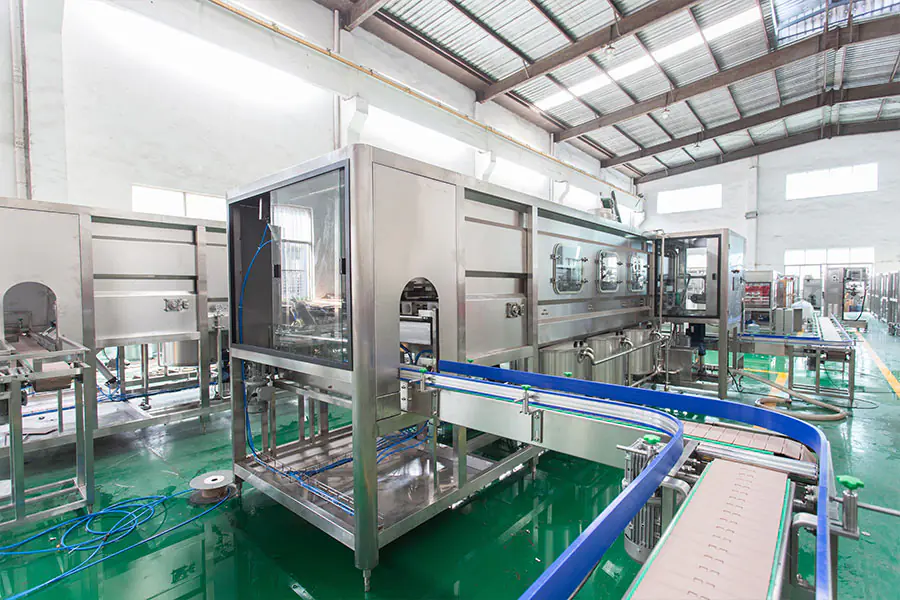

Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01How many barrels a day can a QGF-450 line fill?
About 400–450 barrels per hour, so 3,200–3,600 barrels in an 8-hour shift with the decapper, brusher and palletizer in line.
