5 Gallon Water Filling Machine
60–2,000 barrels/h
The same 5 gallon water bottling machine is sold as a 20 liter water bottle filling machine or water jar filling machine in different markets. The line can also decap, brush the outside, inspect, shrink the cap seal, count and palletize the barrels.
Quick answerA 5 gallon water filling machine washes returned barrels, fills them and presses on the caps automatically. Angel’s QGF series of barrel filling machines runs from the single-head QGF-100 (60–100 barrels per hour) to the 18-head QGF-2000 (1,800–2,000 barrels per hour) for 3 and 5 gallon (12–20 litre) barrels.
2026 catalogue · QGF seriesModels
5 Gallon Water Filling Machine models by output
Choose by rated output first. Inquire to receive the price for your bottle and output.
How it works
Inside the 5 gallon water filling machine
Washing
Several wash liquids and a high-pressure spray clean the inside of each returned barrel; a 20 liter water bottle washing machine (outside brusher) can be added in front.
Filling
Each head fills about 100–150 barrels per hour, so the number of heads sets the output of the gallon filling machine.
Capping
Caps are fed from a cap loader, sprayed clean and pressed on; a cap shrinker seals them after the light check.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
Full automatic 5 gallon water production line (QGF)
Source: Angel Machine 2026 catalogue, page 12.
Swipe to see all models →
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
|---|---|---|---|---|---|---|---|---|
| Filling heads | 1 | 2 | 3 | 4 | 6 | 12 | 15 | 18 |
| Barrel volume (gallon) | 3 & 5 | |||||||
| Barrel size (mm) | Φ270×490 | |||||||
| Capacity (barrels/h) | 60-100 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 | 1300-1500 | 1800-2000 |
| Air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6-0.8 | 0.6-0.8 |
| Air consumption (m³/min) | 0.37 | 0.6 | 0.8 | 1.0 | 1.5 | 3.0 | 3.75 | 4.5 |
| Motor power (kW) | 2.03 | 3.35 | 5.57 | 5.57 | 6.37 | 8.87 | 9.24 | 11.24 |
| Rated voltage | 380 V / 50 Hz | |||||||
| Weight (kg) | 700 | 1500 | 2100 | 2700 | 3400 | 4200 | 5000 | 6000 |
Also consider
The complete barrel plant, from decapper and brusher to cap shrinker and palletizer, is laid out on the 5 gallon water filling line page.
To bottle the same water in 330 ml–2 L PET bottles, use an XGF water bottle filling machine.

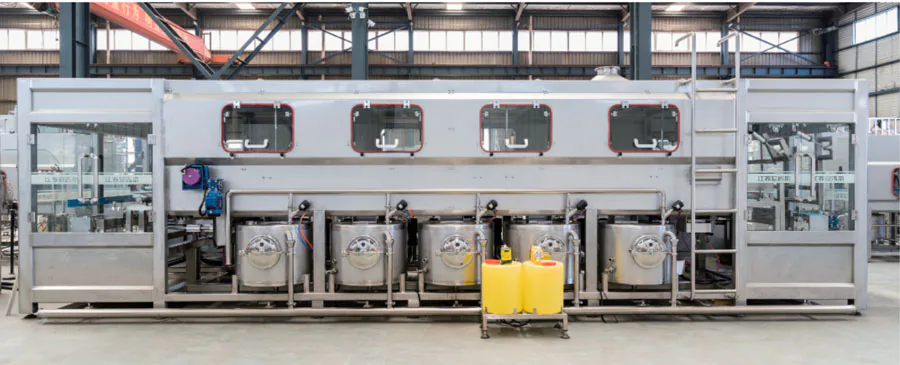

Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Which barrel sizes can the QGF machines fill?
3 and 5 gallon barrels, Φ270 × 490 mm. Other barrel sizes need confirmation.
02How many filling heads do I need?
About 100–150 barrels per hour per head: QGF-300 has 2 heads for 250–300 barrels/h, QGF-900 has 6 heads for 800–900 barrels/h.
03Do you supply the barrel blow molding machine?
Yes. The semi-automatic AGL-12 blows 10–25 L (3–5 gallon) PET barrels at 60–180 per hour.
