Carbonated Drink Filling Machine
2,000–24,000 BPH

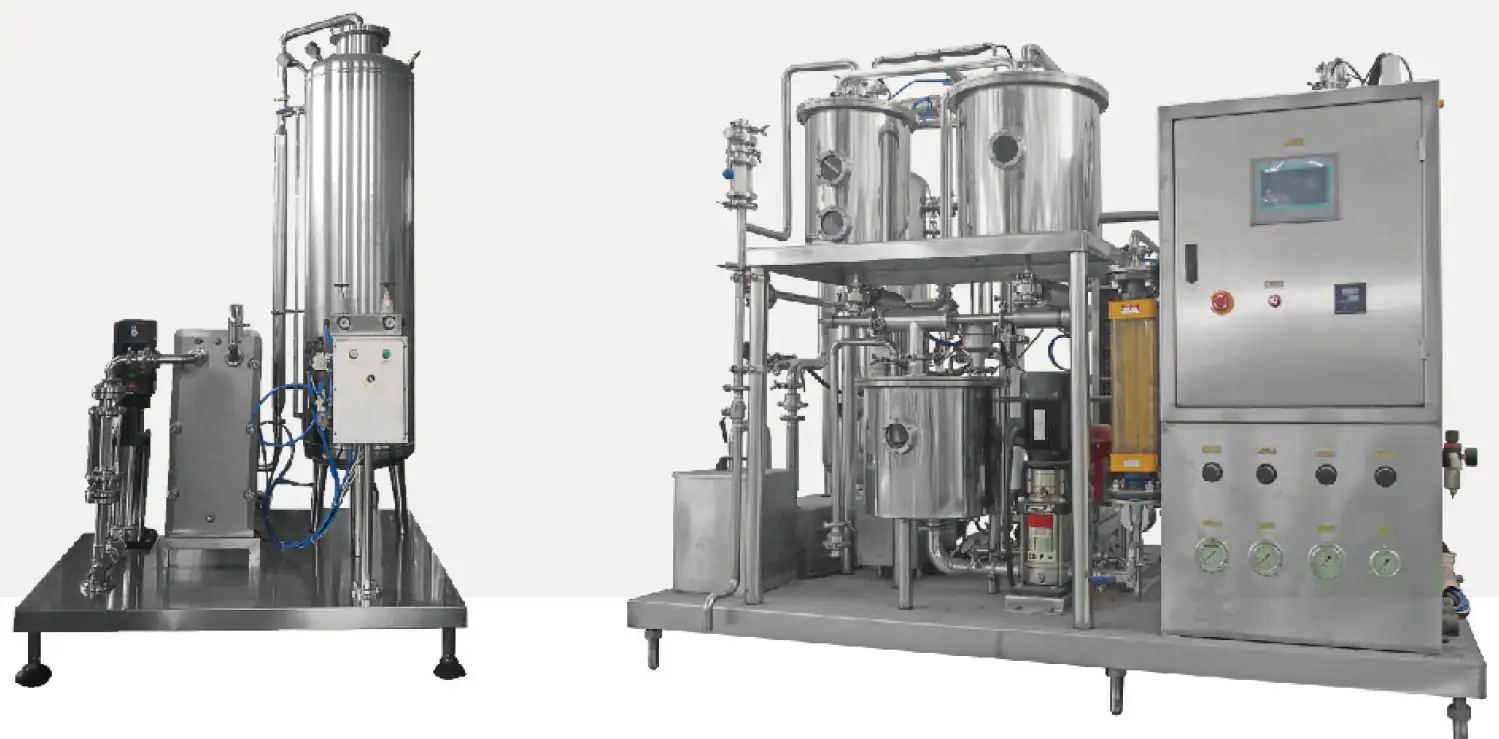

This PET bottle soda filling machine is the heart of a carbonated soft drink filling line, and the same soda bottling machine runs plain soda water: the QHS mixer blends syrup and water and carbonates it, and the isobaric filler keeps that carbonation in the bottle.
Quick answerA carbonated drink filling machine fills under counter-pressure so the drink keeps its CO₂. Angel’s DCGF carbonated soft drink filling machines rinse, isobaric-fill and cap PET bottles at 2,000 to 24,000 bottles per hour, with liquid level within ±5 mm and plastic screw or crown caps, and are used as soda filling machines for cola, lemon-lime, soda water and energy drinks.
2026 catalogue · DCGF seriesModels
Carbonated Drink Filling Machine models by output
Choose by rated output first. Inquire to receive the price for your bottle and output.
How it works
Inside the carbonated drink filling machine
Isobaric filling
The bottle is pressurised with CO₂ to the tank pressure before the valve opens, so the drink fills without foaming; filling pressure up to 0.4 MPa.
Soda water and soft drinks
The same carbonated filling machine runs as a soda water filling machine and a soft drink filling machine; the mixer sets the CO₂ level.
Neck handling
Bottles are carried by the neck through rinsing, filling and capping, so a bottle change needs only star wheels and guides.
Caps
Plastic screw caps or crown caps, with a no-bottle, no-cap interlock.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

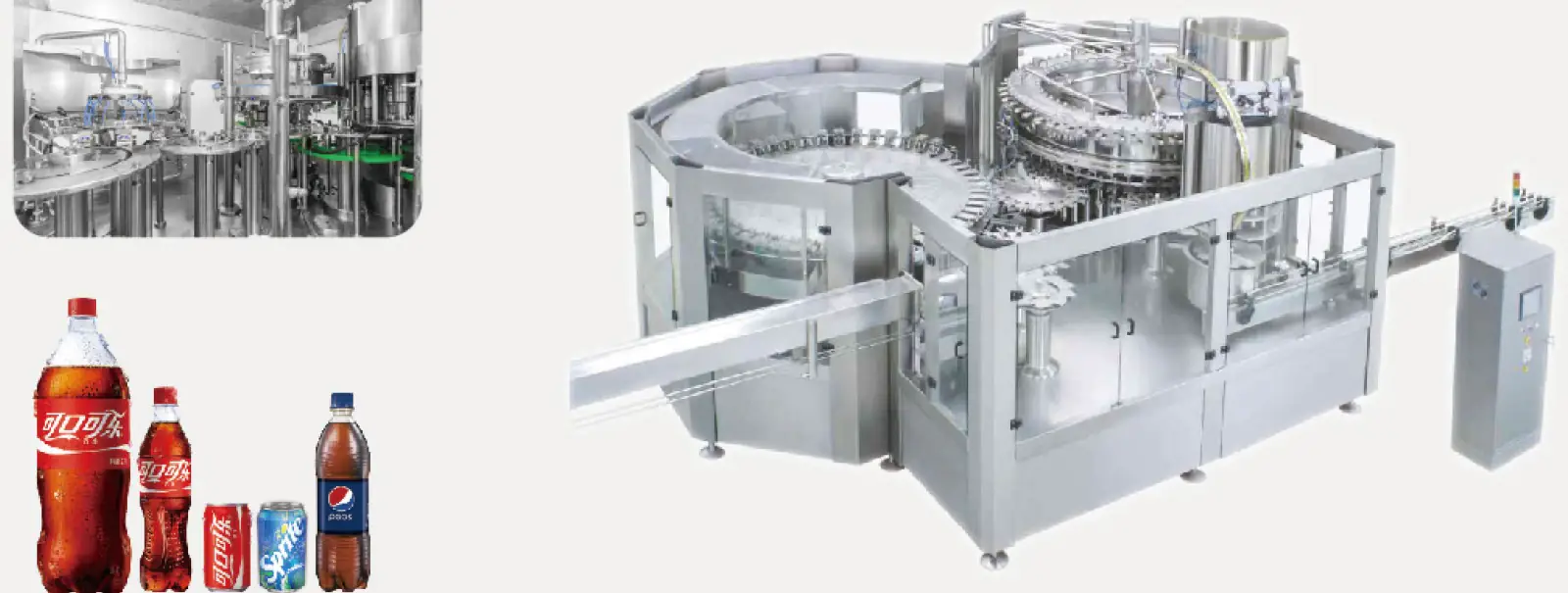

DCGF series carbonated drink 3-in-1 filling machine
Source: Angel Machine 2026 catalogue, page 13.
Swipe to see all models →
| Model | DCGF14-12-6 | DCGF18-18-6 | DCGF24-24-6 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 | DCGF60-60-15 |
|---|---|---|---|---|---|---|---|
| Production capacity (bottles/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 | 16000-20000 | 20000-24000 |
| Filling precision | ≤ ±5 mm (liquid level) | ||||||
| Filling pressure (MPa) | ≤0.4 | ||||||
| PET bottle (mm) | Diameter Φ50-Φ115, height 160-320 | ||||||
| Suitable cap | Plastic screw cap or crown cap | ||||||
| Total power (kW) | 4 | 5.2 | 6.2 | 6.2 | 7.5 | 11 | 15 |
| Weight (kg) | 2500 | 3500 | 4500 | 6000 | 7200 | 10000 | 11500 |
| Overall dimensions (mm) | 2250×1650×2250 | 2600×1965×2250 | 2980×2200×2250 | 3880×2200×2250 | 4000×2250×2500 | 5500×3500×2500 | 6500×5500×2550 |
Also consider
For the complete PET line with mixer, blow molder, labeler and shrink wrapper, see the PET bottle carbonated drink filling line.
The same drinks in aluminum cans run on the GDF soda can filling machine.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What filling pressure do the DCGF machines use?
Up to 0.4 MPa. The bottle is pressurised to tank pressure before the valve opens, so the drink does not foam.
02Can I fill carbonated drinks in cans or glass bottles?
Yes. Cans use the GDF can filler and seamer; glass bottles use the BCGF glass bottle filler with crown capping.
03Is a pasteuriser needed?
It depends on the product. The catalogue CSD line includes a pasteurizer tunnel for drinks that need it.
