Soft drink line
PET Bottle Carbonated Drink Filling Line
2,000–24,000 BPH
In this soda bottling line the DCGF carbonated soft drink filling machine runs 2,000 to 24,000 bottles per hour, the QHS mixer carbonates the product before filling, and the shrink wrapper is the soda packing machine at the end of the soft drink bottling line.
Quick answerAngel Machine provides complete PET bottle carbonated drink filling lines for cola, soda water, sparkling beverages and other carbonated soft drinks. The production line integrates beverage mixing and carbonation, PET bottle blowing, rinsing, isobaric filling, capping, labeling, date coding and final packaging. Each system can be customized according to bottle size, production capacity and packaging requirements.
2026 catalogue · DCGF seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.
Water treatment system
Prepares treated water for carbonated beverage production through filtration and purification, with the treatment process configured according to raw water quality.
See the machine

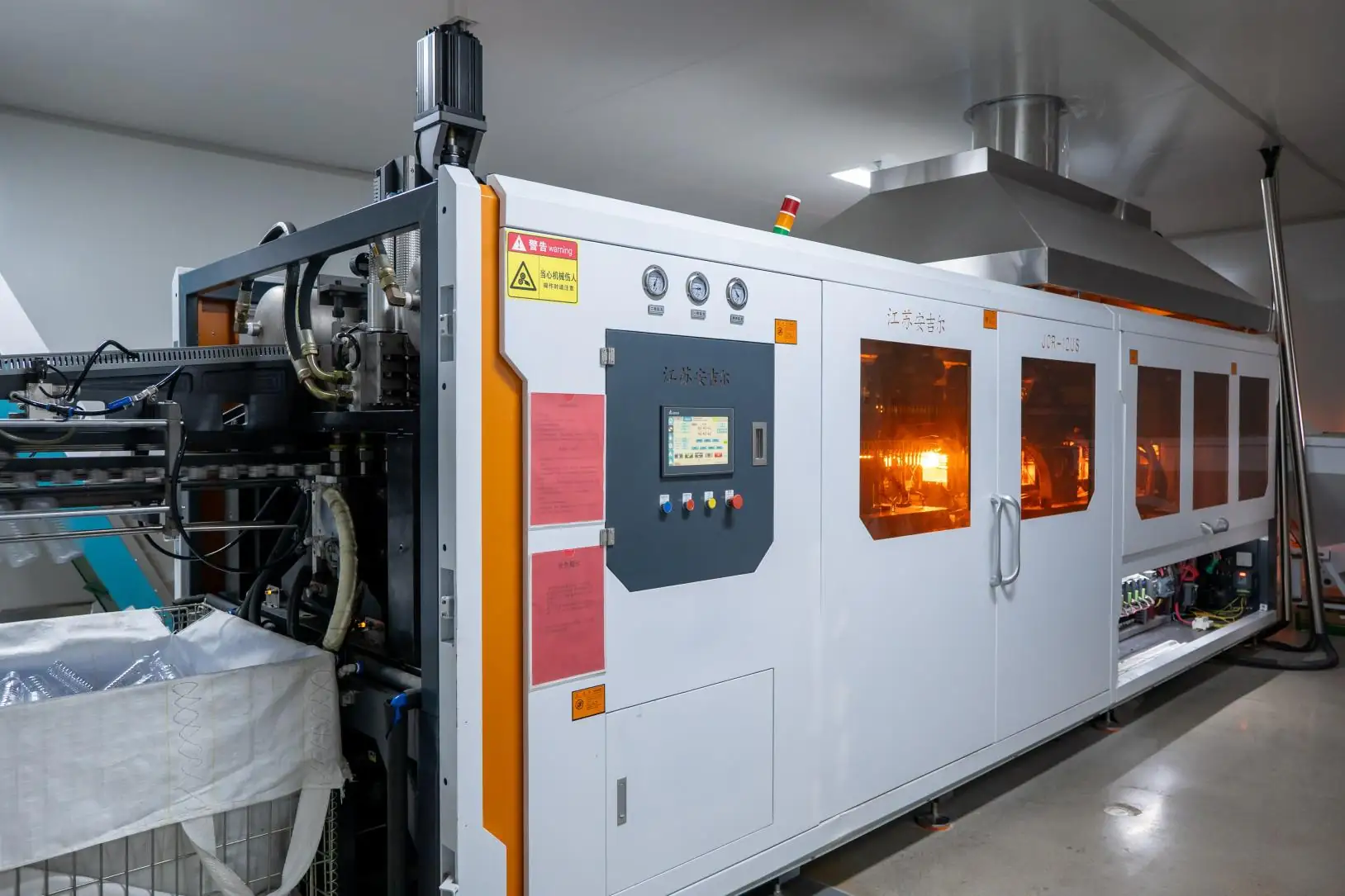

Automatic PET bottle blow molding machine
Produces PET bottles from preforms and connects with the filling line for continuous bottle supply.
See the machine

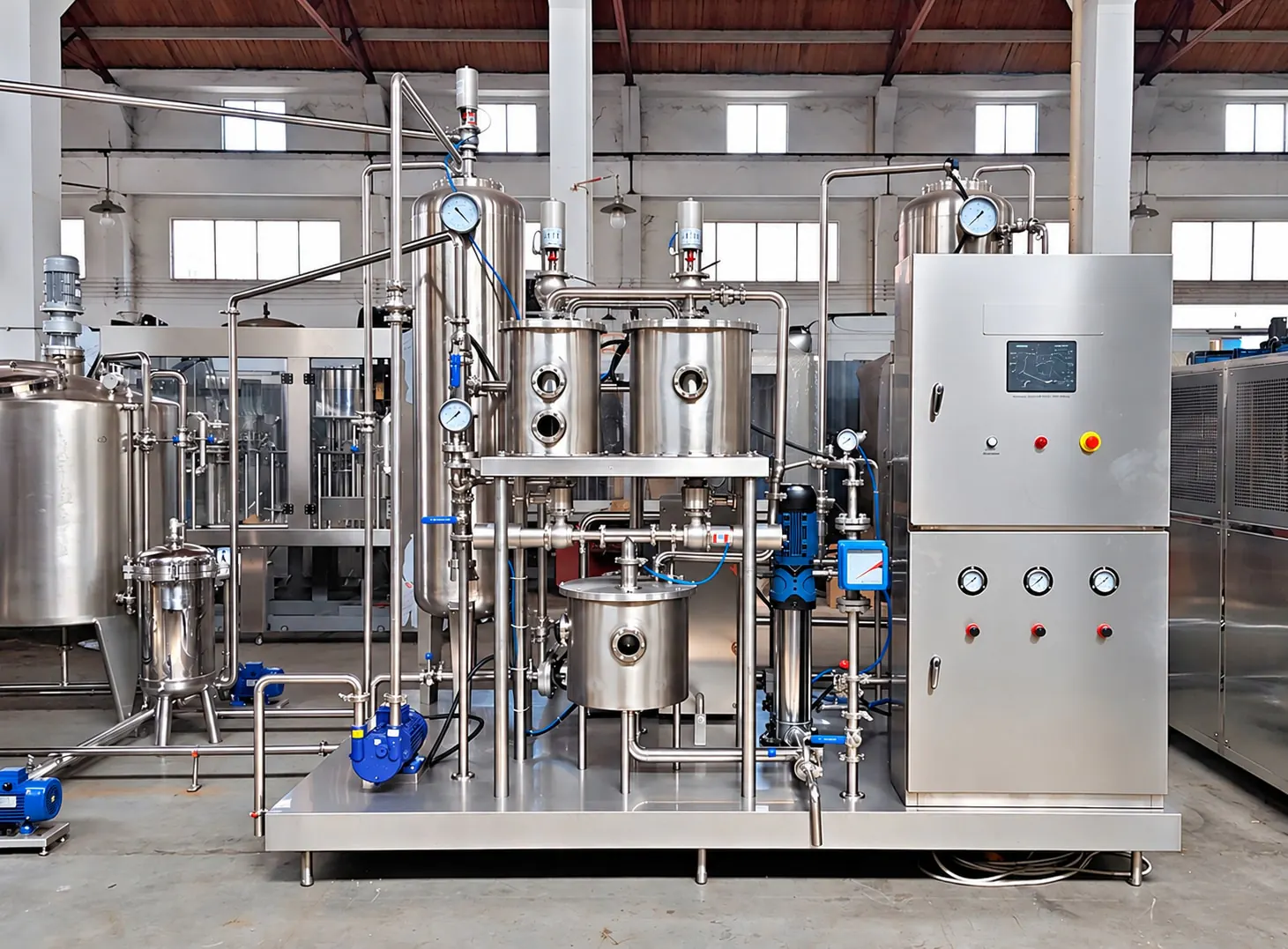

Carbonated beverage mixing system
Combines beverage ingredients and treated water, with cooling and CO₂ mixing equipment to prepare carbonated drinks before filling.
See the machine
PET bottle air conveyor system
Transfers empty PET bottles from the blow molding machine to the filling machine for smooth and continuous operation.
See the machine

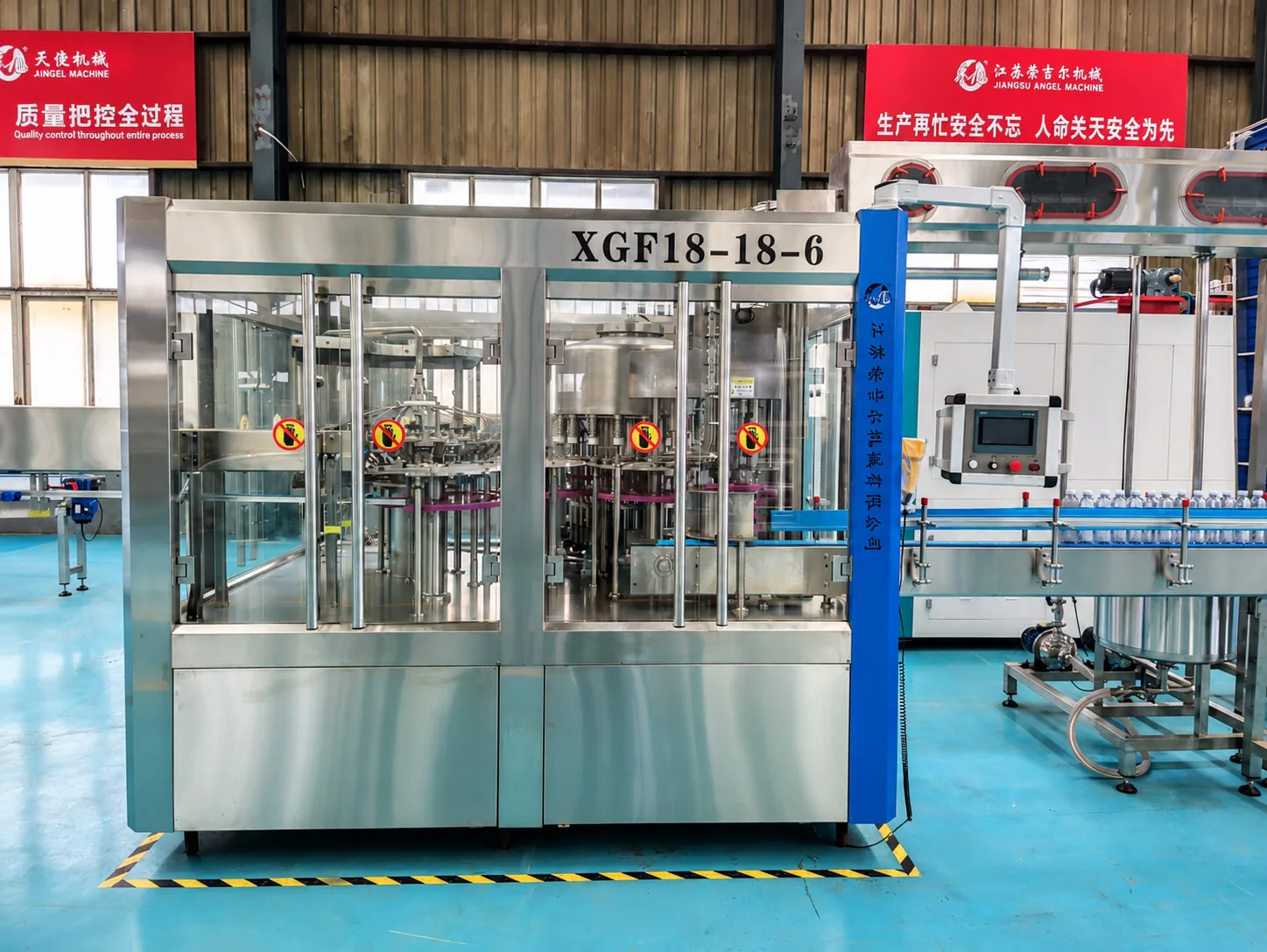

DXGF 3-in-1 carbonated drink filling machine
Integrates bottle rinsing, pressure filling and capping into one machine, designed for carbonated beverages in PET bottles.
See the machine
Bottle warming and drying system
Warms chilled filled bottles when required and removes surface moisture before labeling and date coding, helping ensure smooth downstream packaging operations.
Automatic bottle labeling machine
Supports shrink sleeve labeling, self-adhesive labeling or OPP hot-melt labeling according to bottle design and production requirements.
See the machine
Date and batch coding machine
Prints production dates, batch numbers and other traceability information on bottles or packaging.
Automatic PE film shrink wrapping machine
Groups filled bottles into multipacks and wraps them with PE shrink film for convenient handling, storage and transportation.
See the machine
Optional: automatic palletizing system. Cap feeding, cap sterilization, air compressors and conveyors are supplied as auxiliary equipment according to the final configuration.
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

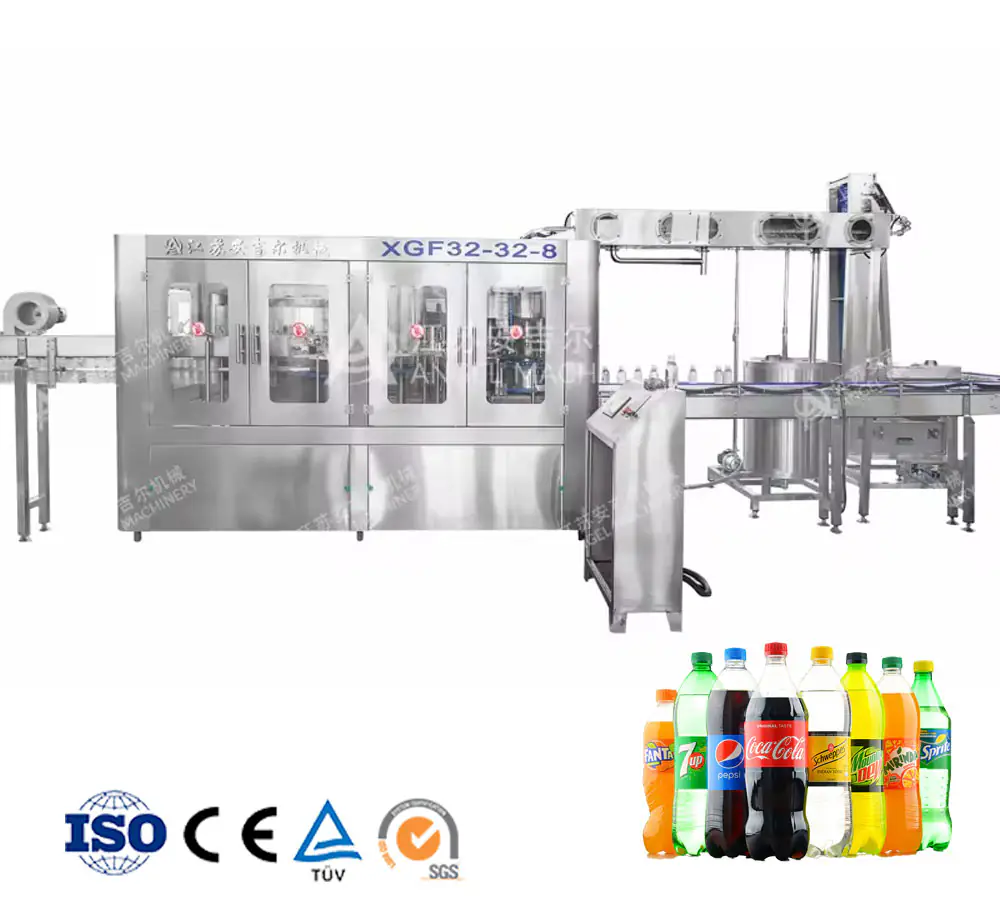

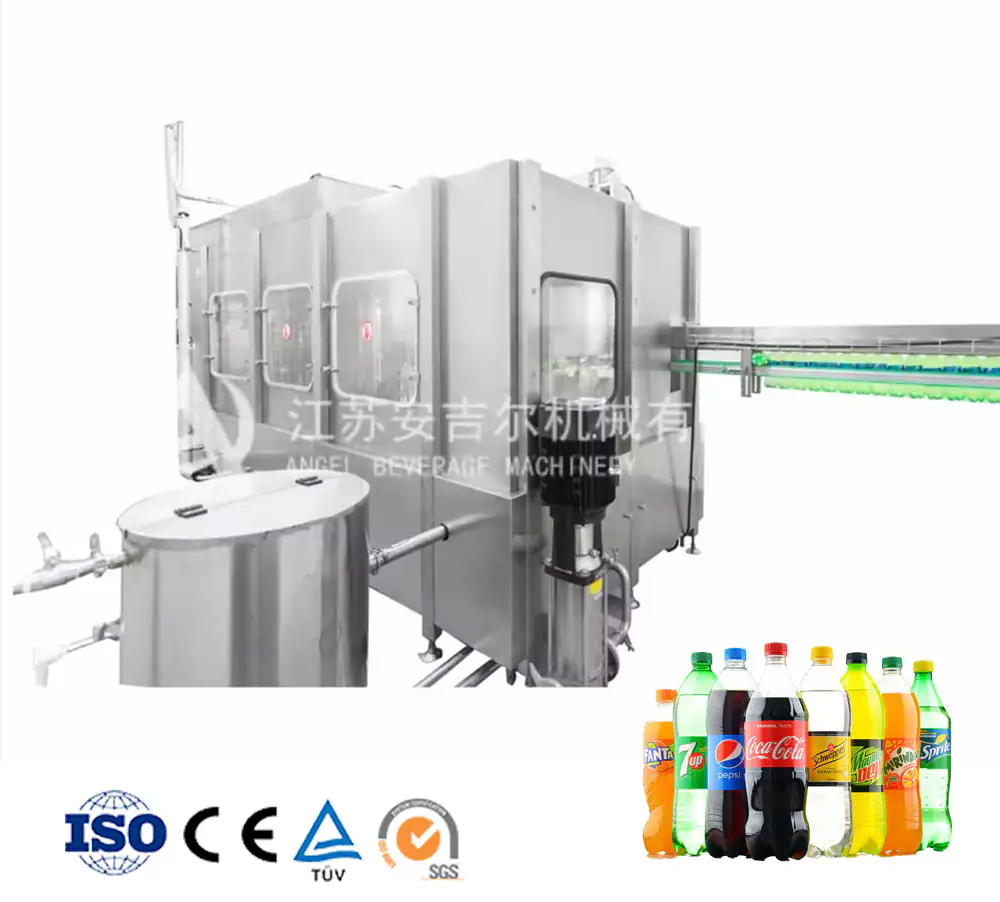

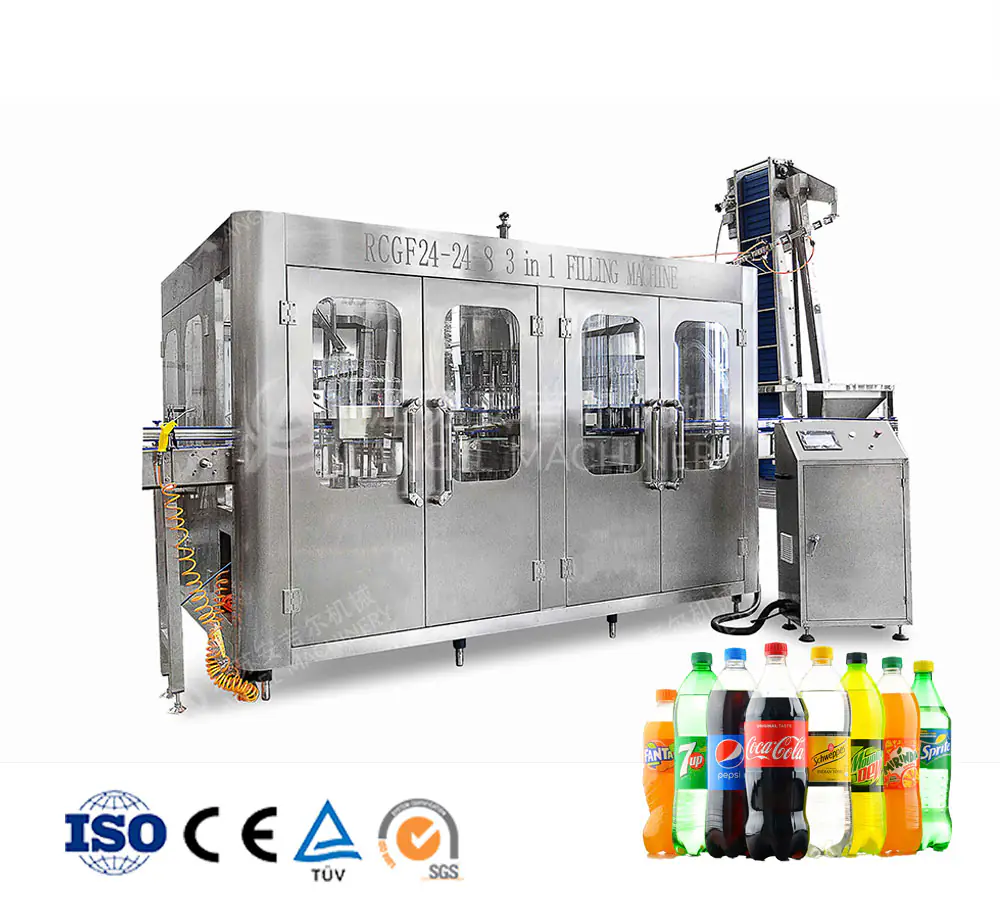

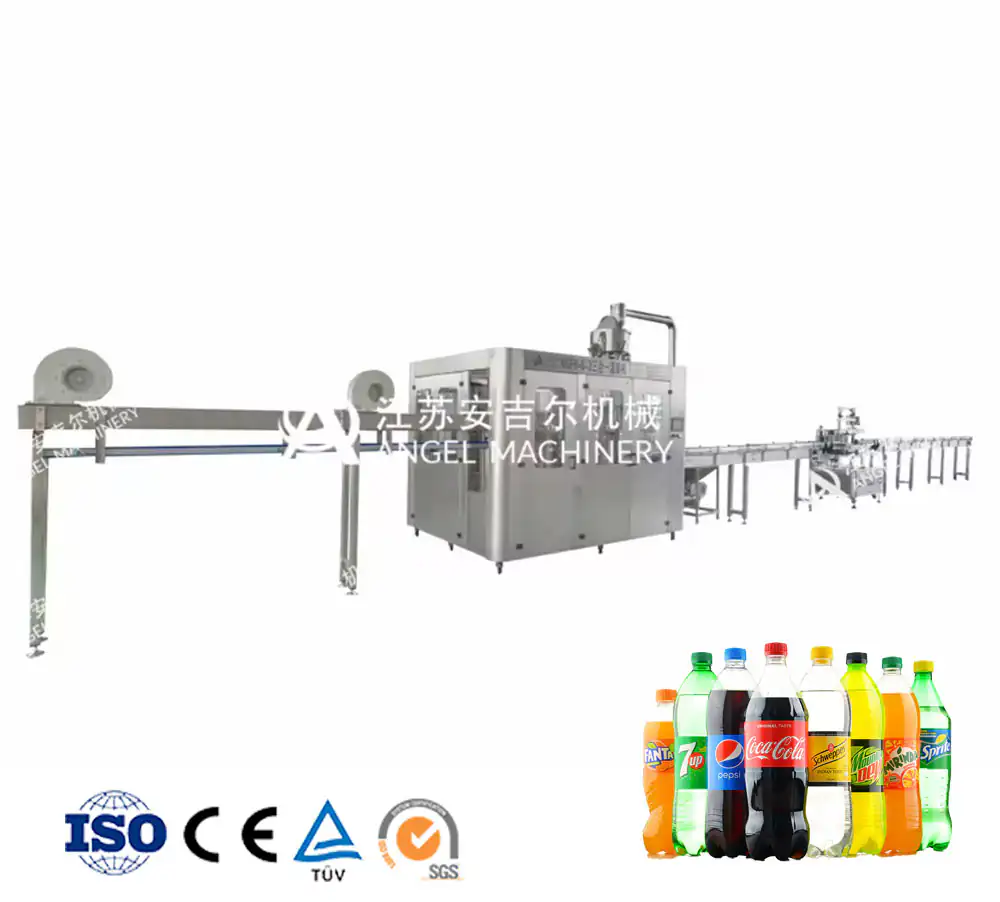

3-in-1 carbonated drink filling machine
Integrates bottle rinsing, pressure filling and capping into one machine, designed for carbonated beverages in PET bottles. Choose the model by output below.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
DCGF series carbonated drink 3-in-1 filling machine
Source: Angel Machine 2026 catalogue, page 13.
Swipe to see all models →
| Model | DCGF14-12-6 | DCGF18-18-6 | DCGF24-24-6 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 | DCGF60-60-15 |
|---|---|---|---|---|---|---|---|
| Production capacity (bottles/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 | 16000-20000 | 20000-24000 |
| Filling precision | ≤ ±5 mm (liquid level) | ||||||
| Filling pressure (MPa) | ≤0.4 | ||||||
| PET bottle (mm) | Diameter Φ50-Φ115, height 160-320 | ||||||
| Suitable cap | Plastic screw cap or crown cap | ||||||
| Total power (kW) | 4 | 5.2 | 6.2 | 6.2 | 7.5 | 11 | 15 |
| Weight (kg) | 2500 | 3500 | 4500 | 6000 | 7200 | 10000 | 11500 |
| Overall dimensions (mm) | 2250×1650×2250 | 2600×1965×2250 | 2980×2200×2250 | 3880×2200×2250 | 4000×2250×2500 | 5500×3500×2500 | 6500×5500×2550 |
Also consider
The same drinks in aluminum cans run on the can carbonated drink filling line.
In glass bottles with crown caps, they run on the glass bottle carbonated drink filling line.

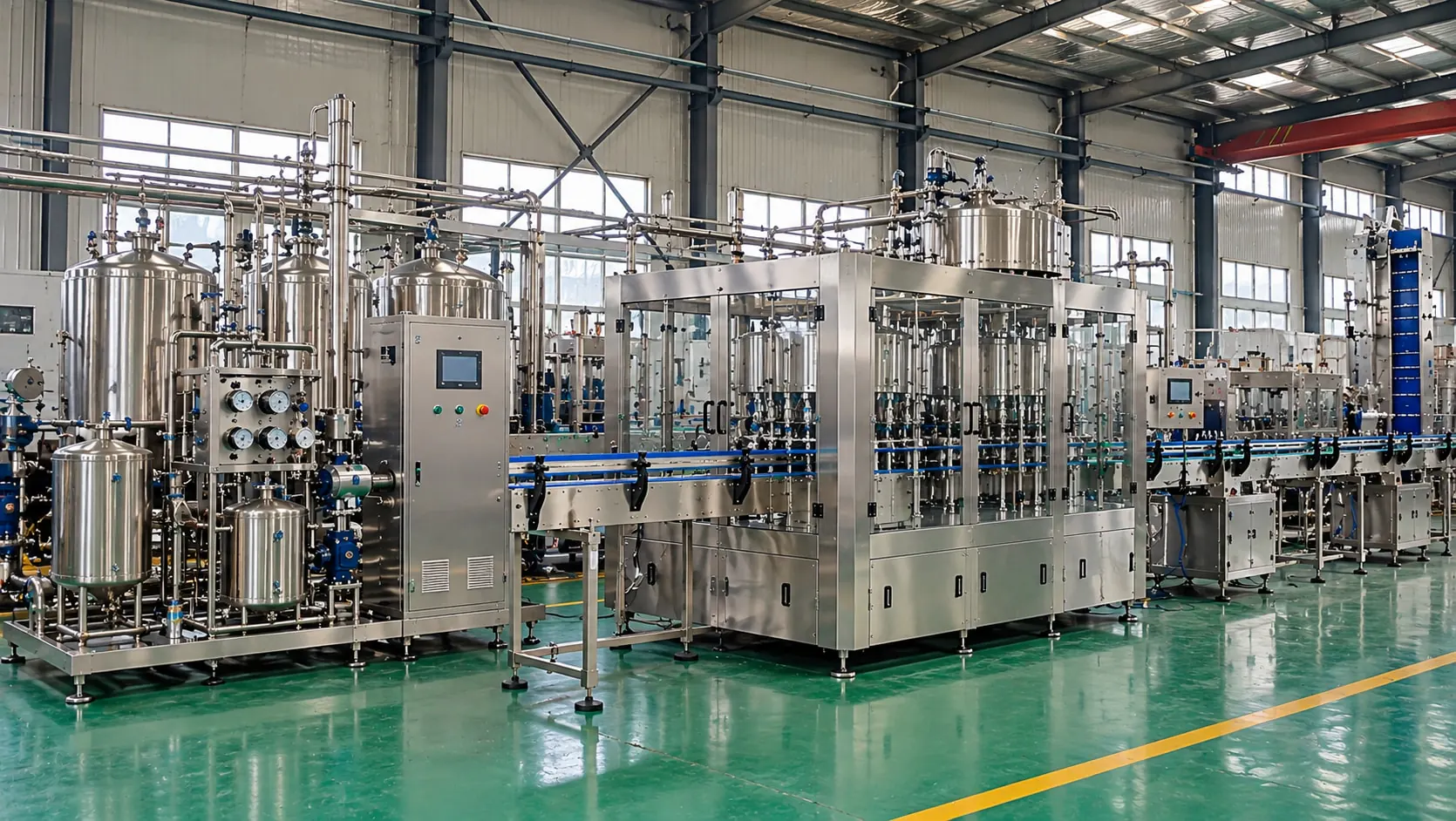

Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Does the line need a pasteurizer?
Only for products that need heat treatment after filling; most carbonated soft drinks with preservatives do not. The tunnel is optional in the layout.
