Palletizer Machine for Beverage Lines
Low level palletizer machine for cartons and shrink packs, PLC and touch screen, side-box infeed, more than 30% lower cost than robot palletizing.
Bottle Packing Machines: Labeling, Shrink Wrapping and Palletizing
Automatic Shrink Wrapping Machine for Bottles
20–25 packs/min
The most common water bottle packing machine: packs come out tightly bound and can be opened easily by hand. The same bottle packing machine is used as a shrink bundling machine for soft drink and juice bottles.
- Speed
- 20–25 packs/min (automatic)
- Bottles
- Φ60–90 mm, up to 330 mm high
- Film
- PE, 0.03–0.10 mm, up to 600 mm wide
- Power
- 28 kW
Quick answerAn automatic shrink wrapping machine groups PET bottles, wraps them in PE film and shrinks the film in a heat tunnel. Angel’s linear machine runs 20–25 packs per minute for bottles 60–90 mm in diameter; the semi-automatic BZJ-5038B handles up to 8 packs per minute.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

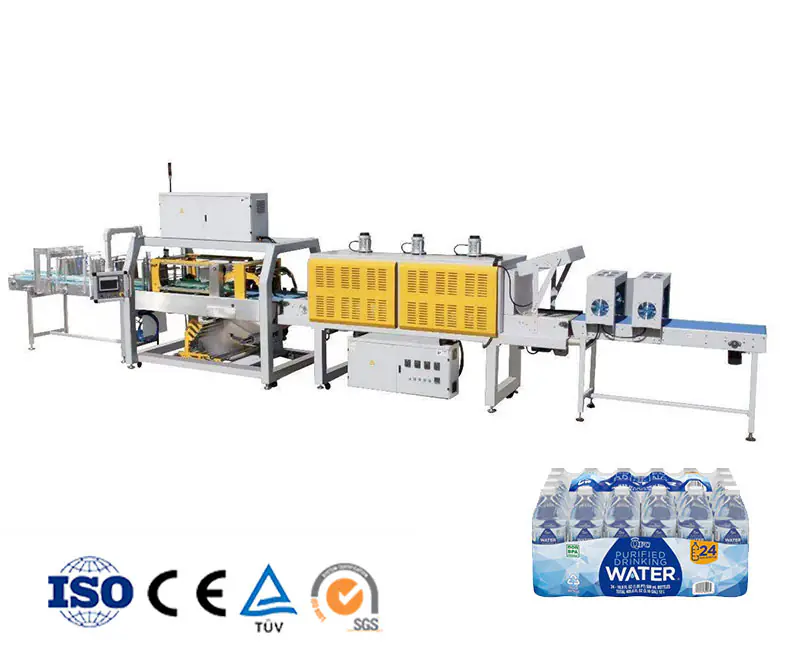

Linear type automatic PE film shrink wrapping machine
Source: Angel Machine 2026 catalogue, page 26.
| Power (kW) | 28 |
|---|---|
| Air consumption (m³/h) | 25, ≥0.6 MPa |
| Speed (packs/min) | 20-25 |
| Bottle diameter (mm) | Φ60-90, height ≤330 |
| PE film (mm) | Thickness 0.03-0.10, width ≤600 |
| Weight (t) | 1.5 |
| Overall dimensions (mm) | L12000×W1100×H2100 |
| Max. pack size (mm) | L2400×W650×H450 |

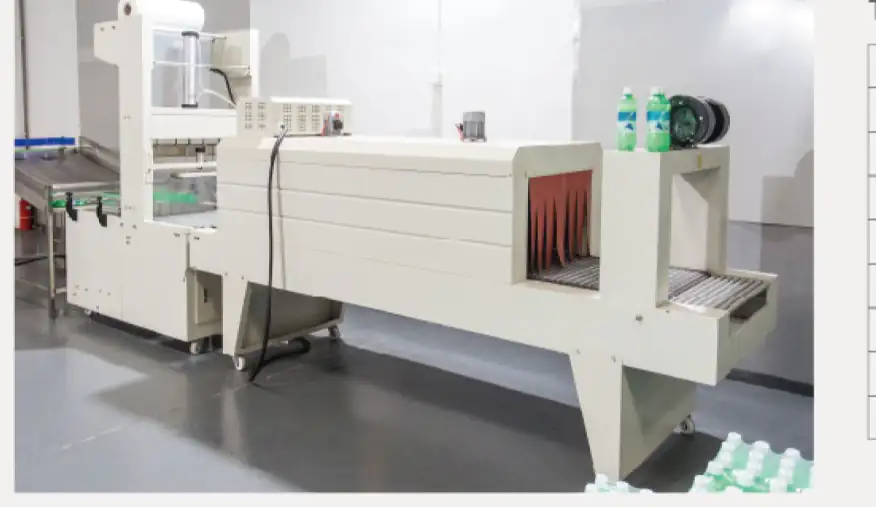

Semi-automatic PE film shrink wrapping machine
Source: Angel Machine 2026 catalogue, page 26.
| Model | BZJ-5038B |
|---|---|
| Max. pack size (mm) | L450×W270×H330 |
| Min. pack size (mm) | L250×W60×H140 |
| Power | 220-240 V, 50-60 Hz, 1.6 kW |
| Packing speed (packs/min) | 0-8 |
| Pusher load (kg) | 20 |
| Film thickness (mm) | 0.03-0.25 |
| Overall dimensions (mm) | L1020×W830×H1980 |
| Weight (kg) | 170 |
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01How many bottles per pack?
Typical patterns are 3×4 and 4×6 for 500 ml bottles; the pack pattern is set on the machine within the 600 mm film width.
