Large bottle line

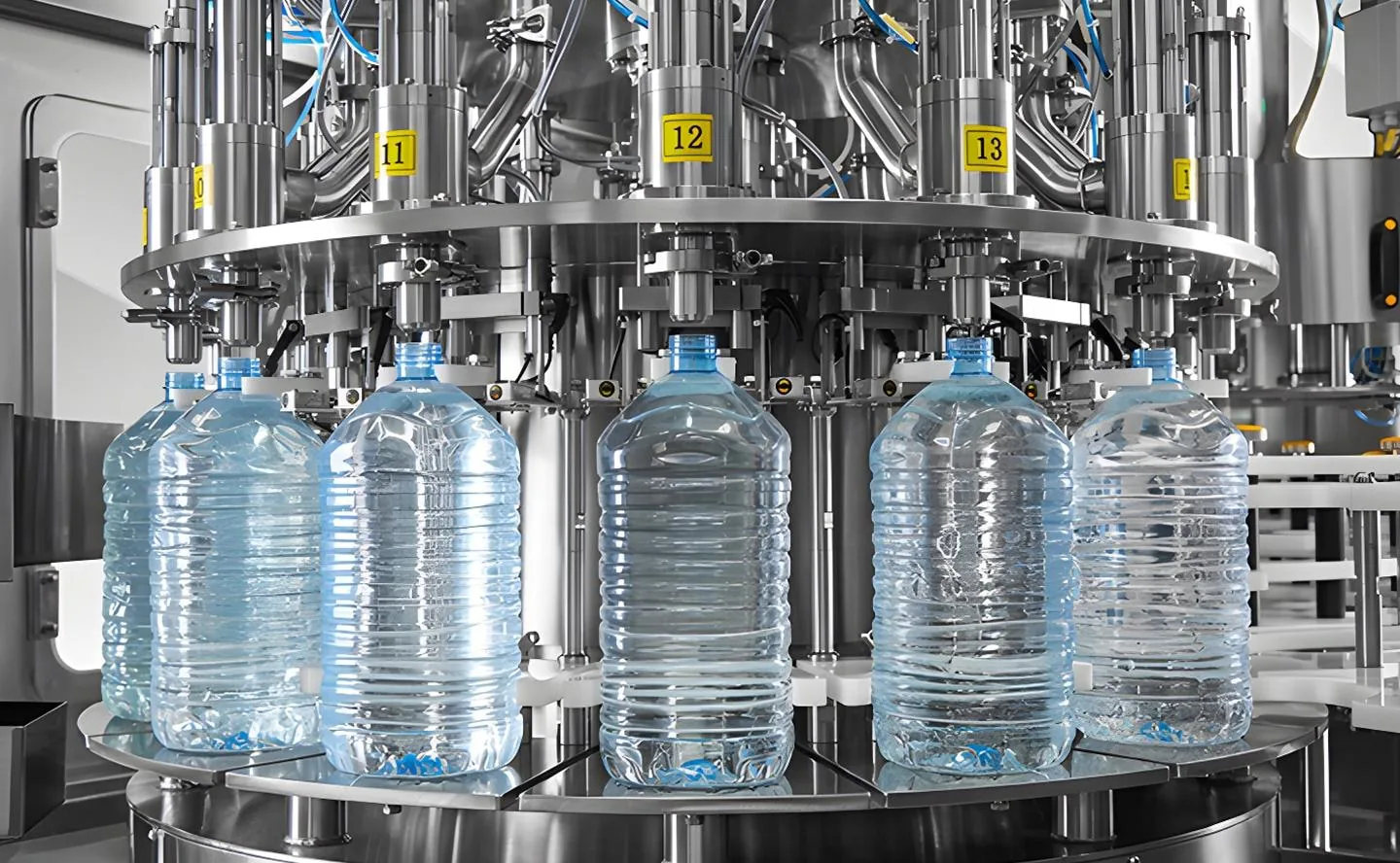

3–10 L Bottle Water Filling Line
700–1,200 bottles/h (5 L)
Linear lines are simple to run and suit moderate outputs as a 5 litre water filling machine; the CGF 3-in-1 rotary machine has an automatic cap loader and adjustable magnetic capping torque.
Quick answerA 3–10 L water filling line bottles large PET containers of drinking water. Angel offers the XGF linear filling machine, rated 700–1,200 bottles per hour on 5 L bottles, and the CGF rotary 3-in-1 large bottle filling machine with gravity filling and magnetic capping, plus water treatment, blowing and packing.
2026 catalogue · XGF-LINEAR-5L seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.

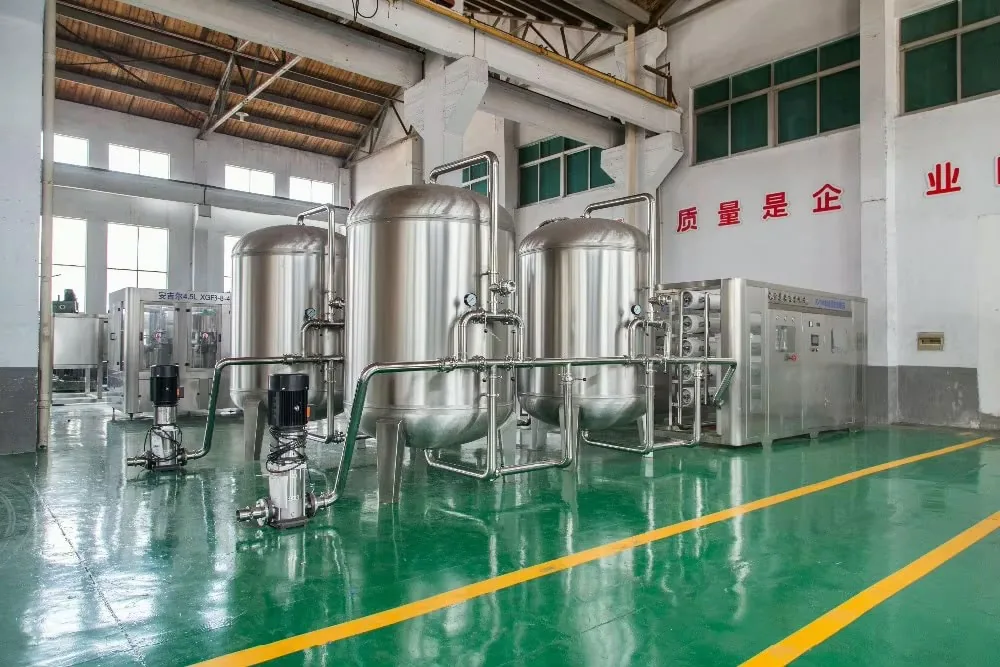

Water treatment system
Purifies raw water through a treatment process configured according to the water source and required water quality.
See the machine

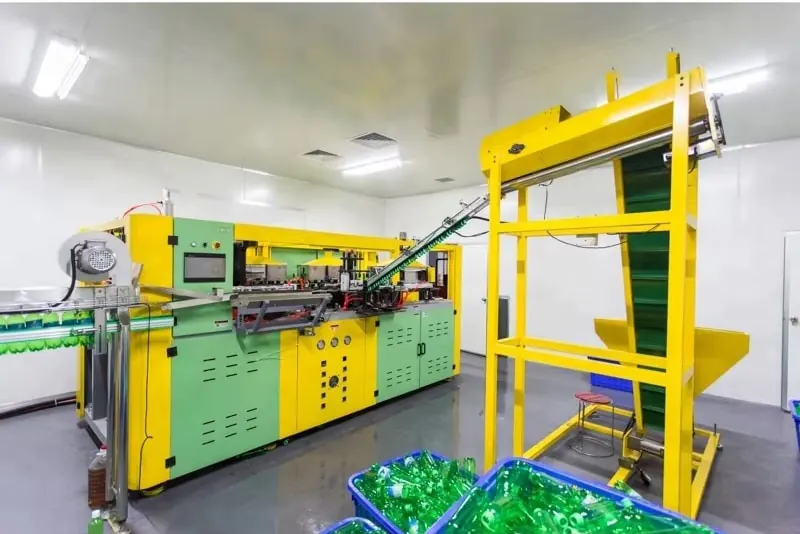

PET bottle blowing machine
Transforms PET preforms into bottles of the required shape and size, ready for filling.
See the machine

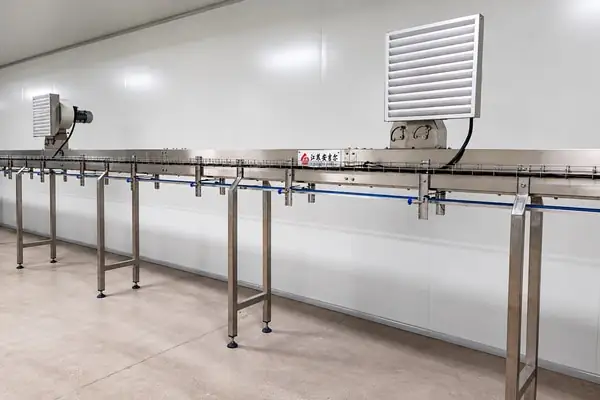

Air conveyor system
The air conveyor system uses high-speed airflow to transport empty PET bottles smoothly and efficiently from the bottle blowing machine to the filling machine, ensuring stable and continuous production.
See the machine

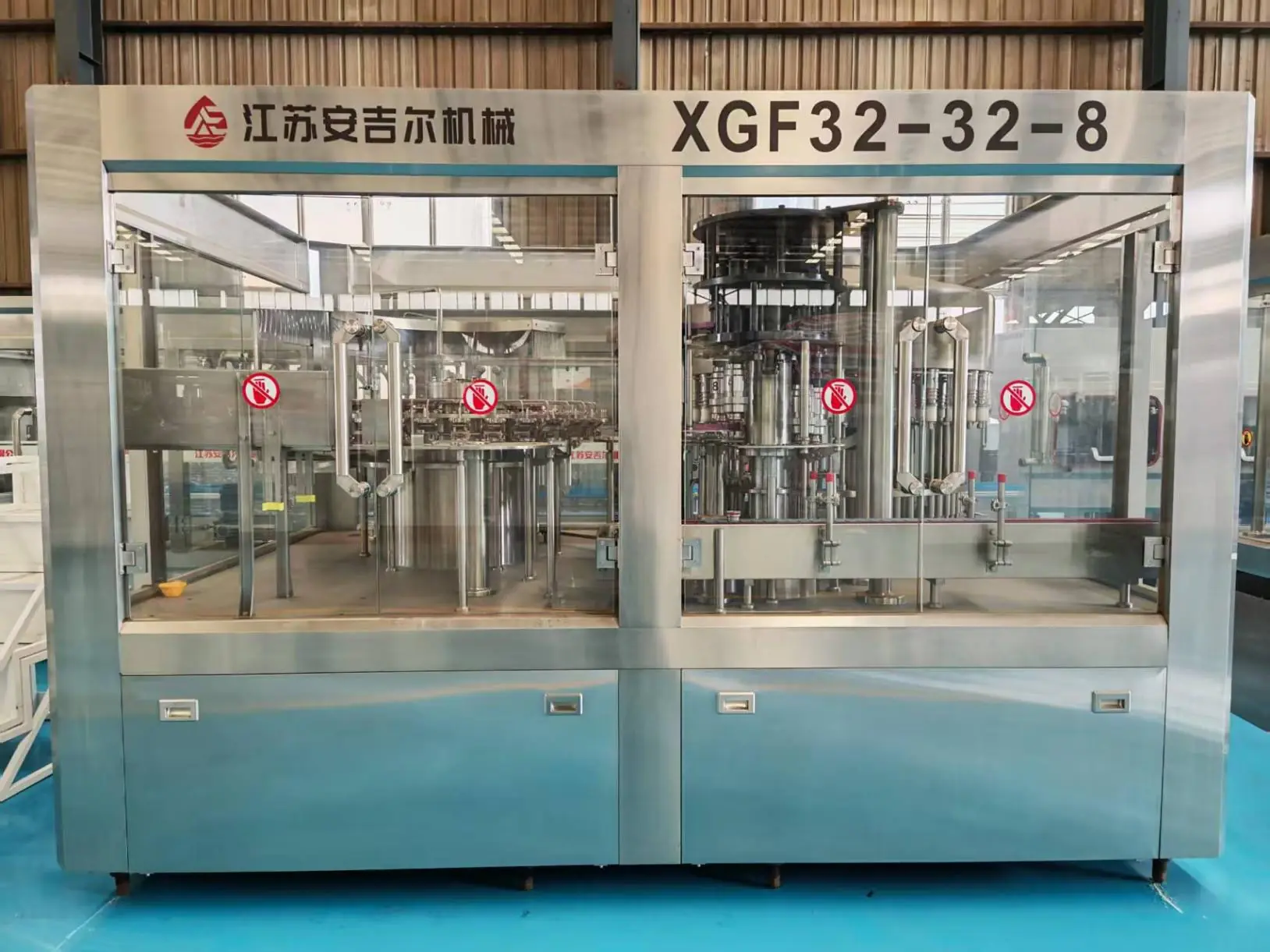

Water bottle filling machine
Integrates bottle rinsing, water filling and capping for efficient and hygienic bottled water production.
See the machine

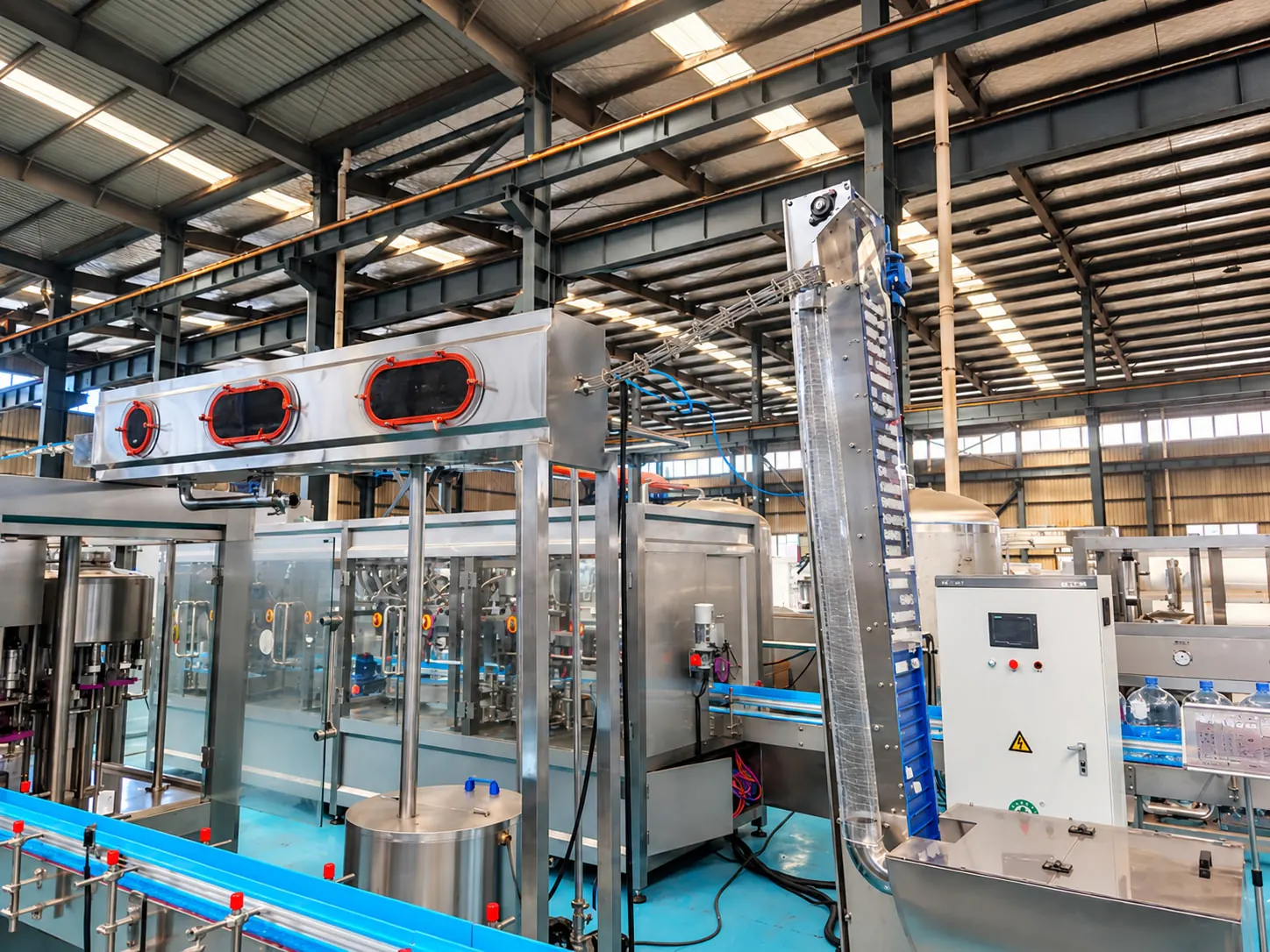

Water rinsing, filling and capping machine
This 3-in-1 machine integrates bottle rinsing, water filling and capping into one automated system, ensuring hygienic operation, high efficiency and reliable performance for PET bottled water production.
See the machine
Labeling machine
Applies labels to finished bottles. OPP hot-melt, shrink sleeve and self-adhesive labeling options are available.
See the machine
Laser coding machine
Marks production dates, batch numbers and other traceability information on bottles or packaging.

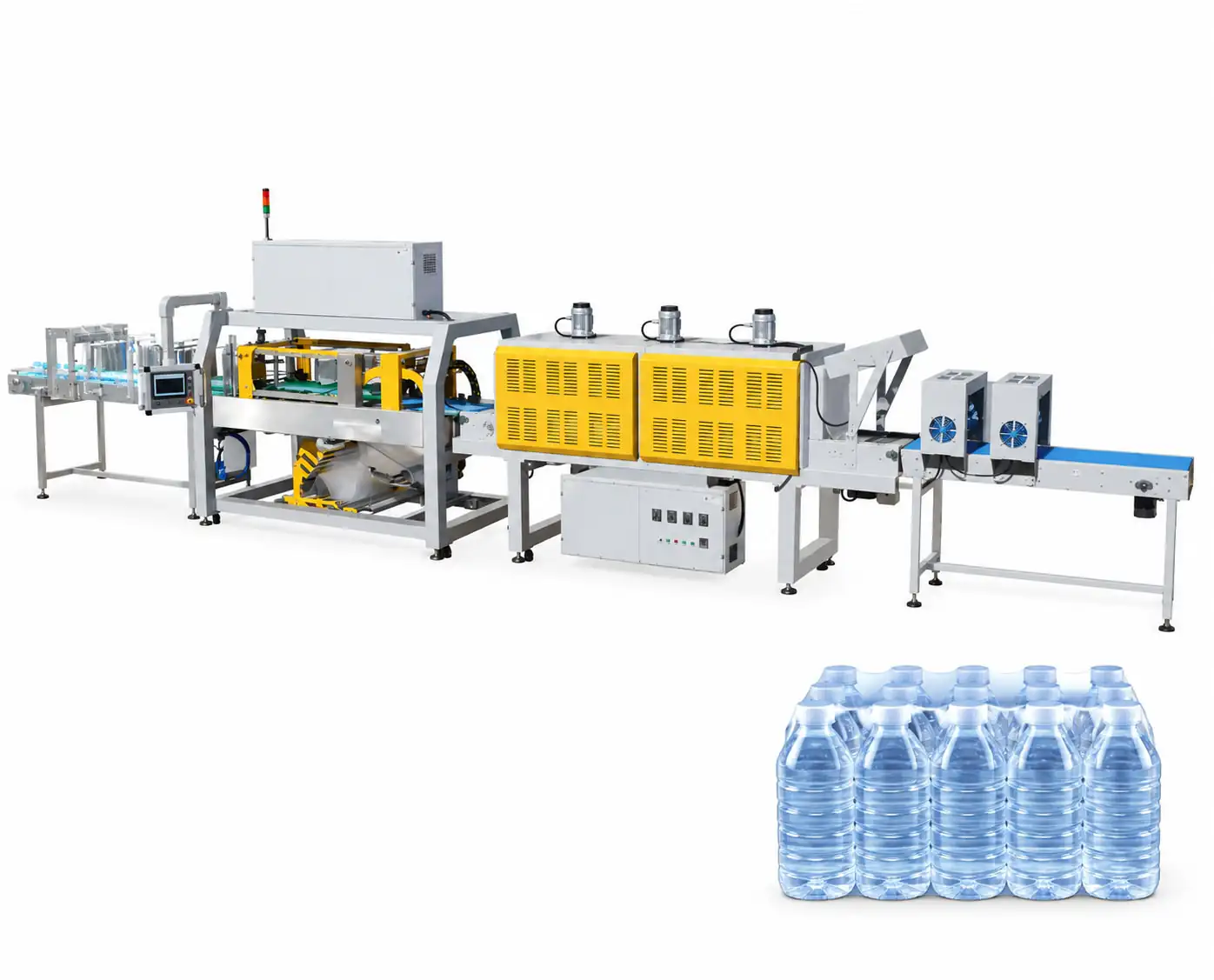

PE film shrink wrapping machine
Groups filled bottles and wraps them with PE shrink film for convenient handling, storage and transportation.
See the machine
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

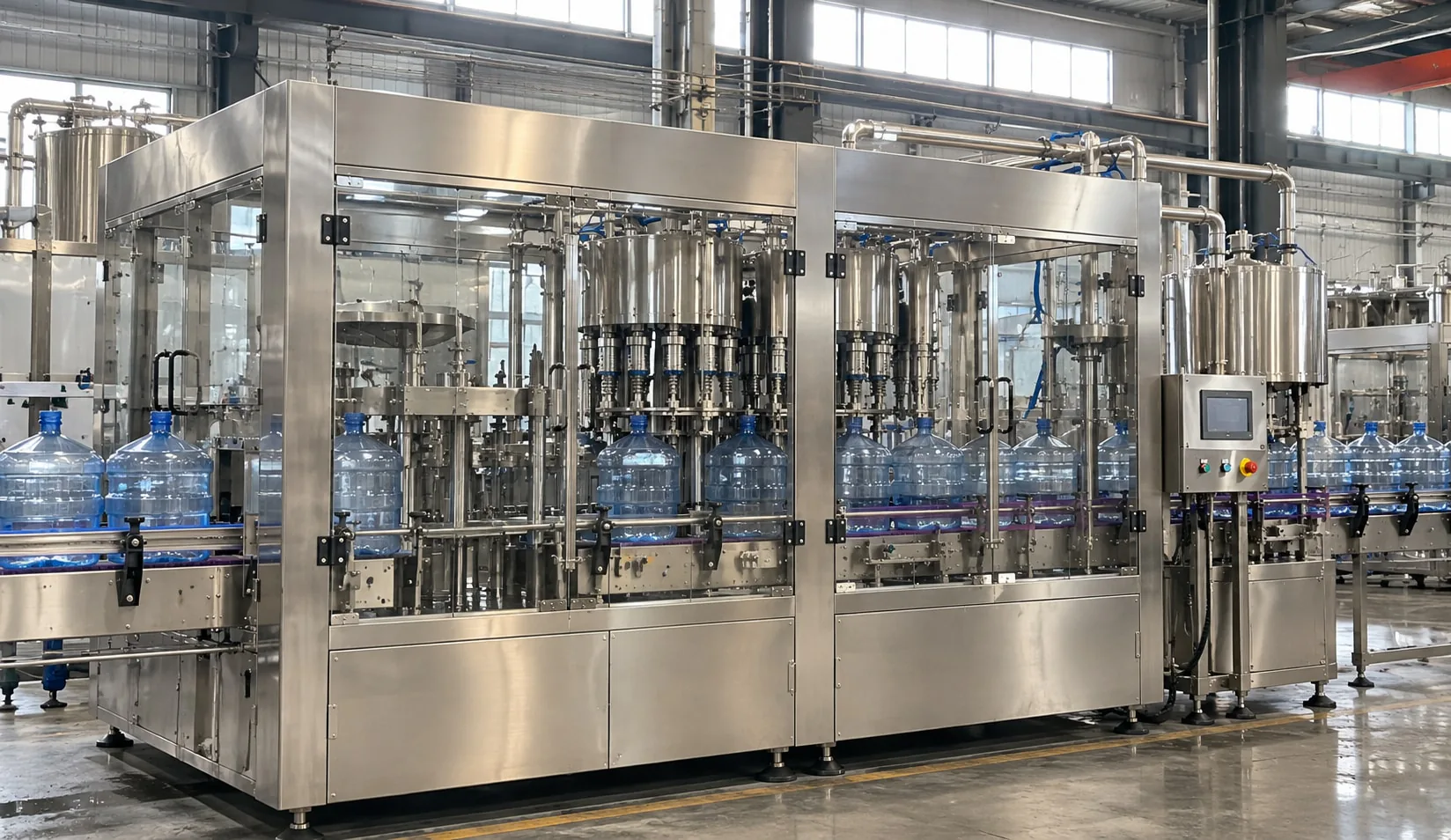

3–10 L bottle rinsing, filling and capping machine
The XGF linear line is rated 700–1,200 bottles per hour on 5 L bottles; the CGF rotary 3-in-1 adds an automatic cap loader and adjustable magnetic capping torque. Both are listed in the catalogue tables on this page.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
3-10 L bottle washing, filling and capping linear line
Source: Angel Machine 2026 catalogue, page 9.
Swipe to see all models →
| Model | XGF4-4-1 | XGF6-6-1 | XGF8-8-3 |
|---|---|---|---|
| Capacity (5 L bottles/h) | 700 | 1000 | 1200 |
| Washing heads | 4 | 6 | 8 |
| Filling heads | 4 | 6 | 8 |
| Capping heads | 1 | 1 | 3 |
| Power (kW) | 2.5 | 4.5 | 5.5 |
| Dimensions (mm) | 2800×1100×1800 | 3500×1100×1800 | 4200×1100×1800 |
3-10 L bottle washing-filling-capping 3-in-1 (CGF)
Source: Angel Machine 2026 catalogue, page 10.
Swipe to see all models →
| Model | CGF 8-8-3 | CGF 12-12-4 | CGF 18-18-6 | CGF 24-24-8 |
|---|---|---|---|---|
| Production capacity (bottles/h, as printed) | 1000 | 1000-1500 | 1500-2000 | 2500-3000 |
| Total power (kW) | 2.2 | 3 | 3.5 | 4 |
Note: The catalogue labels this capacity row '(500ml) (b/h)' although the machine is for 3-10 L bottles; container size for the stated capacity to be confirmed by Angel.
Also consider
For 330 ml–2 L bottles, the PET water bottle filling and packing line uses the rotary XGF monoblock at up to 24,000 bottles per hour.
The CGF 3-in-1 also fills cooking oil on the edible oil filling line.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Can the same line fill oil or alcohol in 3–10 L bottles?
The CGF 3-in-1 is used for water, alcoholic drinks and oil; oil needs suitable valves and is confirmed per project.
