20,000 L/h
20000 L/H RO Water Treatment Line
20,000 litres per hour RO water treatment line: sand and carbon filters, softener, precision filter, reverse osmosis, UV and ozone for a bottled water plant.
Pure water
Water Treatment System for Bottled Water
RO, UV, ozone, UF
Reverse osmosis removes more than 97% of dissolved salts and over 99% of colloids, micro-organisms, particles and organic matter. For a mineral water plant, ultrafiltration keeps the minerals instead.
Quick answerA water treatment system turns raw water into purified or mineral water for bottling. Angel’s systems combine quartz sand and activated carbon filters, a sodium-ion softener, precision filtration, reverse osmosis, UV and ozone sterilisation, chosen from your raw-water analysis and sized to the RO water filling machine after them.
Models
Water Treatment System for Bottled Water models by output
Choose by rated output first. Inquire to receive the price for your bottle and output.
Process

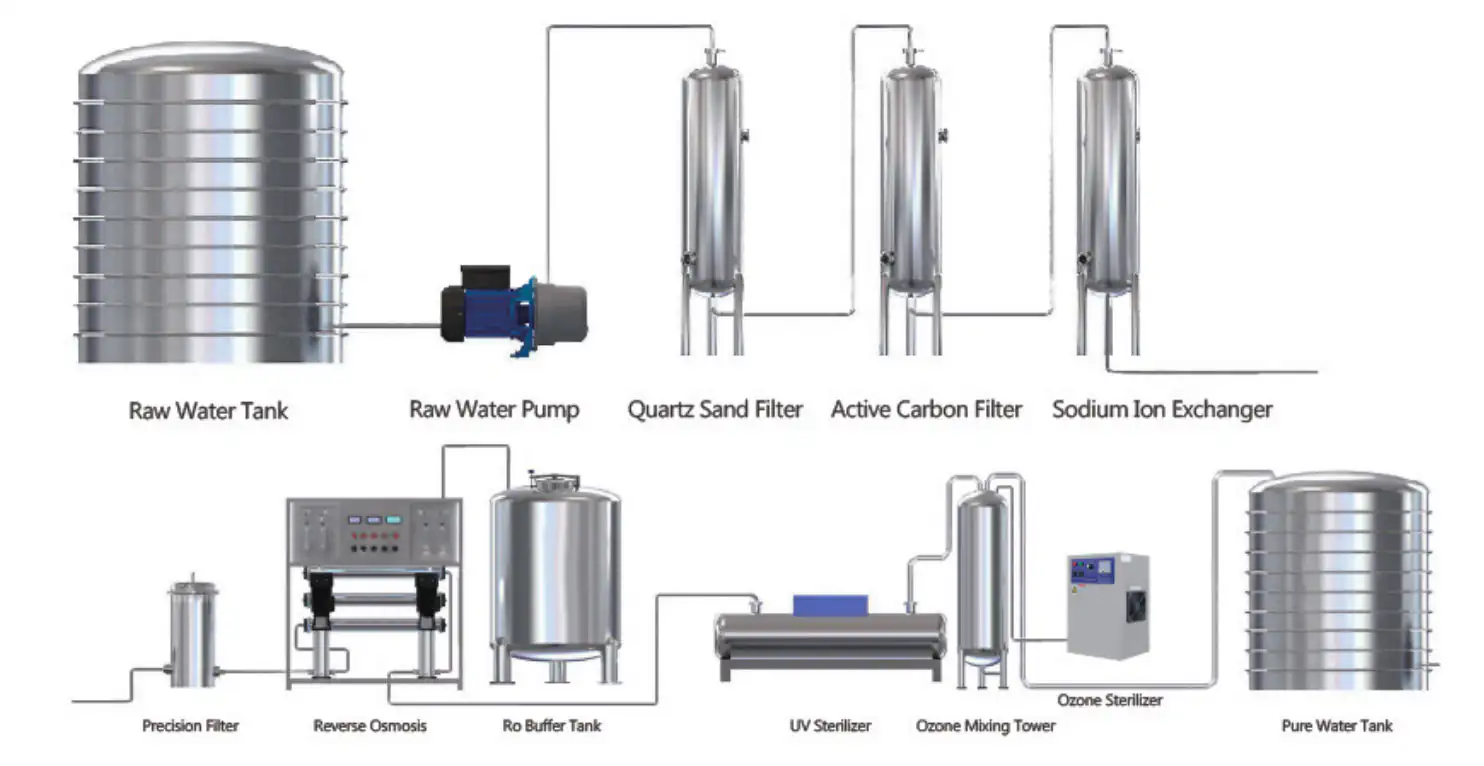

Treatment steps in order
Each stage is chosen from your raw-water analysis; not every plant needs all of them.
Quartz sand filter
Removes suspended solids and particles, reducing turbidity.
Activated carbon filter
Removes colour, odour and many organic substances.
Sodium-ion exchanger
Removes calcium and magnesium ions to soften the water.
Precision filter
Keeps particles entering the RO membranes below 0.1 µm.
Reverse osmosis
Water purification through semi-permeable membranes under pressure; low energy use and no chemicals.
UV sterilizer
Kills bacteria that pass the RO stage.
Ozone sterilizer
Kills bacteria that survive UV and protects the pure water tank.
Hollow-fibre ultrafilter
Optional for mineral water: separates macromolecules and colloids while keeping minerals.
Also consider
Treated water goes straight to the XGF water filling machine for 330 ml–2 L PET bottles.
For returnable barrels, the same treatment feeds a 5 gallon water filling line.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What capacity do I need?
Size treatment above the filler’s water use, allowing for rinse water and CIP. A 20,000 L/h line is shown on the product page.
02Purified or mineral water?
Purified water uses RO. Mineral water usually uses ultrafiltration to keep minerals; the choice follows your raw-water report and local standard.
Related
Complete lines and related machines
The complete line built around this filler, and the machines for related drinks.
