1,000–9,000 cans/h
Beverage Can Filling and Seaming Machine
Beverage can filling and seaming machines for beer, cola and sparkling drinks: GDF rotary aluminum can fillers to 9,000 cans/h and isobaric linear lines.
Cans
Beverage Can Filling Machine
1,000–9,000 cans/h
Each automatic can filling machine is sold as a can filling and seaming machine pair, and the aluminum can filling machine is built to your can and lid. Linear lines use SUS304 frames and SUS316 product-contact parts, with valves designed for easy cleaning. Remote monitoring can be added on request.
Quick answerA beverage can filling machine fills aluminum cans and seams on the lid in one line. Angel’s GDF rotary machines run 1,000–9,000 cans per hour as a soda can filling machine for carbonated drinks; the isobaric linear lines run 1,500–3,500 cans per hour as a beer can filling machine for small breweries.
2026 catalogue · GDF seriesModels
Beverage Can Filling Machine models by output
Choose by rated output first. Inquire to receive the price for your bottle and output.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

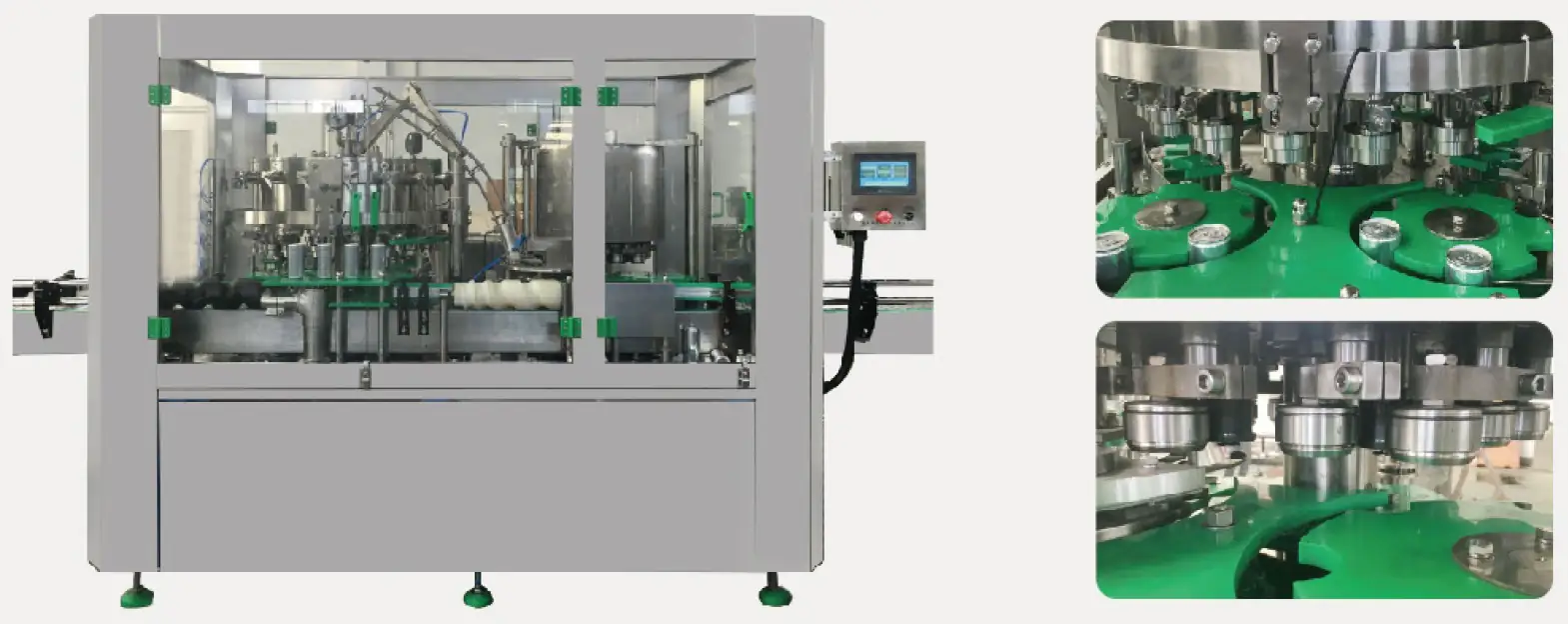

GDF can filling and sealing machine for carbonated drinks
Source: Angel Machine 2026 catalogue, page 20.
Swipe to see all models →
| Model | GDF12-1 | GDF18-6 | GDF24-6 |
|---|---|---|---|
| Production capacity (cans/h) | 1000-2000 | 3000-6000 | 4000-9000 |
| Power (kW) | 0.75 | 3.7 | 3.7 |
| Overall dimensions (mm) | 1750×1140×1950 | 2320×1400×1900 | 2580×1675×1900 |
| Weight (kg) | 1800 | 2500 | 3000 |

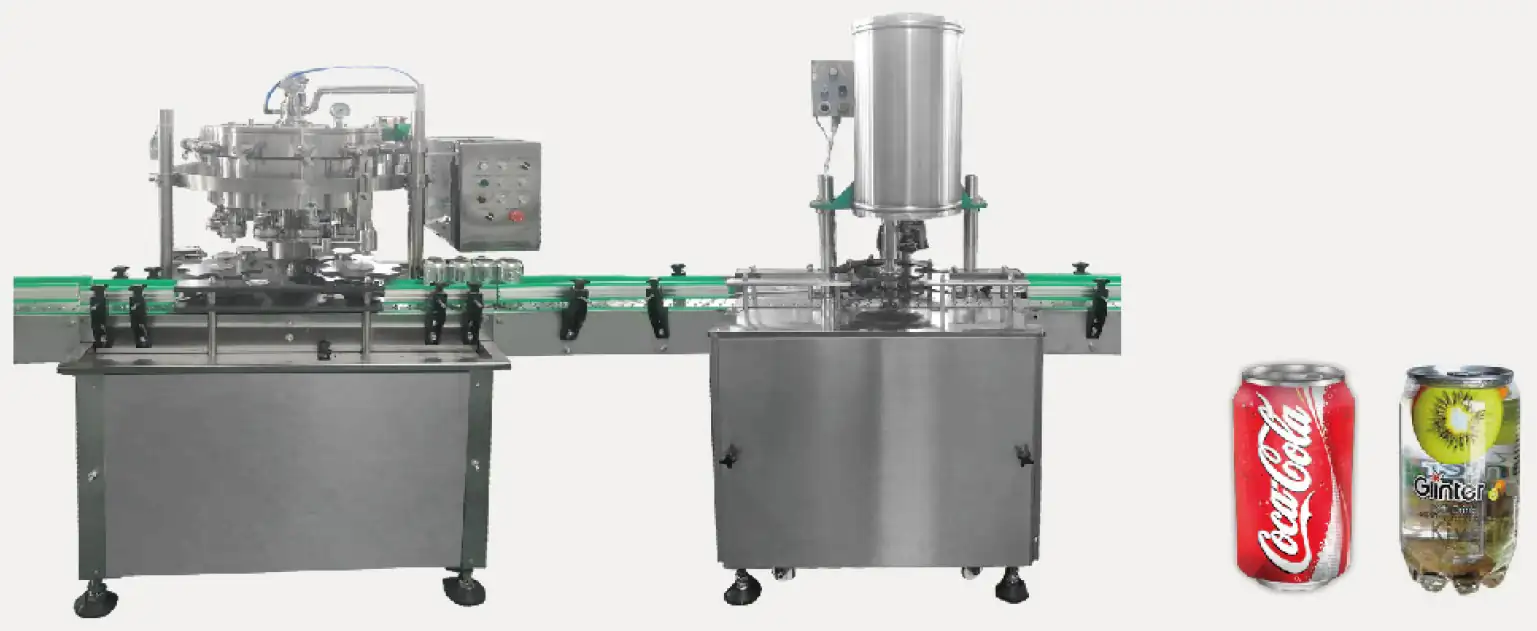

Can filling and capping linear line (isobaric, beer and carbonated drinks)
Source: Angel Machine 2026 catalogue, page 19.
Swipe to see all models →
| Model | CGJ-50 | DGC-12/16 | YLG-40 |
|---|---|---|---|
| Production capacity (cans/h) | 3000 | 1500-3500 | 2400 |
| Bottle / can diameter (mm) | Φ40-80 | Φ40-90, H50-340 | Φ50-67, H90-200 |
| Power (kW) | 0.55 | 0.75 | 0.75 |
| Overall dimensions (mm) | 1900×530×1100 | 810×1050×2050 | 930×700×1850 |
| Weight (kg) | 480 | 500 | 500 |
Also consider
For breweries, the beer can filling line adds can rinsing, coding and packing around the linear filler.
For cola, soda and sparkling water, the can carbonated drink filling line adds water treatment, beverage preparation and palletizing around the GDF.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What can sizes are supported?
The linear lines take cans Φ40–90 mm and 50–340 mm high depending on model; GDF machines are built to your can and lid.
02Is the filling isobaric?
Yes for beer and carbonated drinks: the can is pressurised before filling so the product keeps its CO₂.
Related
Complete lines and related machines
The complete line built around this filler, and the machines for related drinks.
Quotation
Send us your bottle and output. We design the line.
You get the machine models, a line layout and a price for the exact configuration, usually within one working day.
- Drink and container (PET, glass, can, barrel)
- Bottle sizes and target output per hour
- Single machine or complete line
- Country, voltage and available floor space
