Servo piston
Edible Oil Filling Machine
Automatic edible oil filling machine with servo piston dosing, PLC and touch screen, digital volume change, no-bottle no-fill and individual piston adjustment.
Edible oil line
Edible Oil Filling Line
Small bottles to 10 L
Oil lines use the same blowing and packing machines as our water lines, with a cooking oil filling machine suited to viscous product. The oil bottling machine is quoted with the edible oil packing machine (shrink wrapper or carton packer) sized to it.
Quick answerAn edible oil filling line blows or feeds bottles, fills cooking oil, caps, labels, codes and packs them. Angel uses servo piston fillers for accurate dosing of small bottles and the CGF 3-in-1 for 3–10 L bottles, with PET blowing and an oil packing machine at the end of the line.
2026 catalogue · CGF-3-10L seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.
PET bottle blowing machine
Transforms PET preforms into bottles of the required shape and size, ready for filling.
See the machine

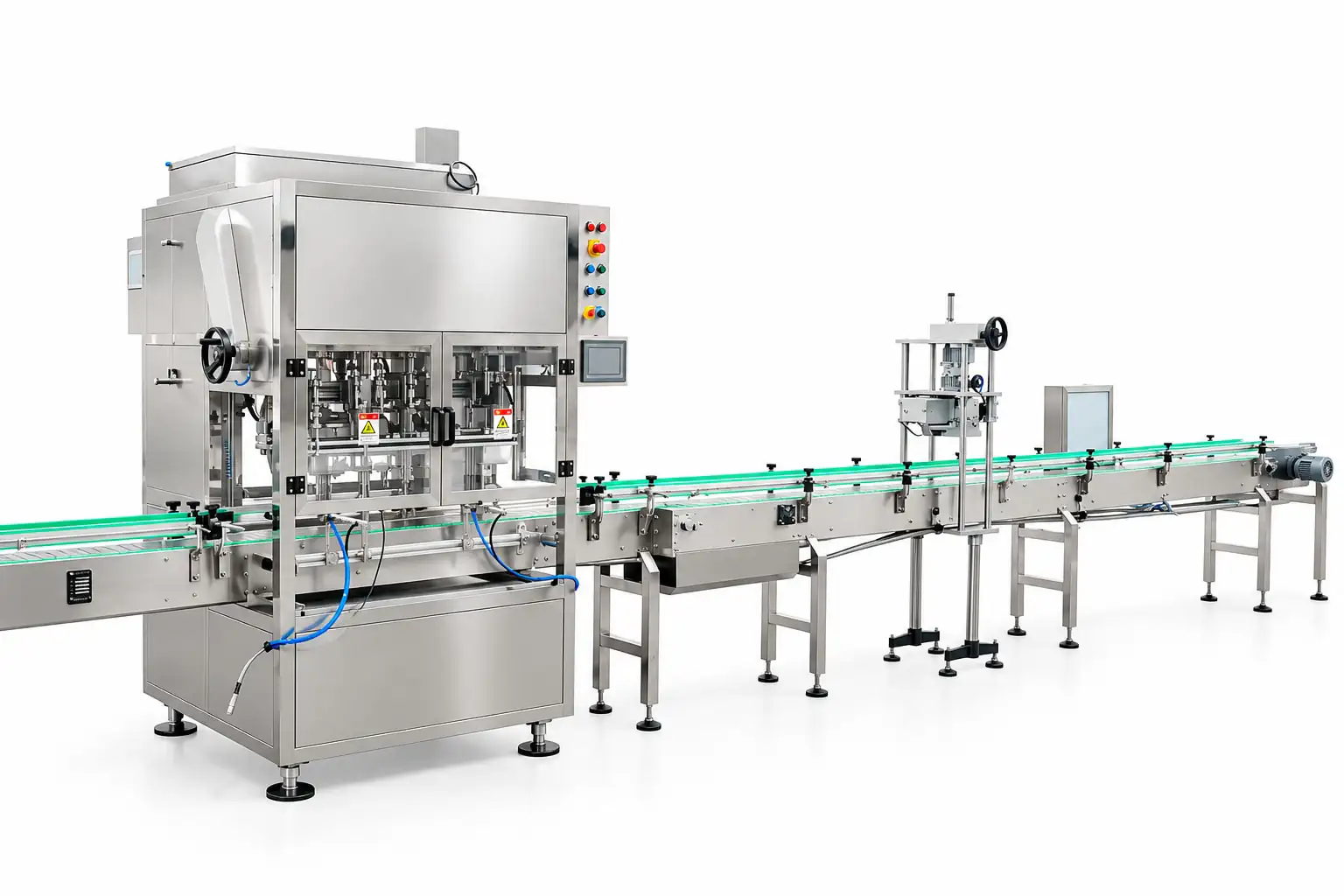

Automatic oil filling machine
Servo piston filler with PLC and touch screen; fill volume is set on the screen and each piston can be fine-tuned.
See the machine

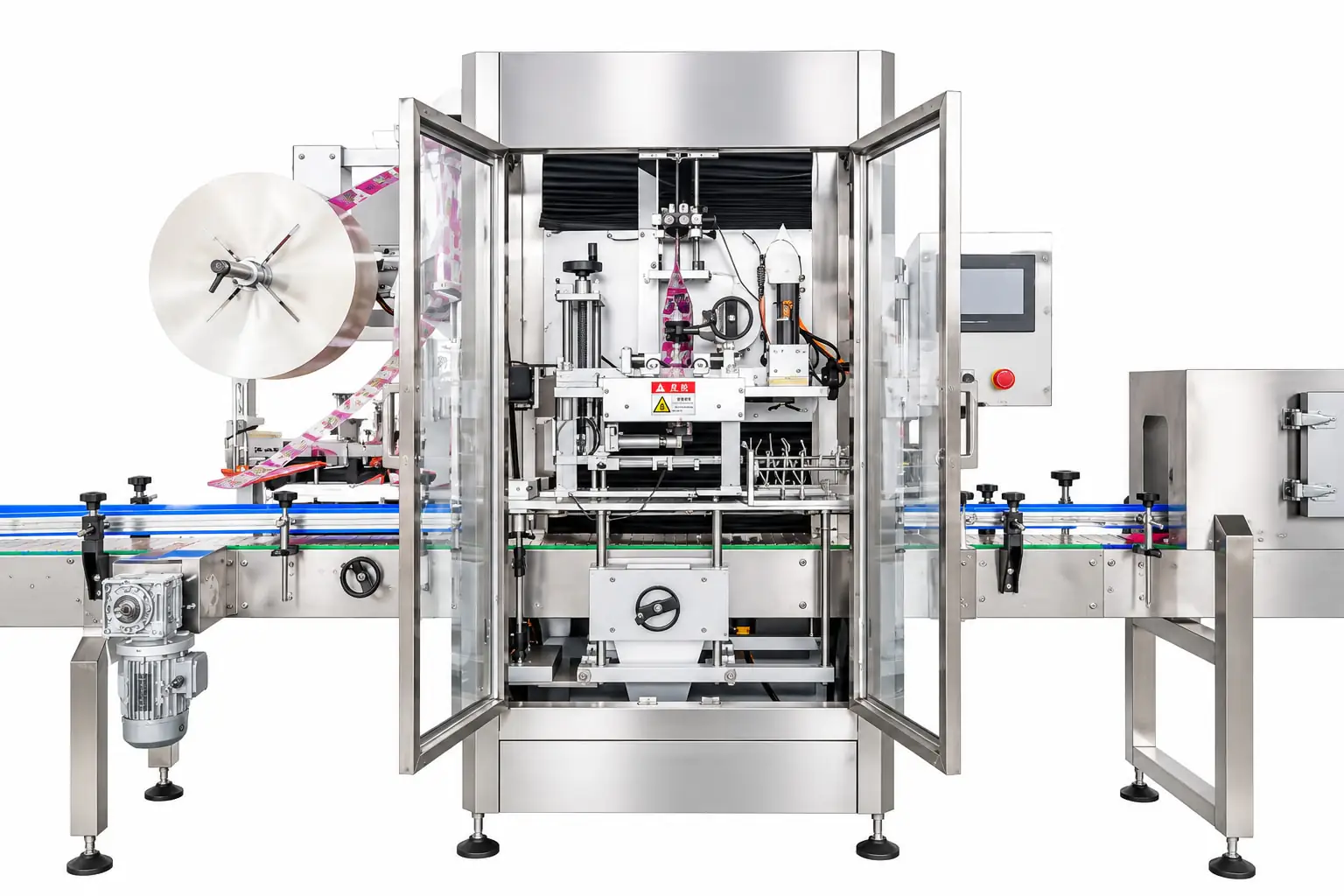

Bottle labeling machine
Shrink sleeve, OPP hot-melt or self-adhesive labels for round, square or shaped bottles.
See the machine

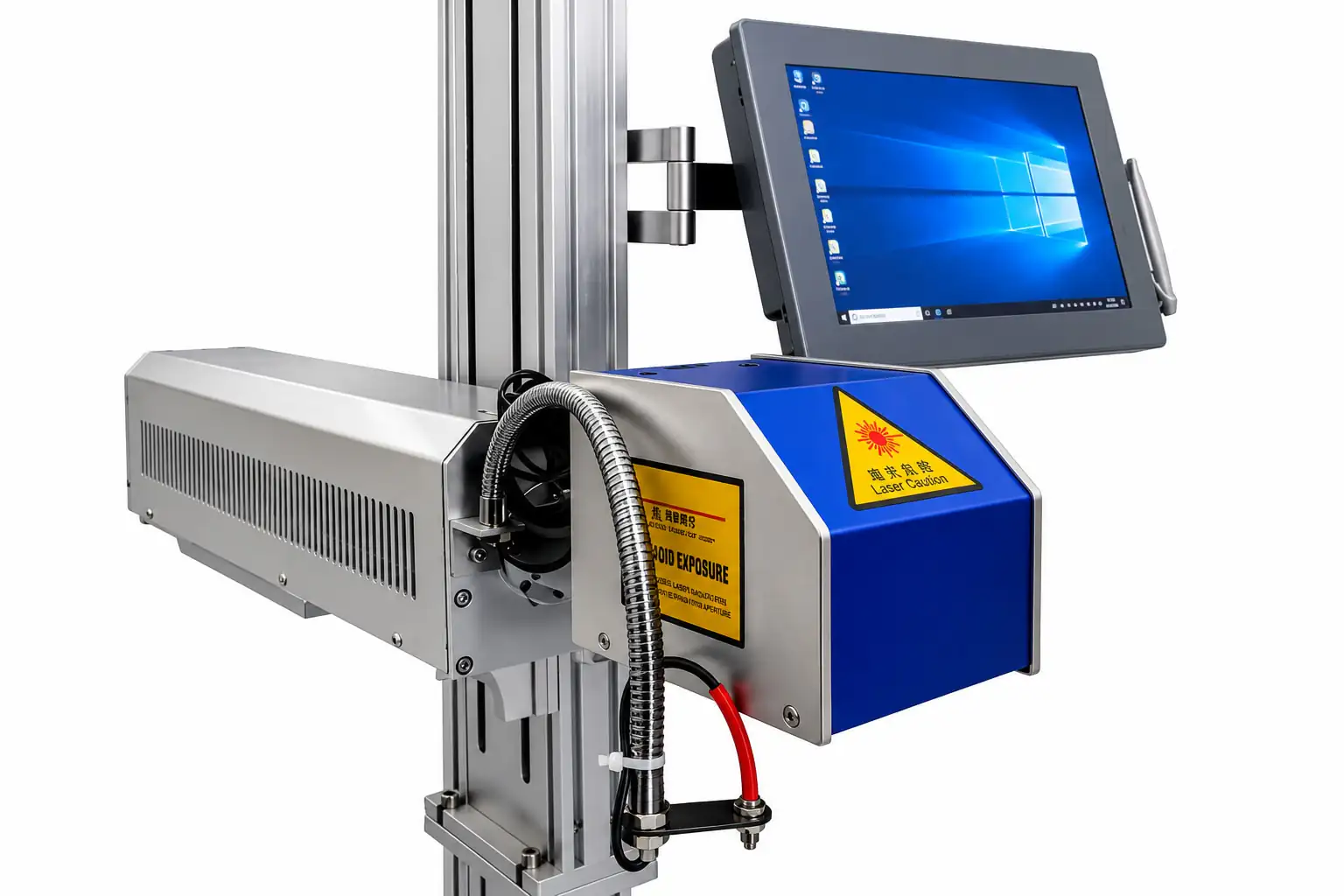

Date coding machine
Prints date and batch code on bottle, cap or can.
PE film shrink wrapping machine
Groups bottles into packs, wraps them in PE film and shrinks the film in a heat tunnel.
See the machine
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

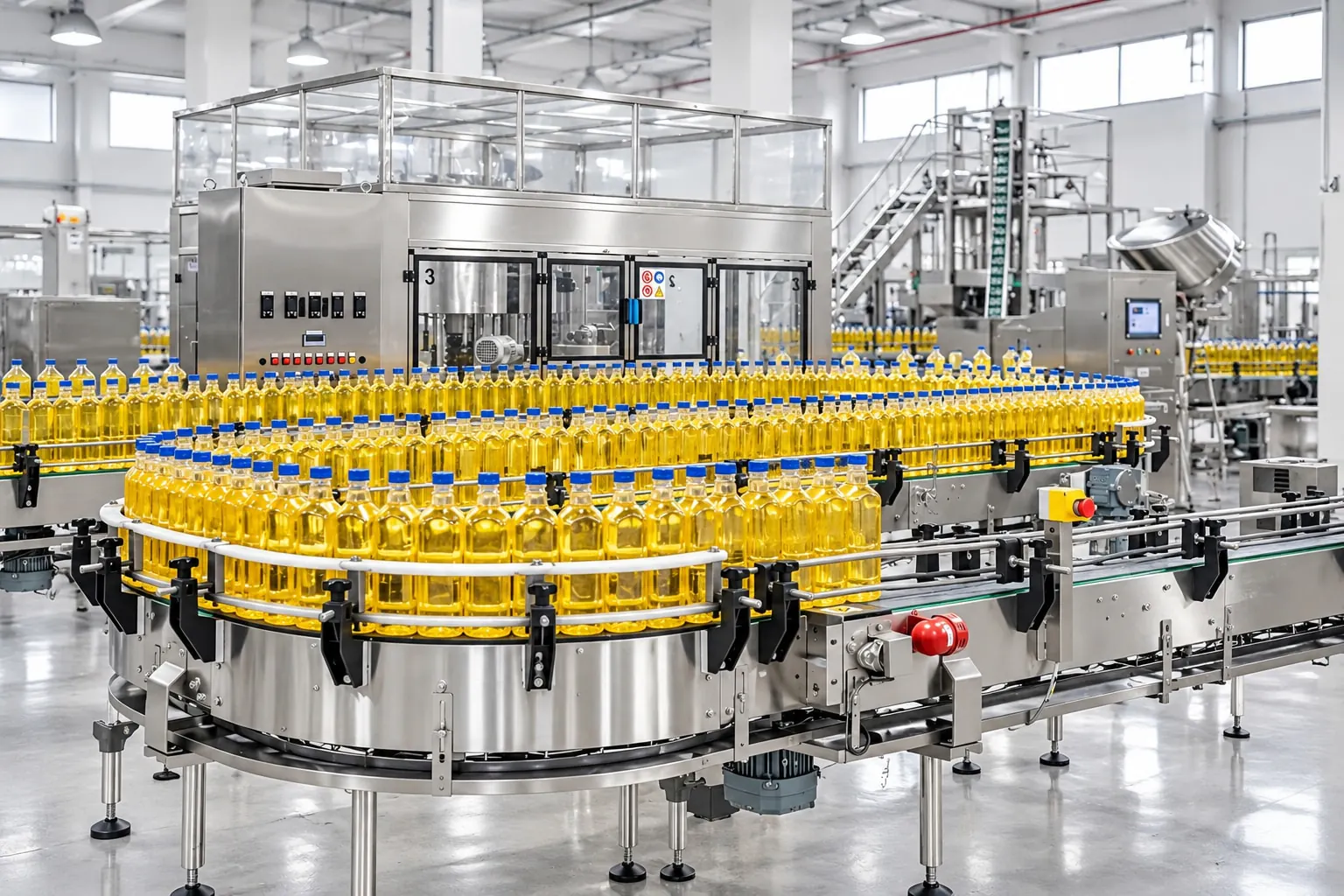

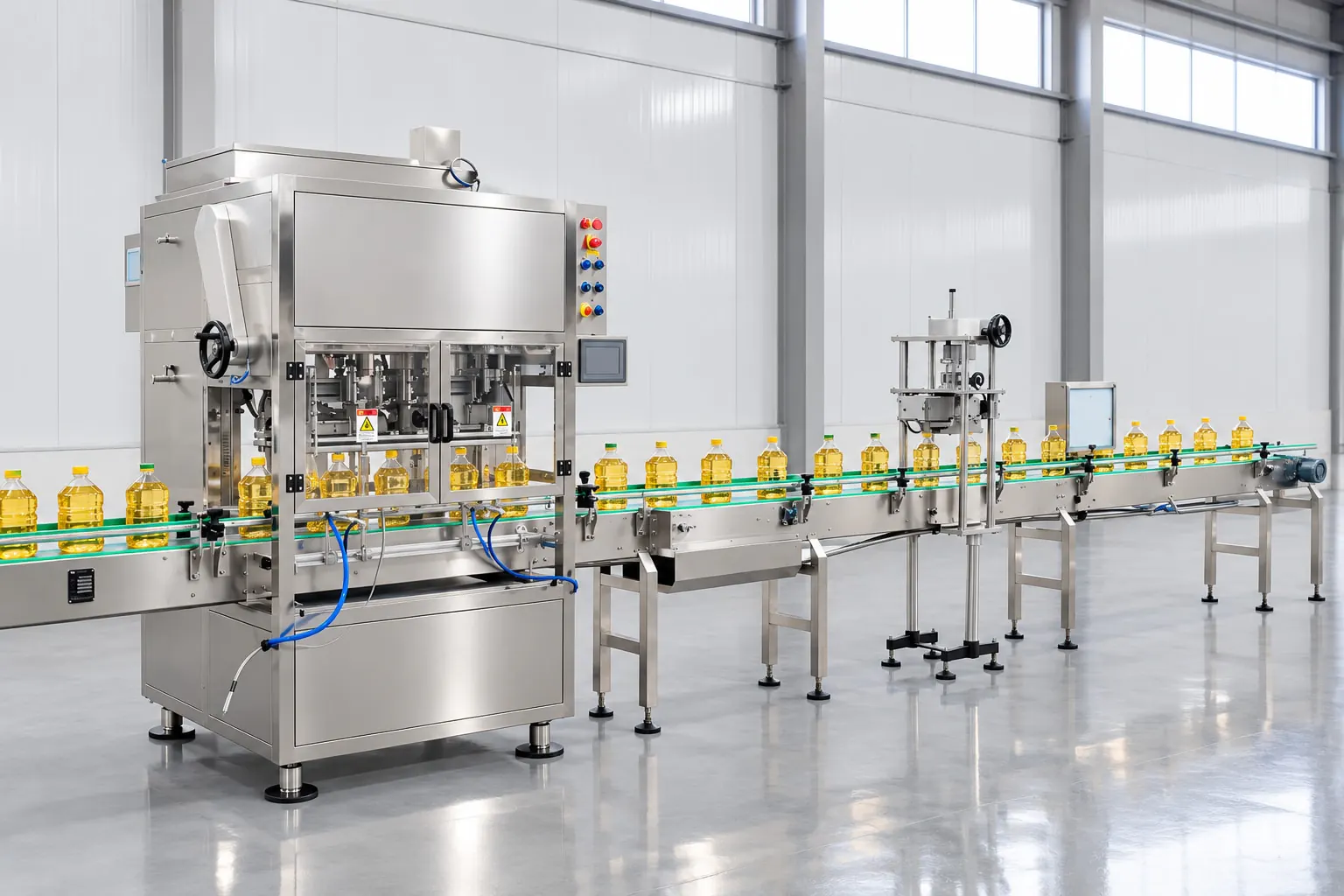

Automatic edible oil filling machine
Servo-driven pistons dose cooking oil into PET or glass bottles; volume is changed on the touch screen and a no-bottle, no-fill sensor prevents spills.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
3-10 L bottle washing-filling-capping 3-in-1 (CGF)
Source: Angel Machine 2026 catalogue, page 10.
Swipe to see all models →
| Model | CGF 8-8-3 | CGF 12-12-4 | CGF 18-18-6 | CGF 24-24-8 |
|---|---|---|---|---|
| Production capacity (bottles/h, as printed) | 1000 | 1000-1500 | 1500-2000 | 2500-3000 |
| Total power (kW) | 2.2 | 3 | 3.5 | 4 |
Note: The catalogue labels this capacity row '(500ml) (b/h)' although the machine is for 3-10 L bottles; container size for the stated capacity to be confirmed by Angel.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Which oil packing machine suits 1 L bottles?
A PE film shrink wrapper for 1 L PET bottles; 5 L and 10 L bottles are usually packed in cartons.
