Bottled water line
PET Water Bottle Filling and Packing Line, 330 ml–2 L
1,000–24,000 BPH
The water filling line is for PET bottles; the water bottle packing machine at the end is a PE film shrink wrapper or, for export, a carton packer. We also supply lines for glass bottles, sachets, pouches, cups and cartons, and the full water bottle plant machine set including water treatment.
Quick answerA 330 ml–2 L PET water bottle filling and packing line makes bottled water from raw water to finished packs: water treatment, PET bottle blowing, air conveying, rinsing-filling-capping, labeling, date coding and shrink wrapping. Angel water bottling lines run from 1,000 to 24,000 bottles per hour on 500 ml.
2026 catalogue · XGF seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.
Water treatment system
Purifies raw water through a treatment process configured according to the water source and required water quality.
See the machine
PET bottle blowing machine
Transforms PET preforms into bottles of the required shape and size, ready for filling.
See the machine
Air conveyor system
The air conveyor system uses high-speed airflow to transport empty PET bottles smoothly and efficiently from the bottle blowing machine to the filling machine, ensuring stable and continuous production.
See the machine
Water bottle filling machine
Integrates bottle rinsing, water filling and capping for efficient and hygienic bottled water production.
See the machine

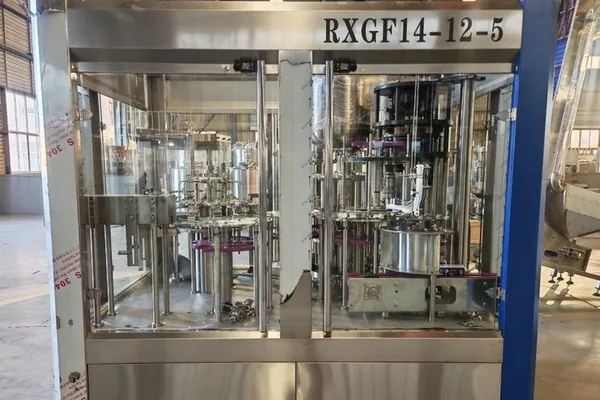

Water rinsing, filling and capping machine
This 3-in-1 machine integrates bottle rinsing, water filling and capping into one automated system, ensuring hygienic operation, high efficiency and reliable performance for PET bottled water production.
See the machine
Labeling machine
Applies labels to finished bottles. OPP hot-melt, shrink sleeve and self-adhesive labeling options are available.
See the machine
Laser coding machine
Marks production dates, batch numbers and other traceability information on bottles or packaging.
PE film shrink wrapping machine
Groups filled bottles and wraps them with PE shrink film for convenient handling, storage and transportation.
See the machine
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

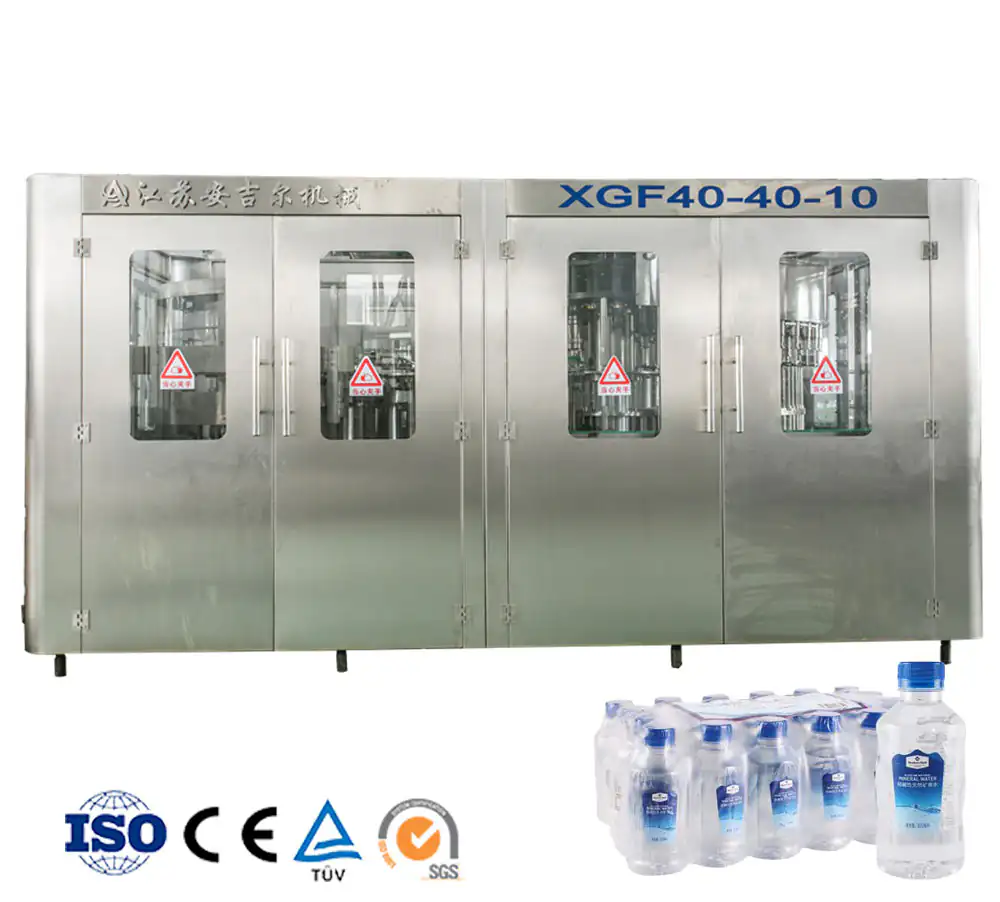

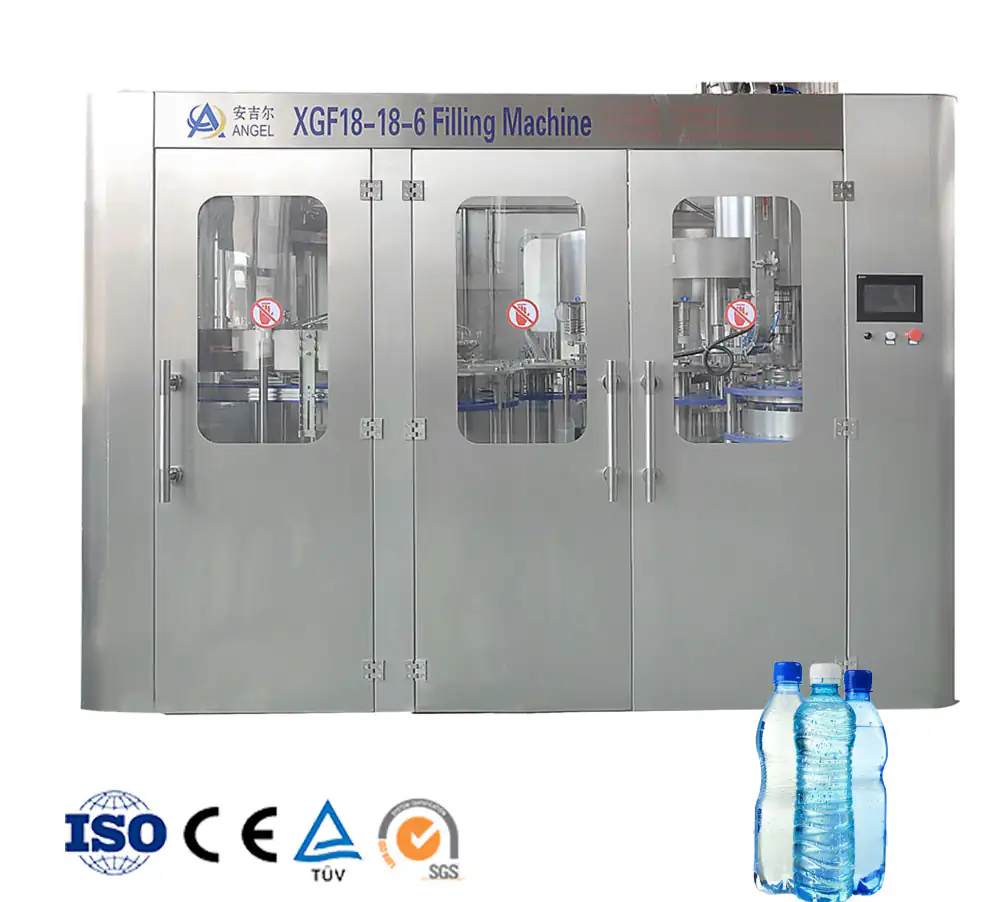

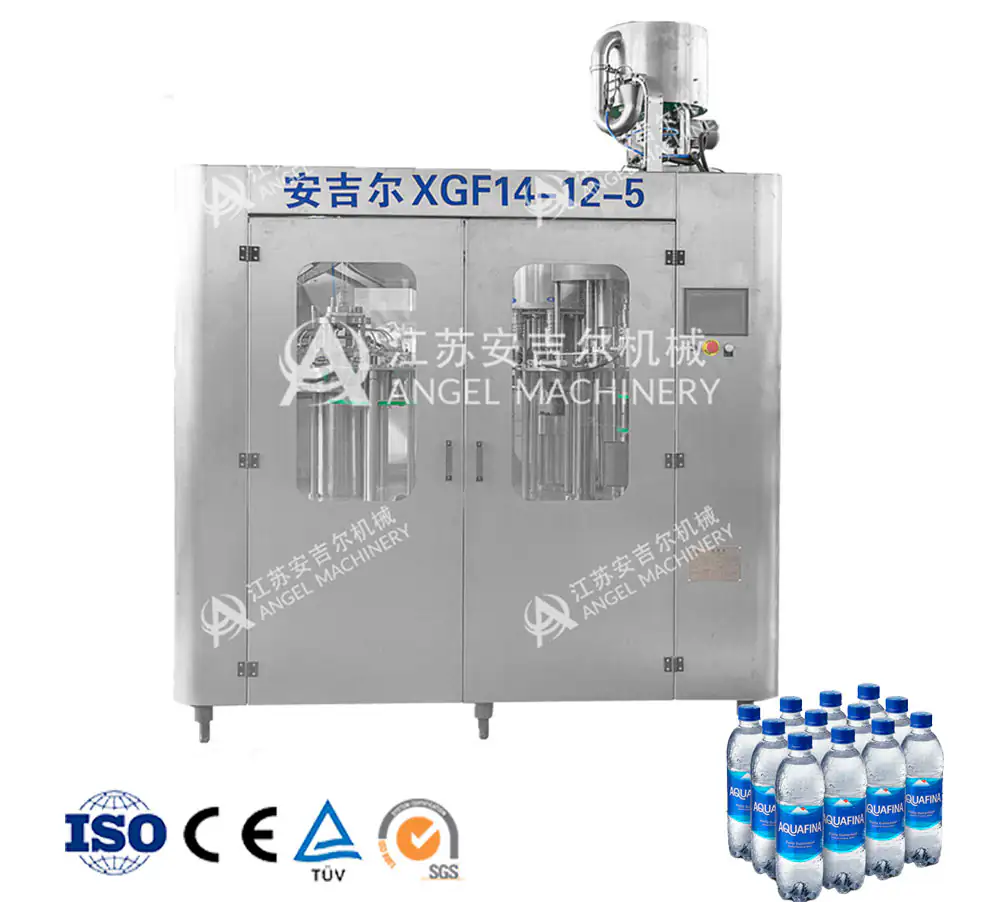

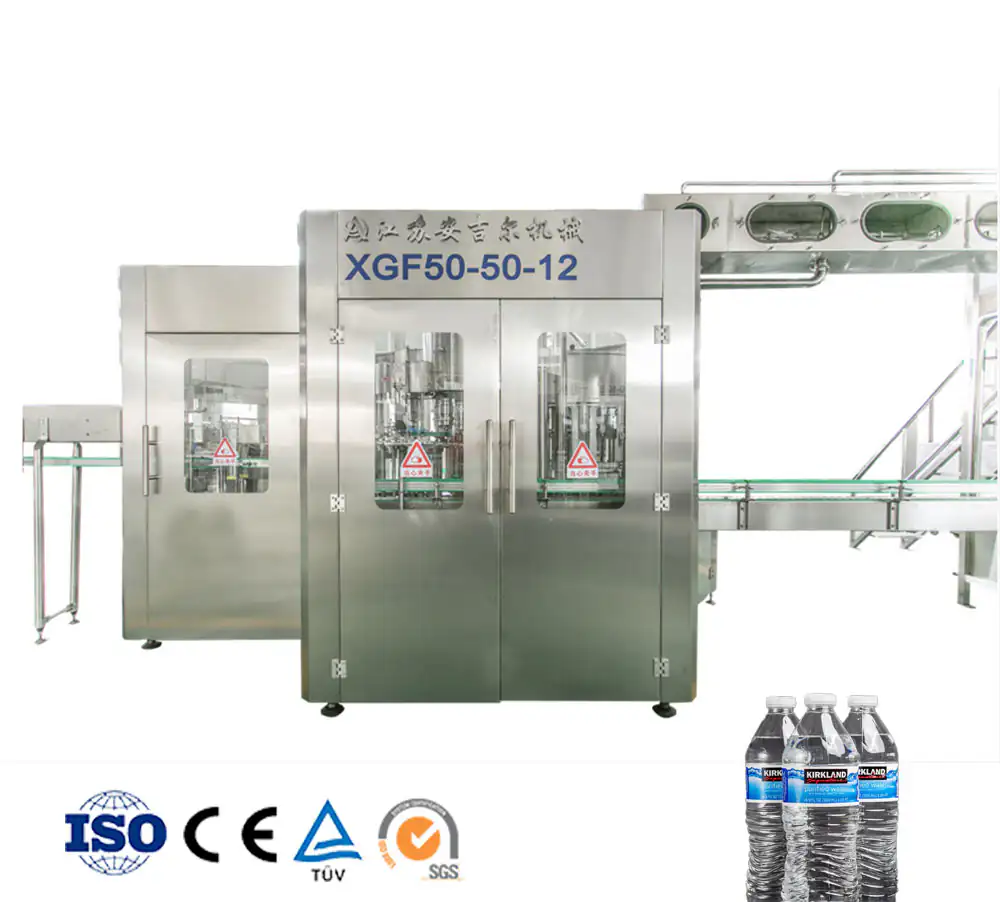

XGF series water filling machine (washing, filling, capping 3-in-1)
Source: Angel Machine 2026 catalogue, page 8.
Swipe to see all models →
| Model | XGF8-8-3 | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-12 |
|---|---|---|---|---|---|---|---|
| Capacity (500 ml bottles/h) | 1000-2500 | 2000-4000 | 4000-8000 | 6000-12000 | 12000-16000 | 15000-20000 | 20000-24000 |
| Suitable bottle shape | PET round or square | ||||||
| Bottle diameter (mm) | Φ50-Φ115 | ||||||
| Bottle height (mm) | 160-320 | ||||||
| Compressed air pressure (MPa) | 0.3-0.7 | ||||||
| Washing medium | Aseptic water | ||||||
| Washing water pressure (MPa) | >0.06, ≤0.2 | ||||||
| Total power (kW) | 3.0 | 3.2 | 3.9 | 4.7 | 6.2 | 8.1 | 10.2 |
| Overall dimensions (mm) | 2150×1500×2200 | 2450×1650×2200 | 2750×1900×2200 | 3150×2100×2200 | 3450×2250×2200 | 3950×2650×2200 | 4350×3650×2200 |
| Weight (kg) | 2500 | 3200 | 4500 | 5500 | 6700 | 8500 | 9000 |
Also consider
Bottles of 3–10 L need a larger filler: see the 3–10 L water filling line.
Returnable 3 and 5 gallon barrels run on a separate 5 gallon water filling line.

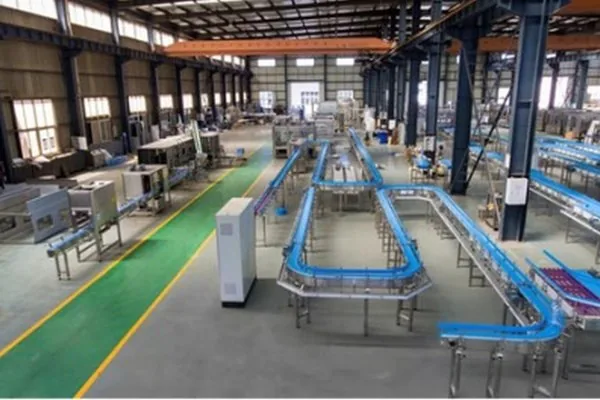

Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What is the smallest complete water line?
Around 1,000–2,500 bottles per hour with the XGF8-8-3 monoblock, a 2-cavity blow molder and a semi-automatic shrink wrapper.
02What water treatment capacity does the line need?
Size the treatment above the filler’s water use, allowing for rinse water and CIP. A 20,000 L/h RO water treatment line supplies about 40,000 bottles of 500 ml per hour at full use.
03Which water packing machine goes at the end of the line?
For water in PET the PE film shrink wrapper is standard; cartons are used for glass or long-distance shipping. Both are sized to the filler output.
04How long does a line take to build?
Lead time depends on the line and current orders; it is confirmed in the quotation.
05Do you install the line?
Our service covers communication, contract, production, quality check, transport and installation, as shown in our line brochure.
