1,000–9,000 cans/h
Beverage Can Filling and Seaming Machine
Beverage can filling and seaming machines for beer, cola and sparkling drinks: GDF rotary aluminum can fillers to 9,000 cans/h and isobaric linear lines.
Can line
Beer Can Filling Line for Breweries
1,500–3,500 cans/h
Complete beer can filling line featuring can rinsing, isobaric filling, seaming, coding and packaging. The preferred size of beer canning line for medium breweries; remote monitoring can be added on request.
Quick answerA can beer filling line fills beer into aluminum cans under counter-pressure and seams on the lid with little oxygen pick-up. Angel’s linear beer can filling machines (CGJ-50, DGC-12/16, YLG-40) run 1,500–3,500 cans per hour with SUS316 product-contact parts.
2026 catalogue · CAN-LINEAR seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.

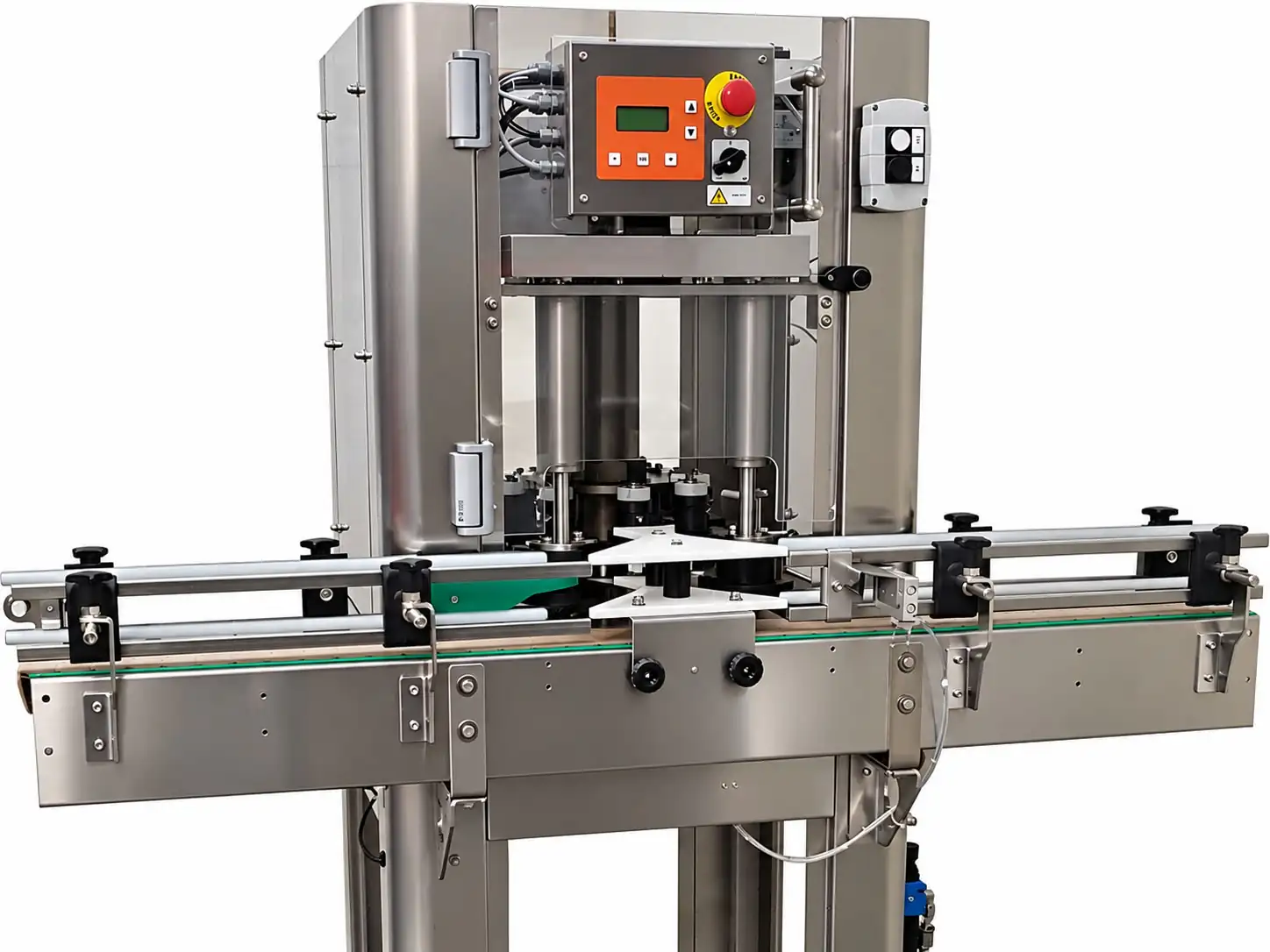

Can rinser
The can rinser removes dust and impurities from empty aluminum cans before filling to ensure hygienic production.

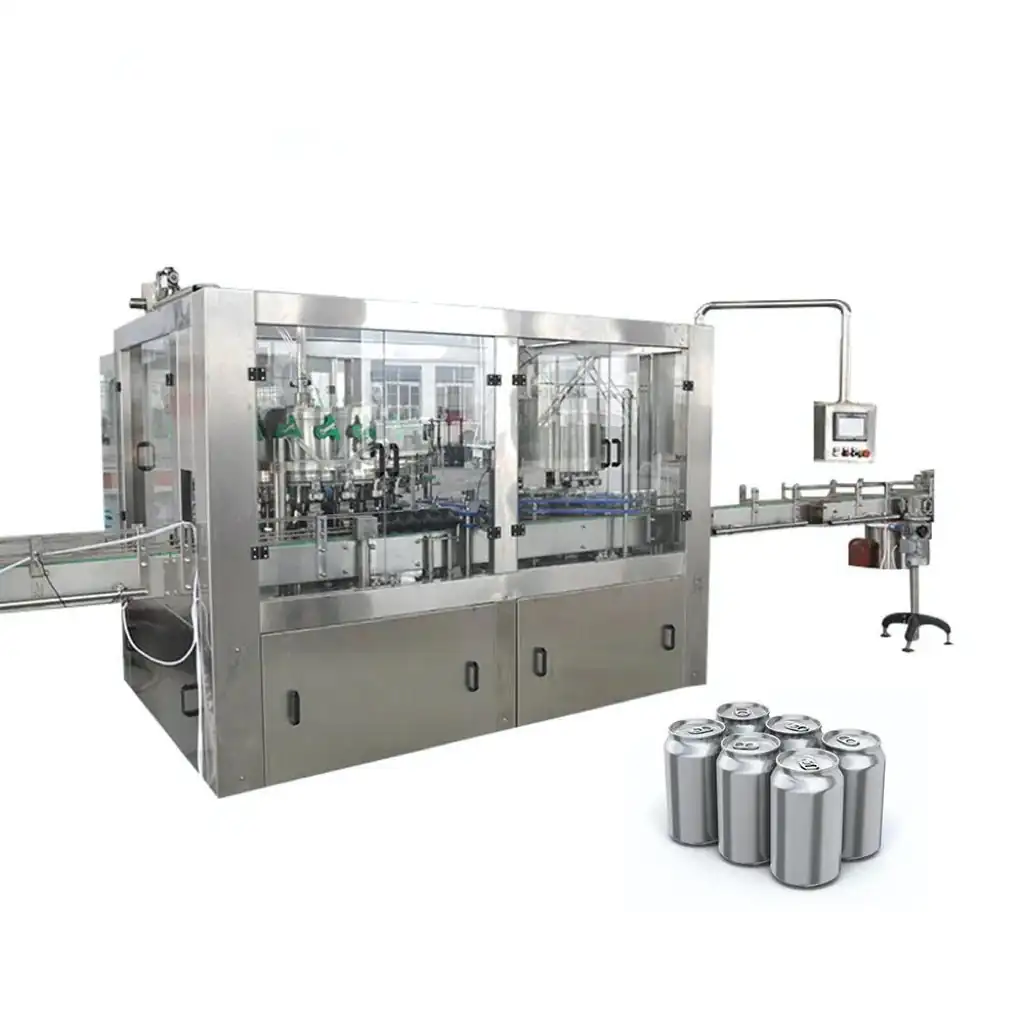

Isobaric can filling and seaming machine
The machine fills beer under controlled pressure and securely seals aluminum cans to minimize foaming and oxygen exposure.
See the machine

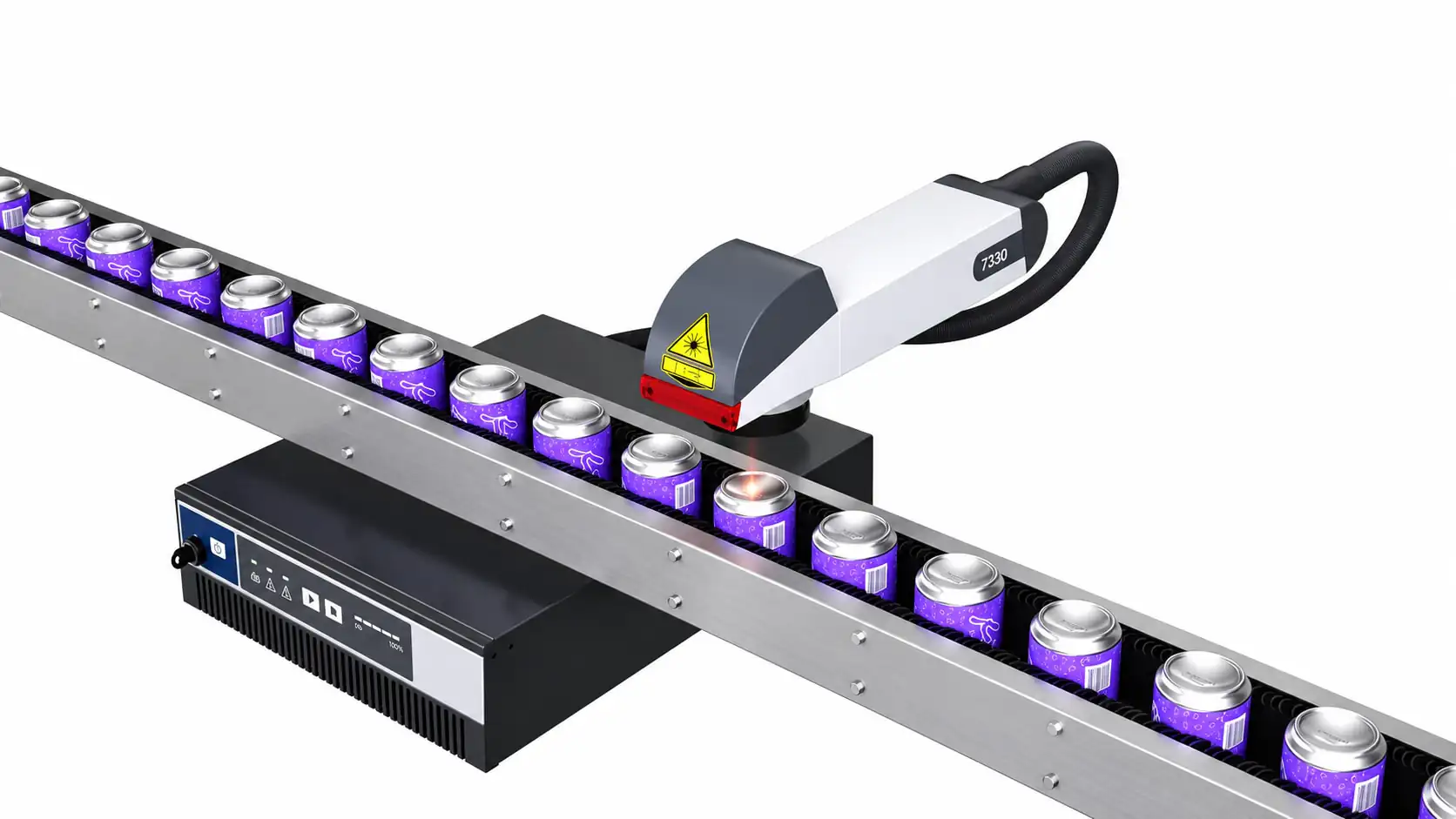

Date coding machine
The date coding machine marks production dates, batch numbers and other traceability information on aluminum cans.

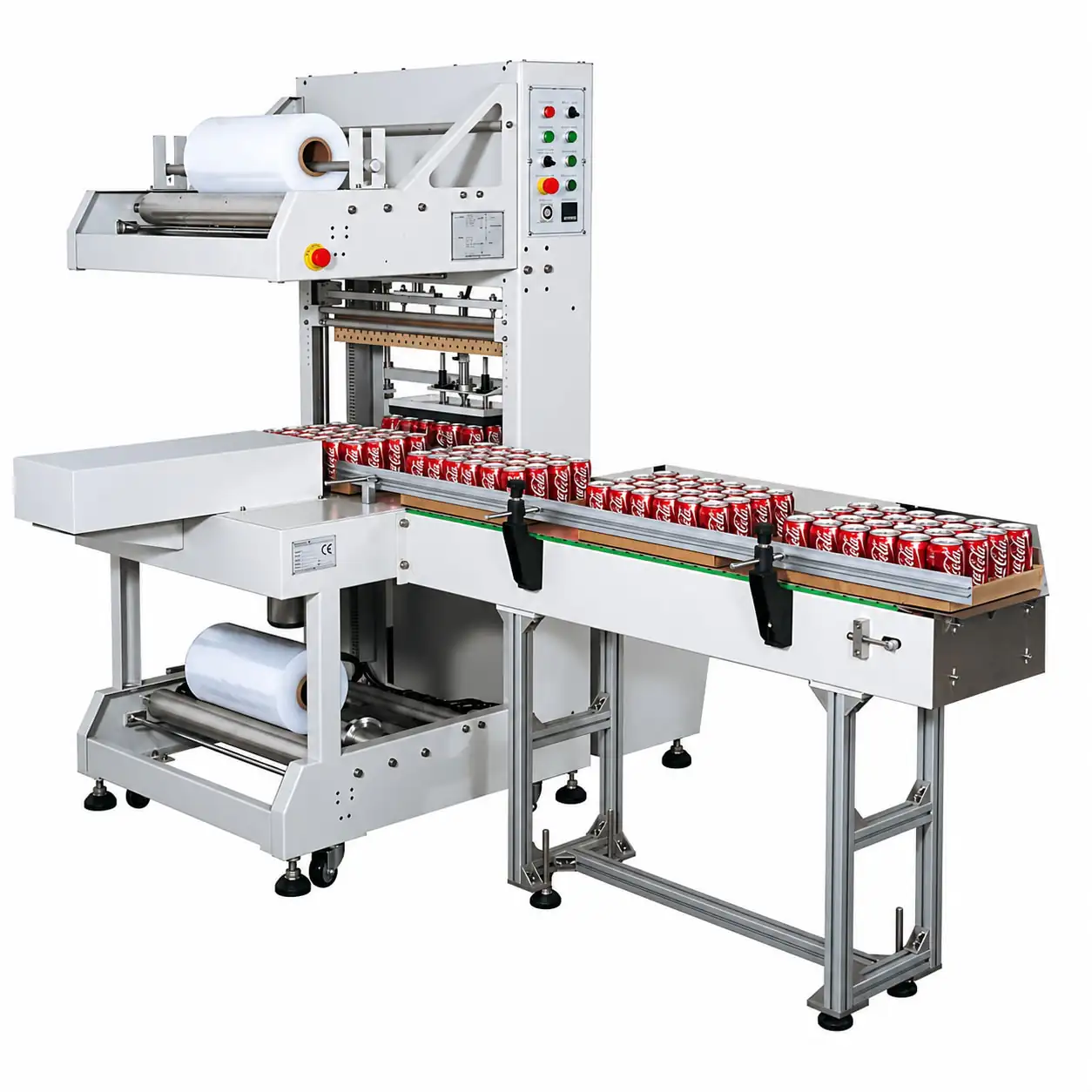

PE film shrink wrapping machine
The machine groups filled beer cans into packs and wraps them in PE shrink film for convenient handling and transportation.
See the machine
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

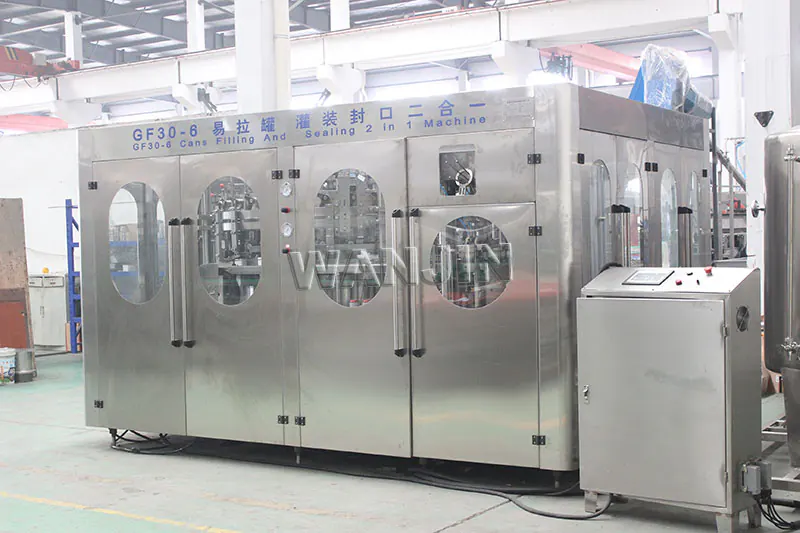

Beverage can filling and seaming machine
Automatic can filling and seaming equipment for beer and other carbonated beverages.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
Can filling and capping linear line (isobaric, beer and carbonated drinks)
Source: Angel Machine 2026 catalogue, page 19.
Swipe to see all models →
| Model | CGJ-50 | DGC-12/16 | YLG-40 |
|---|---|---|---|
| Production capacity (cans/h) | 3000 | 1500-3500 | 2400 |
| Bottle / can diameter (mm) | Φ40-80 | Φ40-90, H50-340 | Φ50-67, H90-200 |
| Power (kW) | 0.55 | 0.75 | 0.75 |
| Overall dimensions (mm) | 1900×530×1100 | 810×1050×2050 | 930×700×1850 |
| Weight (kg) | 480 | 500 | 500 |
Also consider
Beer in glass bottles runs on the BCGF beer filling machine with crown capping.
For soda and sparkling water in cans, see the can carbonated drink filling line.

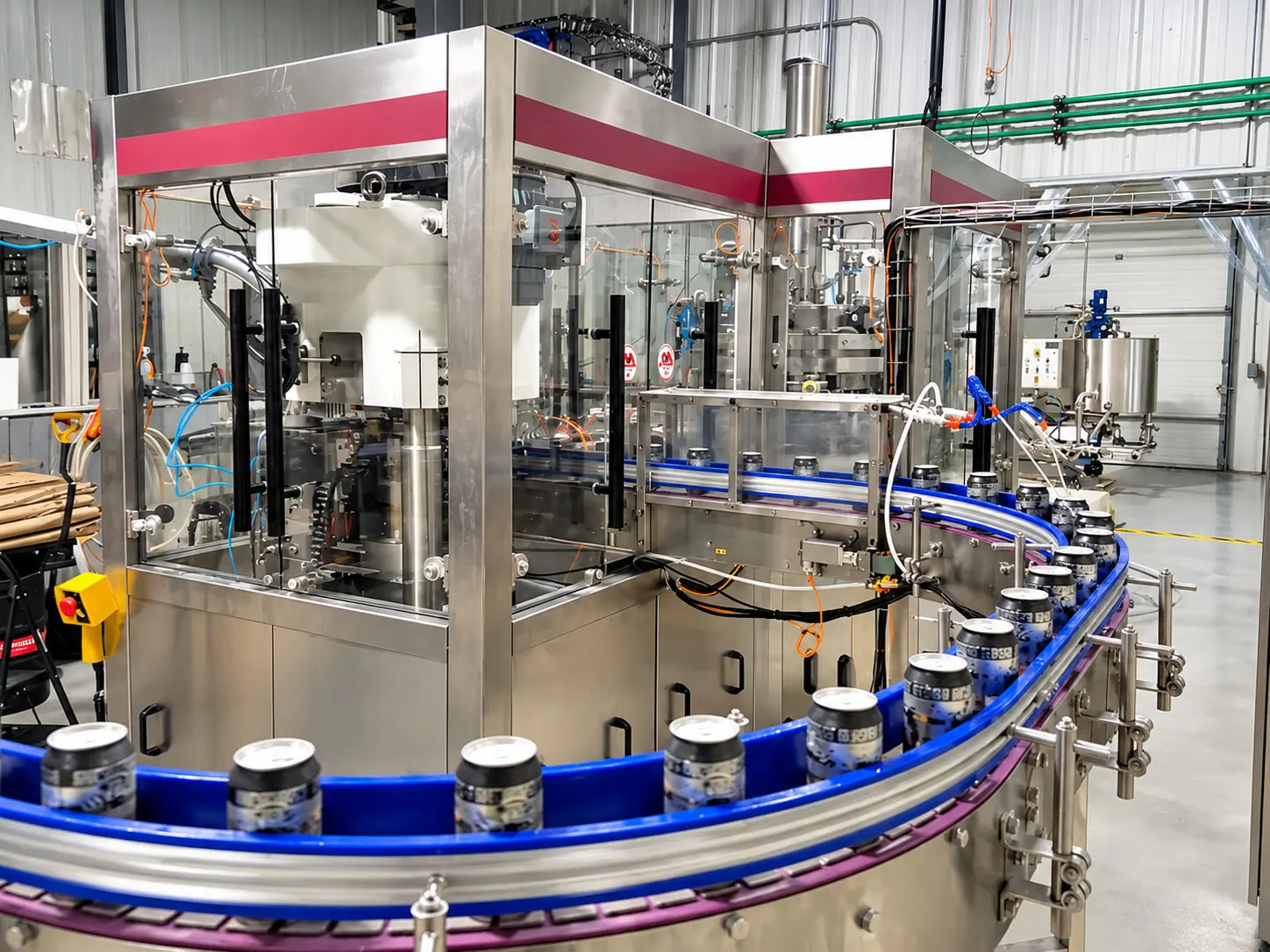

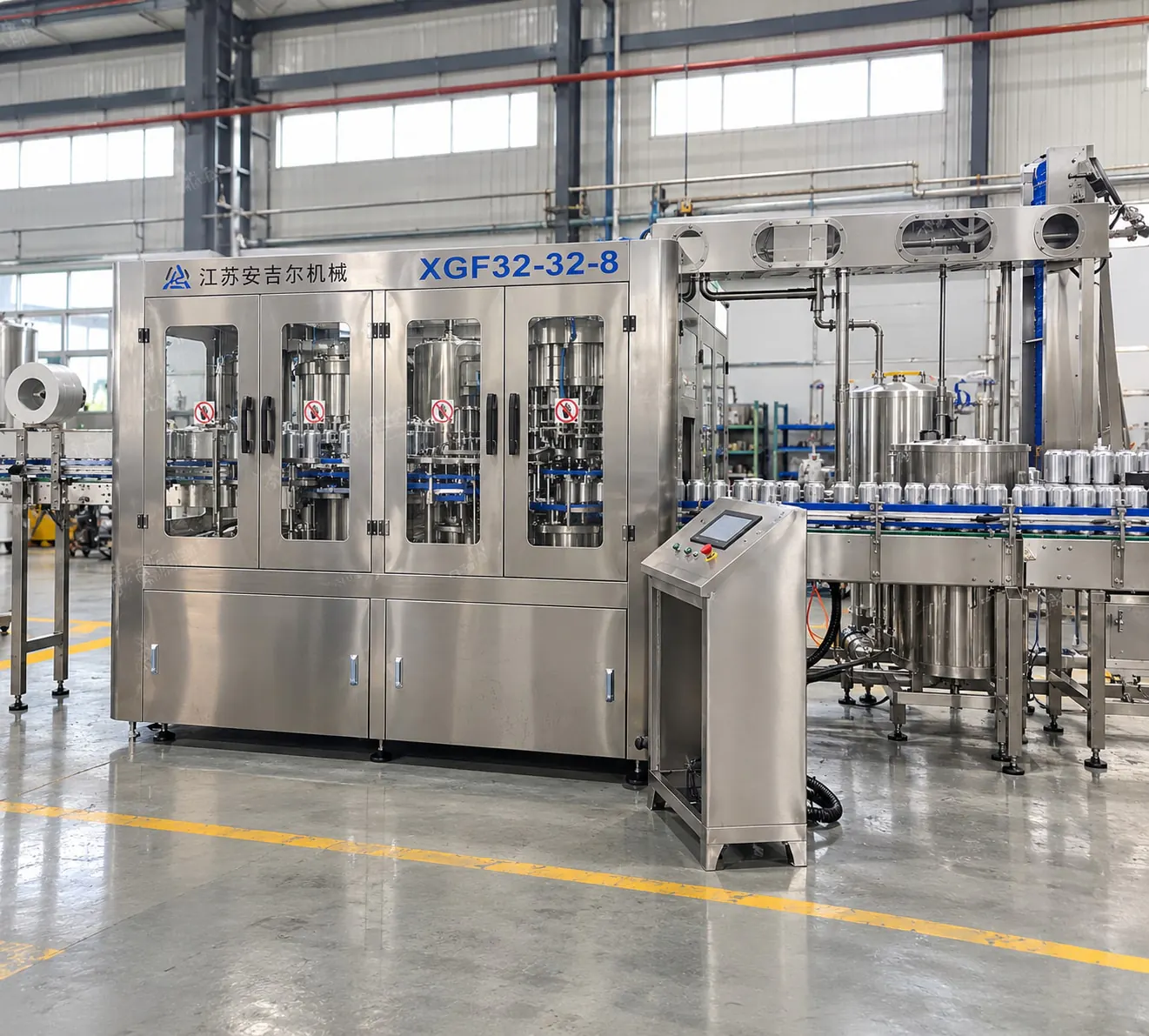

Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Is the beer canning line suitable for a craft brewery?
Yes. 1,500–3,500 cans per hour matches small and mid-size breweries, and the linear layout fits a narrow building.
