PET Bottle Blow Molding Machine
2–8 cavities, 1,800–8,000 BPH
Making bottles in-house with your own bottle making machine removes the cost of shipping empty bottles. We also supply PET preform and cap moulds and injection molding machines.
Quick answerA PET bottle blow molding machine heats preforms and blows them into bottles in the mould. Angel’s automatic AGL-A2 to AGL-A8 bottle blowing machines have 2–8 cavities for 1,800–8,000 bottles per hour; semi-automatic models blow 0.1 L bottles up to 25 L (5 gallon) barrels.
2026 catalogue · AGL-AUTO seriesHow it works
Inside the PET bottle blow molding machine
Two-step stretch blow molding
Preforms are heated by infrared lamps, stretched by a rod and blown with high-pressure air into the bottle mould.
Matched to the filler
Choose the number of cavities so bottle output matches the filling machine: AGL-A4 for about 4,000 BPH, AGL-A8 for about 8,000 BPH.
Large containers
Semi-automatic machines blow 3–10 L bottles and 10–25 L barrels for 5 gallon lines.
Moulds and preforms

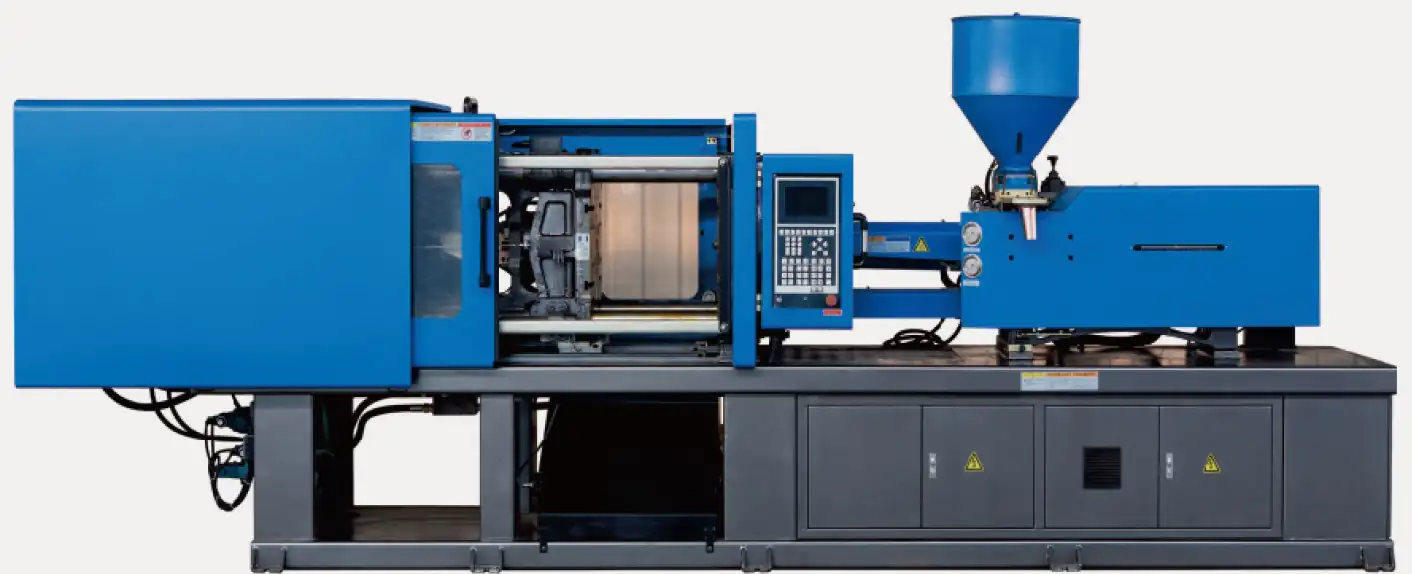

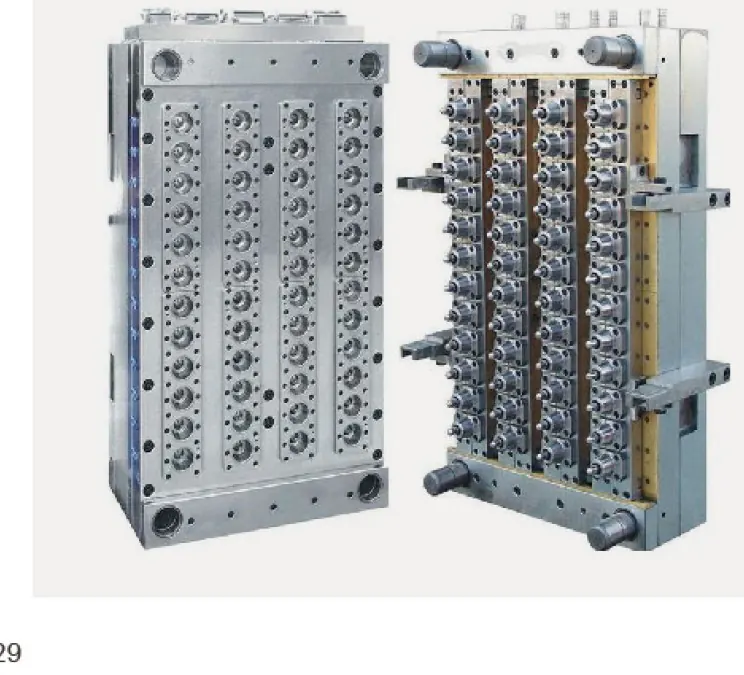

PET preform moulds, cap moulds and injection molding machines are supplied with the blow molder.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
AGL series full automatic PET bottle blowing machine
Source: Angel Machine 2026 catalogue, page 30.
Swipe to see all models →
| Model | AGL-A2 | AGL-A4 | AGL-A6 | AGL-A8 |
|---|---|---|---|---|
| Output (bottles/h, depends on bottle design) | 1800-2000 | 3200-4000 | 4000-5500 | 7000-8000 |
| Bottle volume | 0.1-2.0 L | 0.1-2.0 L | ≤1.5 L | ≤1.5 L |
| Body diameter | ≤100 mm | ≤100 mm | ≤90 mm | ≤90 mm |
| Bottle height | ≤310 mm | |||
| Neck diameter | 38 mm | 38 mm | 28-30 mm | 28-30 mm |
| Cavities | 2 | 4 | 6 | 8 |
| Mould thickness | 240 mm | |||
| Mould size (mm) | 260×240×370 | 510×240×360 | 640×240×360 | 780×240×360 |
| Power supply | 380 V / 220 V, 50/60 Hz, 3 phase | |||
| Rated power | 25 kW | 49 kW | 73 kW | 100 kW |
| Actual power use | 6.5 kW | 13 kW | 25 kW | 35 kW |
| HP air compressor | 1.4 m³/min, 3.0 MPa | 2.0 m³/min, 3.0 MPa | 6.0 m³/min, 3.0 MPa | 8.0 m³/min, 3.0 MPa |
| LP air compressor | 1.0 m³/min, 1.0 MPa | 1.6 m³/min, 1.0 MPa | 2.0 m³/min, 1.0 MPa | 2.0 m³/min, 1.0 MPa |
| Water chiller | 3 HP | 5 HP | 8 HP | 10 HP |
| Machine size (mm) | 1900×1280×1930 | 1900×1860×1930 | 4100×1400×1800 | 5600×1800×1930 |
| Machine weight | 2000 kg | 3600 kg | 4500 kg | 5600 kg |
| Preform unscrambler | 2000×950×2480 mm, 250 kg | |||

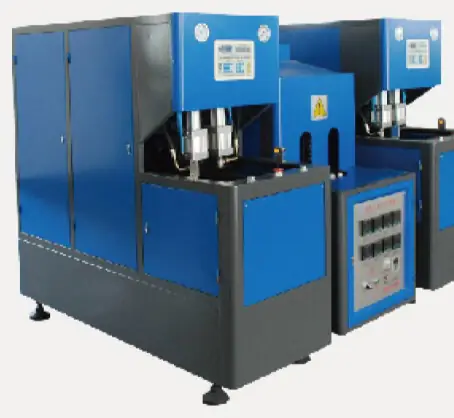

Semi-automatic blow molding machine for 0.1-5 L
Source: Angel Machine 2026 catalogue, page 31.
Swipe to see all models →
| Model | AGL-9A | AGL-1500A | AGL-8Y-H (hot filling) |
|---|---|---|---|
| Material | PET | ||
| Volume (L) | 2-5 | 0.1-2 | 0.1-1.5 |
| Theoretical output (pcs/h) | 300-600 | 1400-1800 | 800-1000 |
| Container height (mm) | ≤350 | ≤300 | ≤280 |
| Preform inner diameter (mm) | ≥Φ16 | ≥Φ12 | ≥Φ12 |
| Max. mould plate (mm) | 400×460 | 350×380 | 350×380 |
| Max. mould thickness (mm) | 260 | 210 | 210 |
| Clamping force (kN) | 65 | 45 | 45 |
| Mould opening stroke (mm) | 220 | 160 | 160 |
| Main machine (L×W×H) | 1750×670×1860 | 1600×620×1610 | 1600×600×1610 |
| Main machine weight (kg) | 600 | 500 | 500 |
| Heater (L×W×H) | 1870×630×1450 | ||
| Heater weight (kg) | 250 | ||
| Power (kW) | 17.5 | 17.5 | 24.8 |

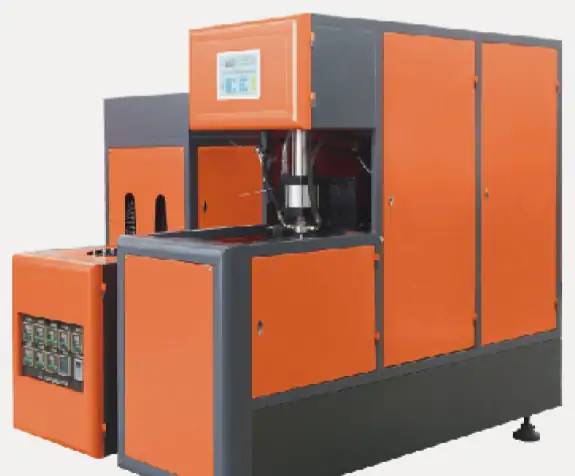

Semi-automatic blow molding machine for 5-25 L
Source: Angel Machine 2026 catalogue, page 31.
| Model | AGL-12 | AGL-98 |
|---|---|---|
| Material | PET | |
| Volume (L) | 10-25 (3-5 gallon) | 5-10 |
| Theoretical output (pcs/h) | 60-180 | 250-400 |
| Container height (mm) | ≤500 | ≤390 |
| Preform inner diameter (mm) | ≥Φ16 | |
| Max. mould plate (mm) | 420×500 | 470×500 |
| Max. mould thickness (mm) | 400 | 370 |
| Clamping force (kN) | 330 | 100 |
| Mould opening stroke (mm) | 318 | 350 |
| Main machine (L×W×H) | 2180×770×1960 | 1930×720×1830 |
| Main machine weight (kg) | 1000 | 800 |
| Heater (L×W×H) | 2370×680×1650 | 1870×630×1450 |
| Heater weight (kg) | 380 | 250 |
| Power (kW) | 40 | 17.5 |
Also consider
In a PET water bottling line the automatic blow molder feeds the filler through an air conveyor.
The semi-automatic AGL-12 blows new 10–25 L barrels for a 5 gallon water filling line.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01How many cavities do I need?
Match the blow molder to the filler: an AGL-A4 (3,200–4,000 bottles/h) feeds about a 4,000 bottles/h filler; an AGL-A8 (7,000–8,000 bottles/h) about 8,000.
02What compressed air is needed?
A high-pressure compressor at 3.0 MPa (1.4–8.0 m³/min by model), a low-pressure compressor at 1.0 MPa, an air tank, an air dryer and a water chiller.
