Glass Bottle Carbonated Drink Filling Line
3,000–10,000 BPH
Complete glass bottle soda and sparkling beverage bottling solutions. Our solutions can be customized according to bottle size, production capacity, closure type and packaging requirements, providing reliable and efficient bottling solutions for beverage manufacturers. The same glass bottle filling line serves as a beer bottling line.
Quick answerAngel Machine provides complete glass bottle carbonated drink filling lines for soda, sparkling water, cola and other carbonated beverages. The production line integrates water treatment, beverage preparation, carbonation, glass bottle washing or rinsing, isobaric filling, capping, labeling, date coding and final packaging.
2026 catalogue · BCGF seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.
Water treatment system
Prepares treated water for carbonated beverage production through filtration and purification, with the treatment process configured according to raw water quality.
See the machine

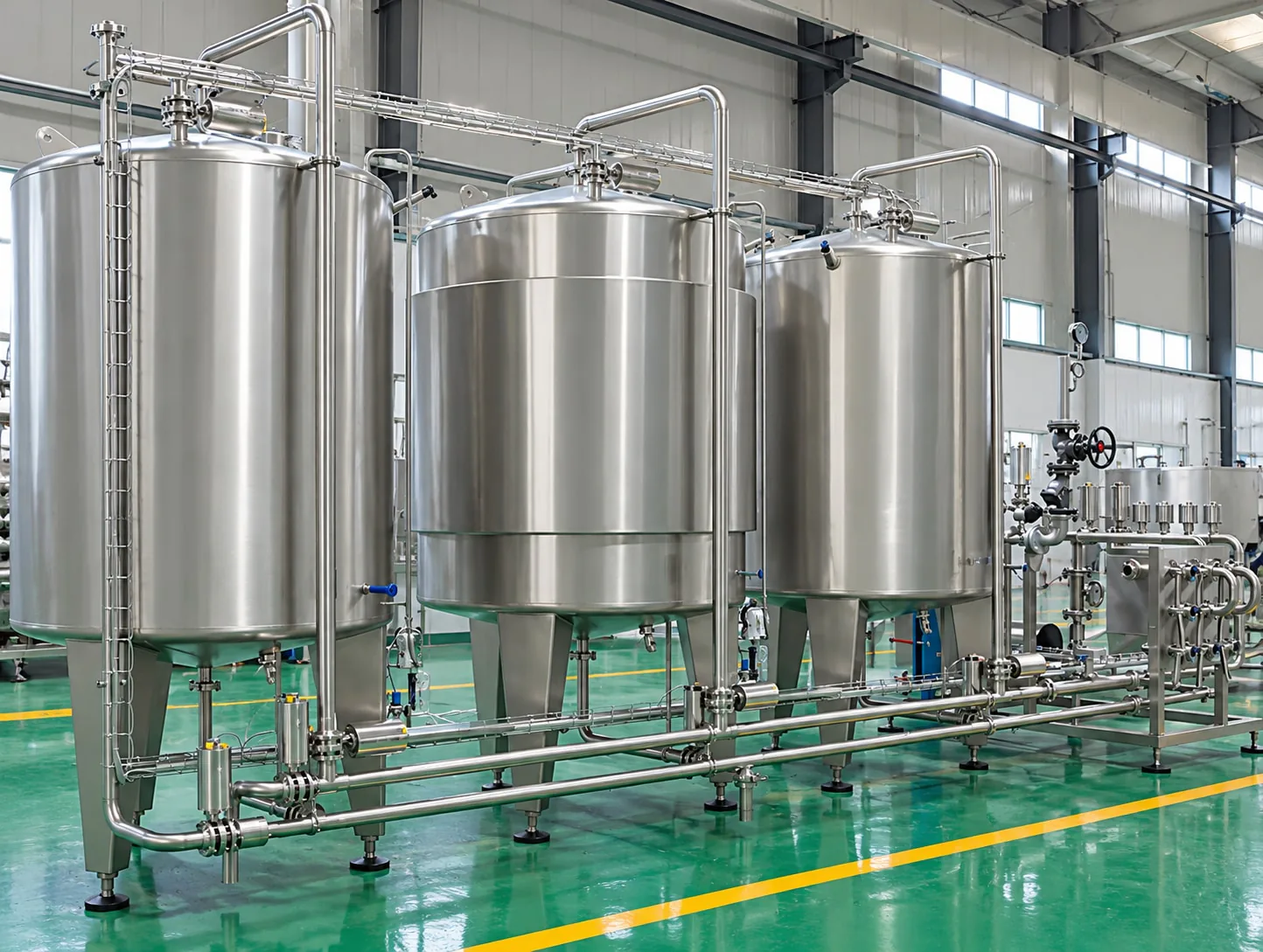

Syrup preparation and mixing system
The syrup preparation and mixing system ensures accurate sugar dissolution and uniform ingredient mixing for consistent beverage quality and flavor.

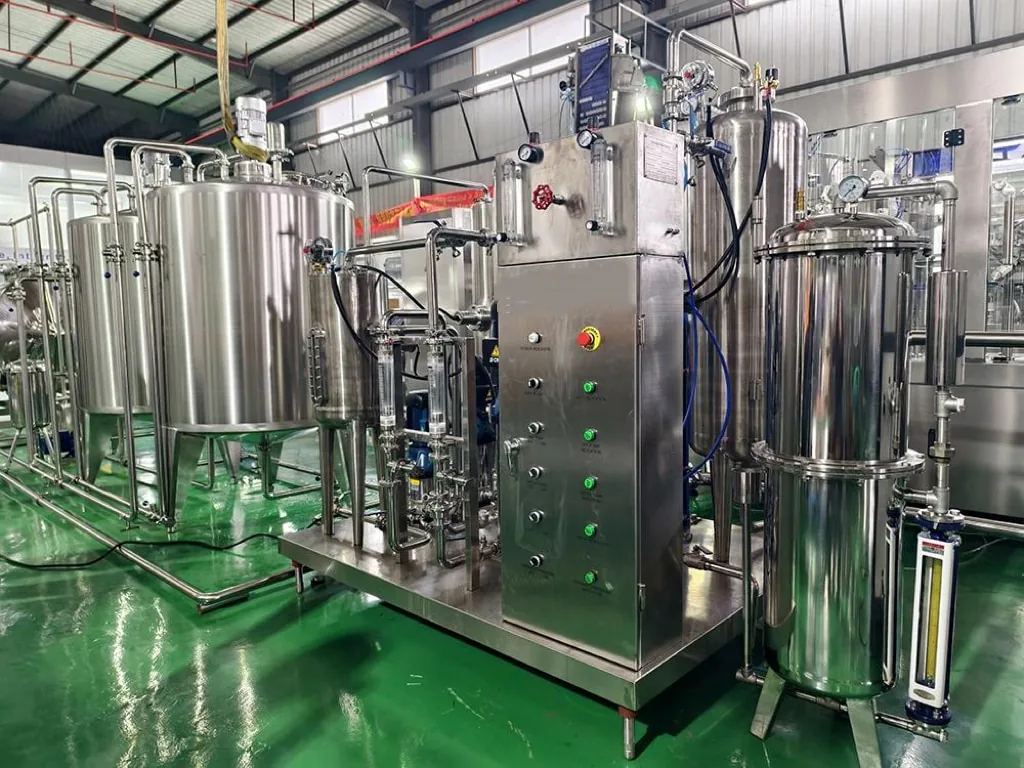

Carbonated beverage mixing system
The carbonated beverage mixing system precisely dissolves CO₂ into beverages to achieve consistent carbonation levels, stable product quality and a refreshing taste.
See the machine

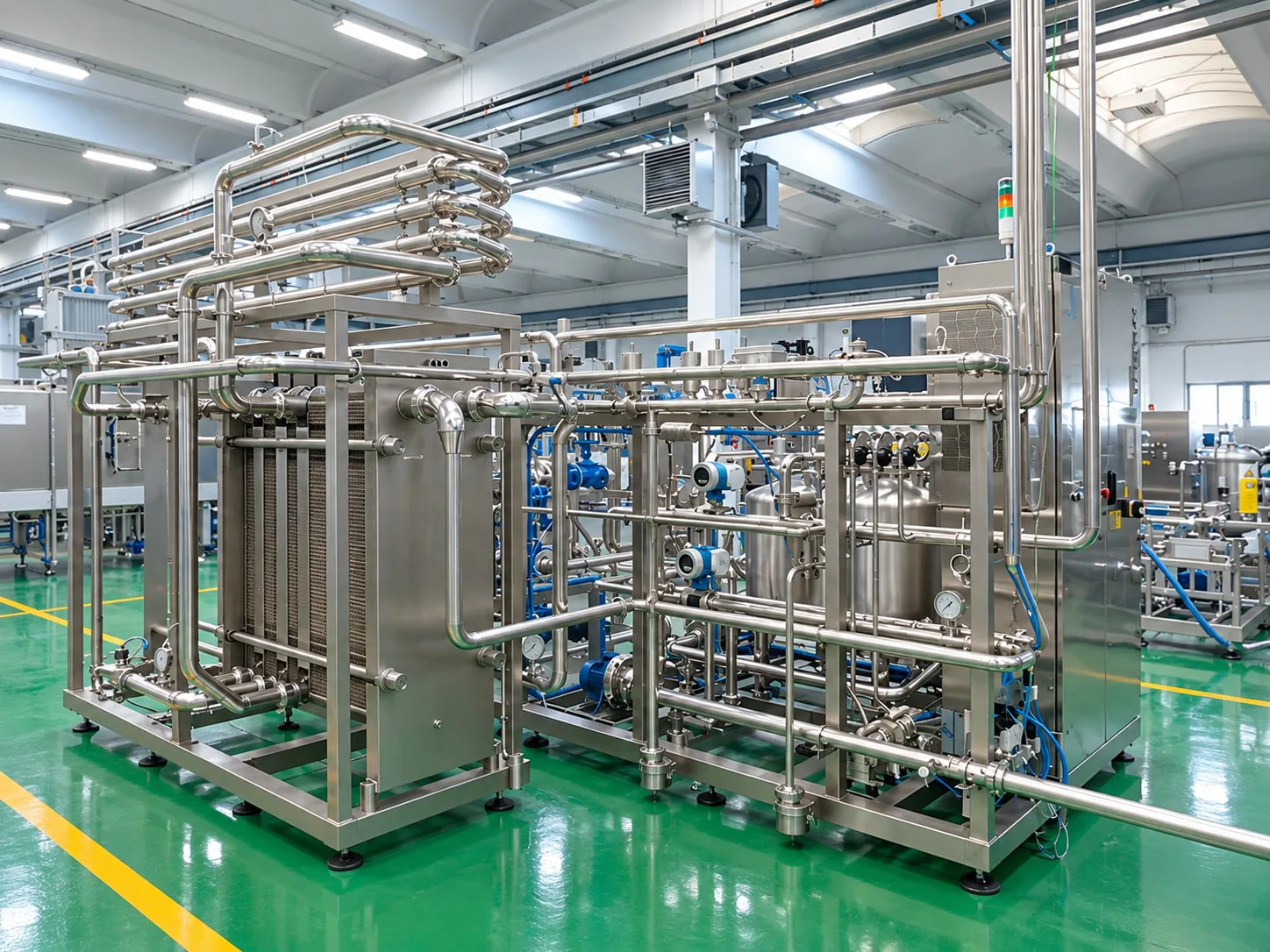

Beverage cooling system
The beverage cooling system efficiently cools the beverage to the required temperature, improving CO₂ absorption and ensuring stable carbonation and filling performance.

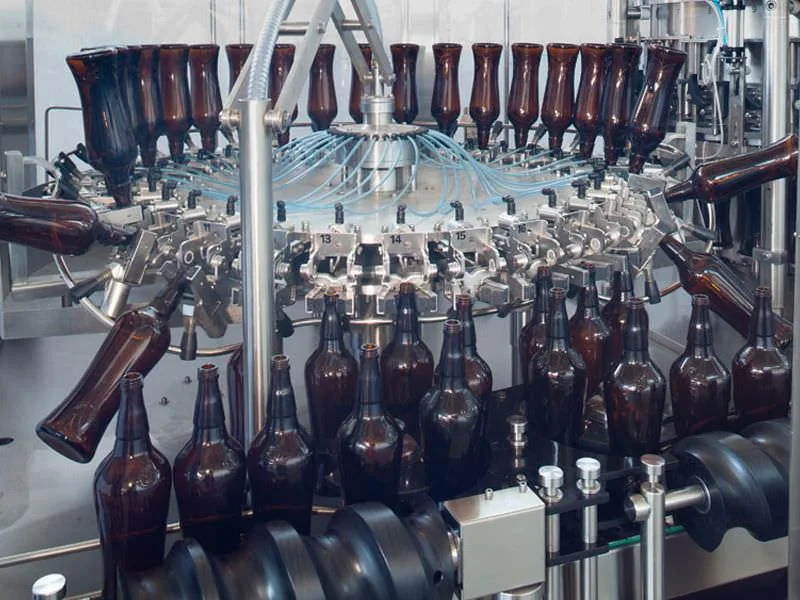

Glass bottle washing or rinsing system
The glass bottle washing or rinsing system effectively removes dust and impurities from glass bottles before filling, ensuring hygienic production and consistent beverage quality.

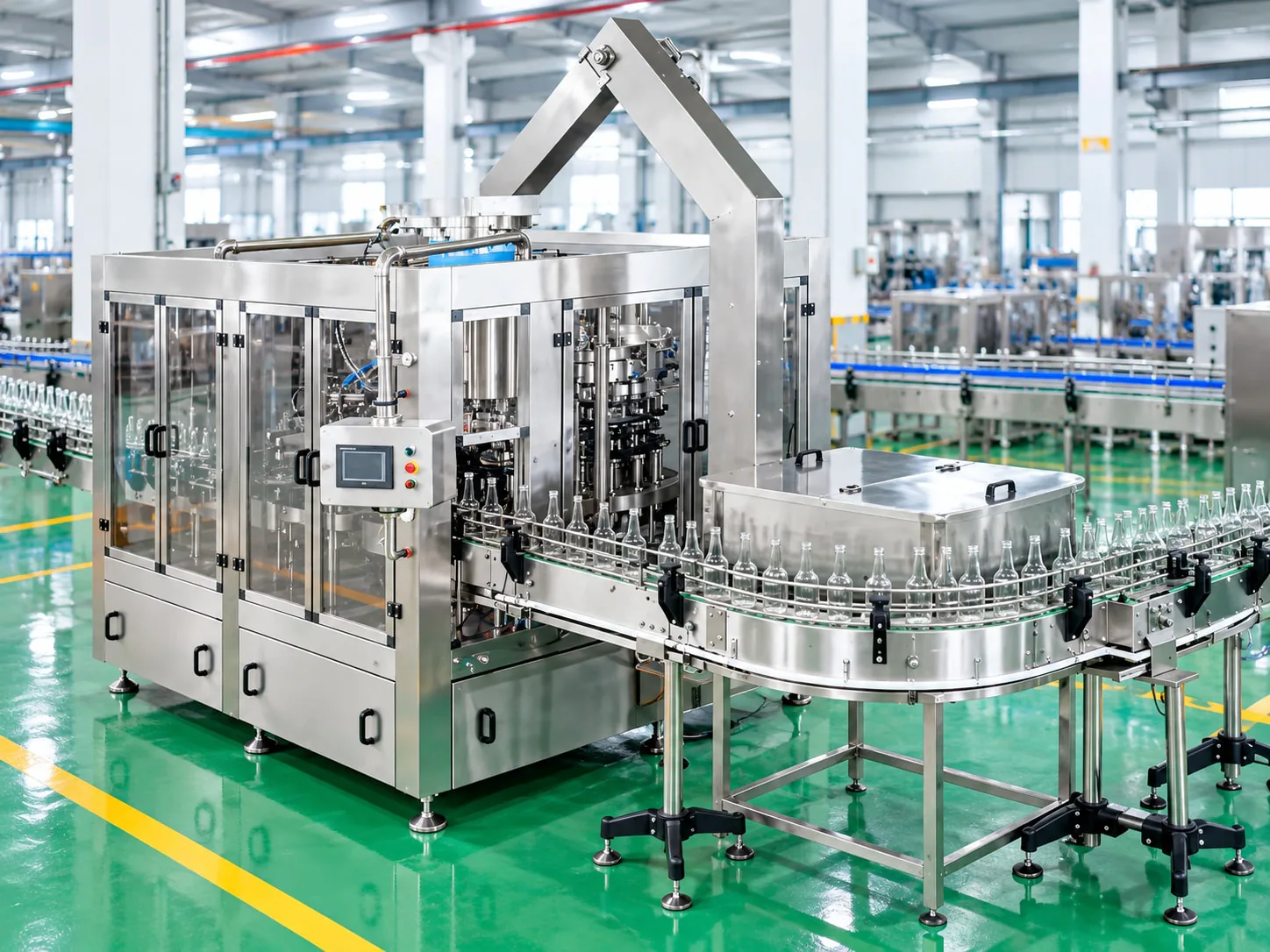

Isobaric glass bottle filling and capping machine
The isobaric glass bottle filling and capping machine ensures precise, low-foam filling of carbonated beverages and secure bottle sealing to maintain carbonation and product quality.
See the machine

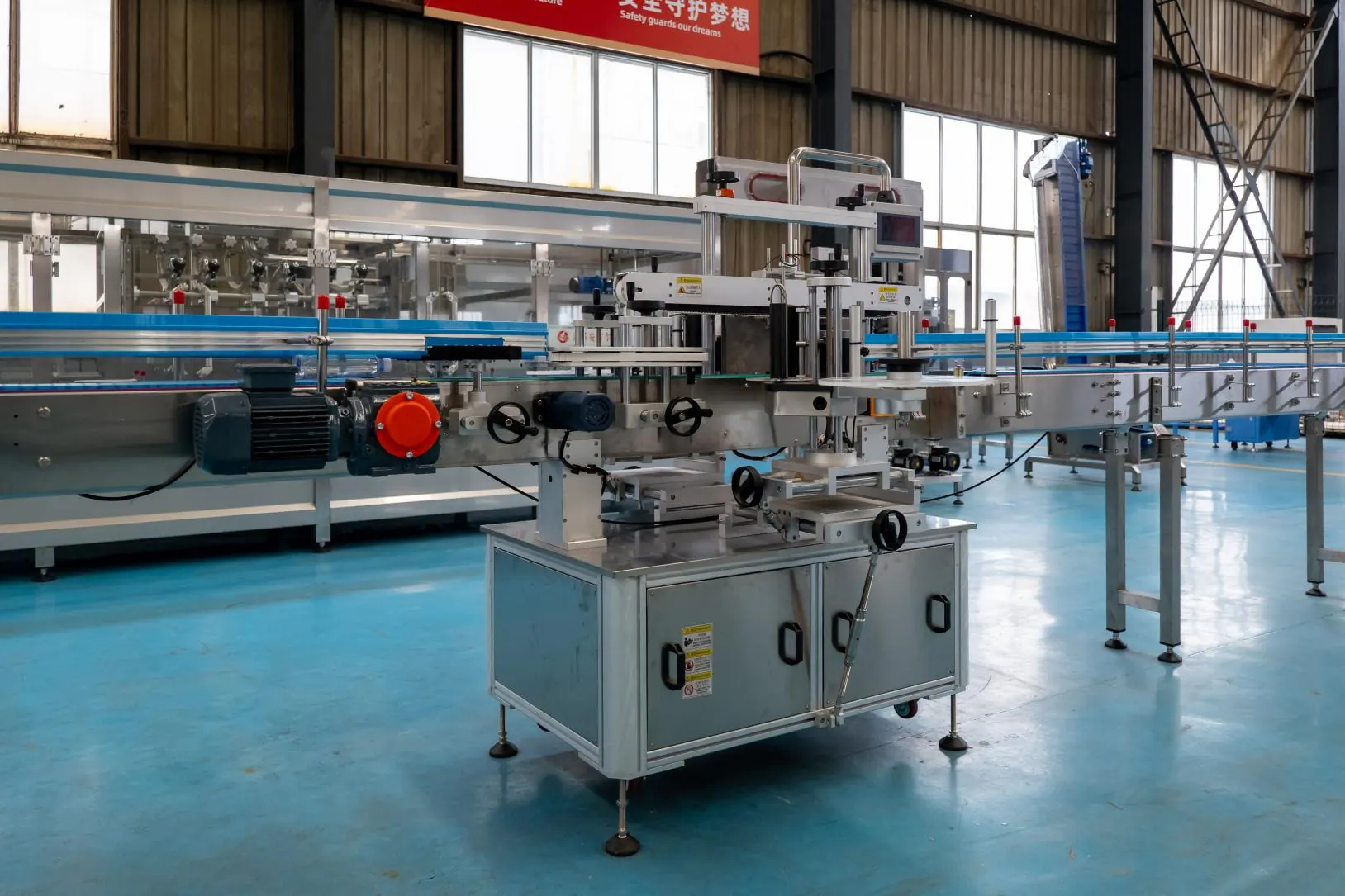

Automatic bottle labeling machine
Supports shrink sleeve labeling, self-adhesive labeling or OPP hot-melt labeling according to bottle design and production requirements.
See the machine

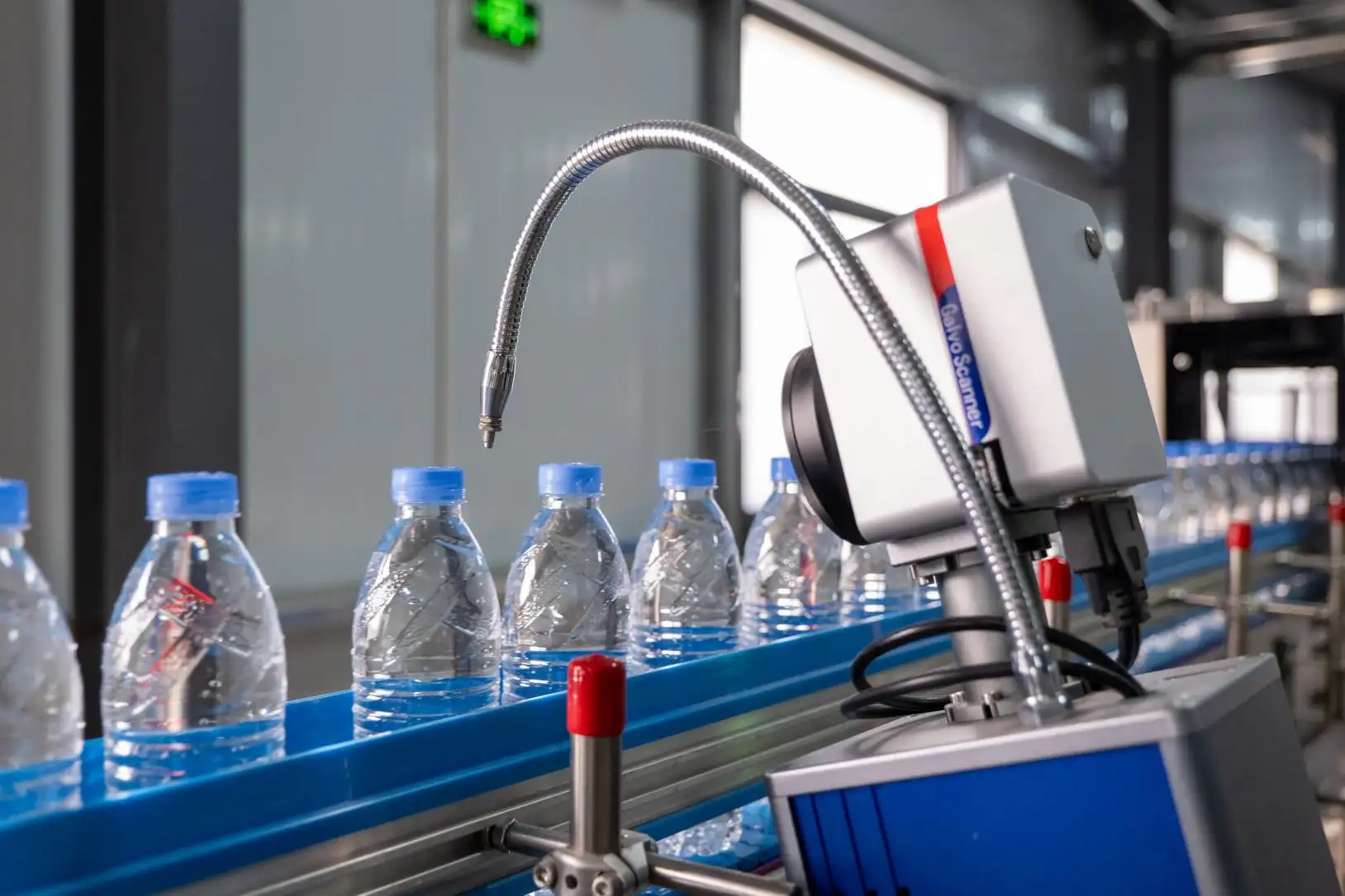

Date and batch coding machine
Prints production dates, batch numbers and other traceability information on bottles or packaging.

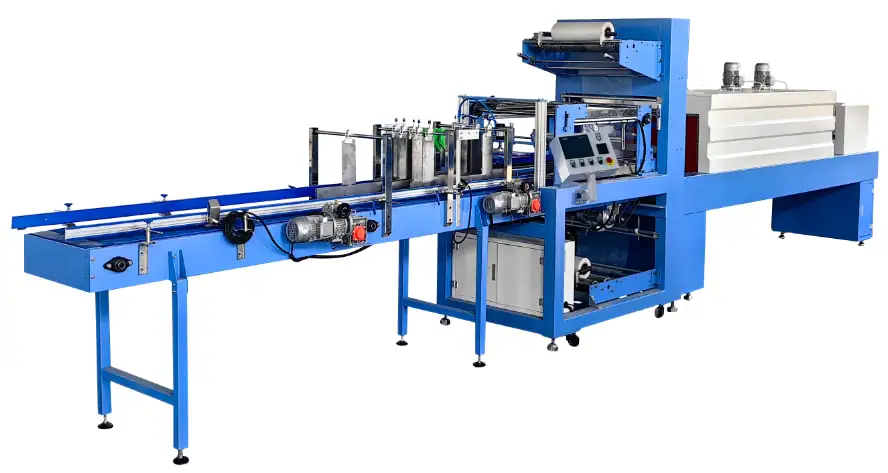

Automatic carton or shrink packing machine
Groups filled bottles into multipacks and wraps them with PE shrink film for convenient handling, storage and transportation.
See the machine
Optional: automatic palletizing system. Cap feeding, cap sterilization, air compressors and conveyors are supplied as auxiliary equipment according to the final configuration.
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

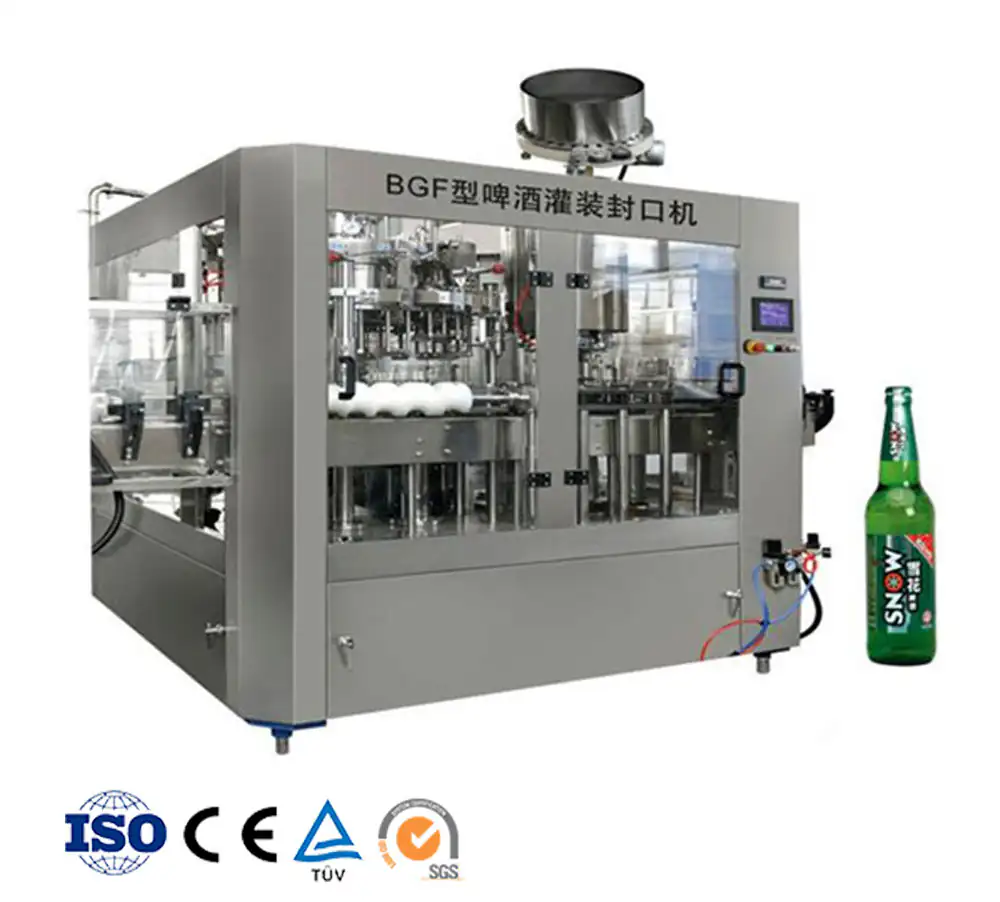

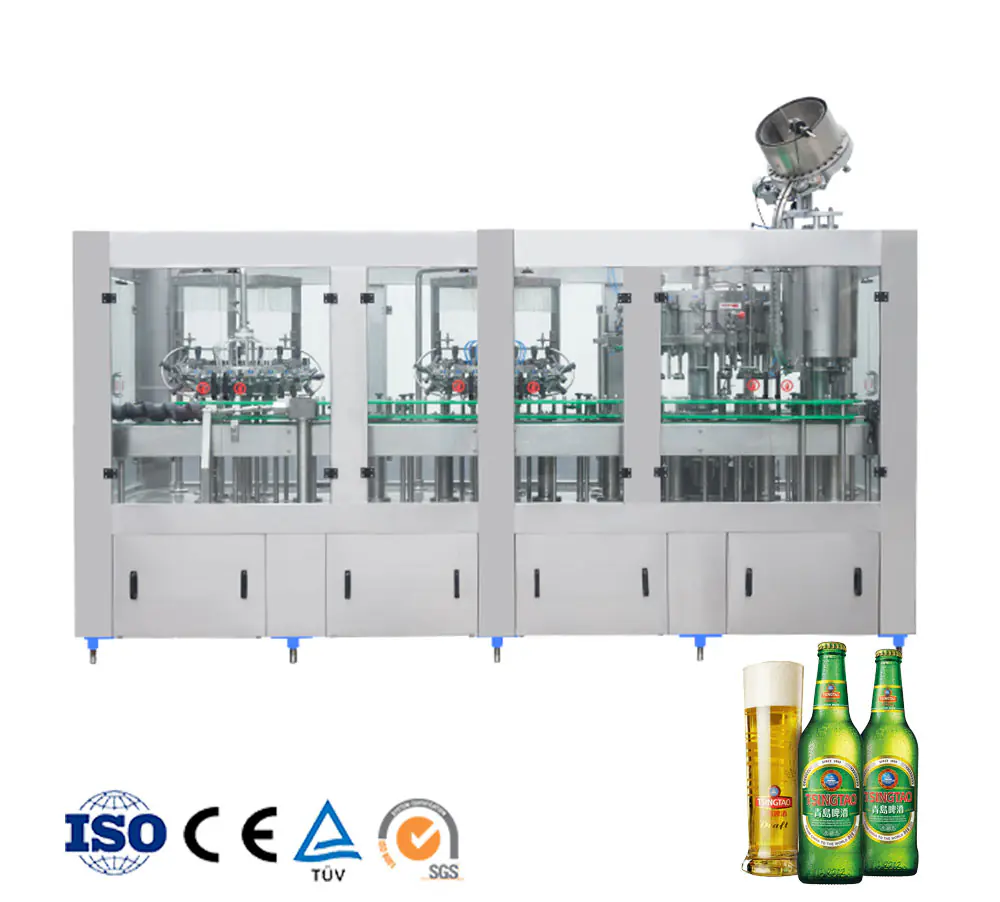

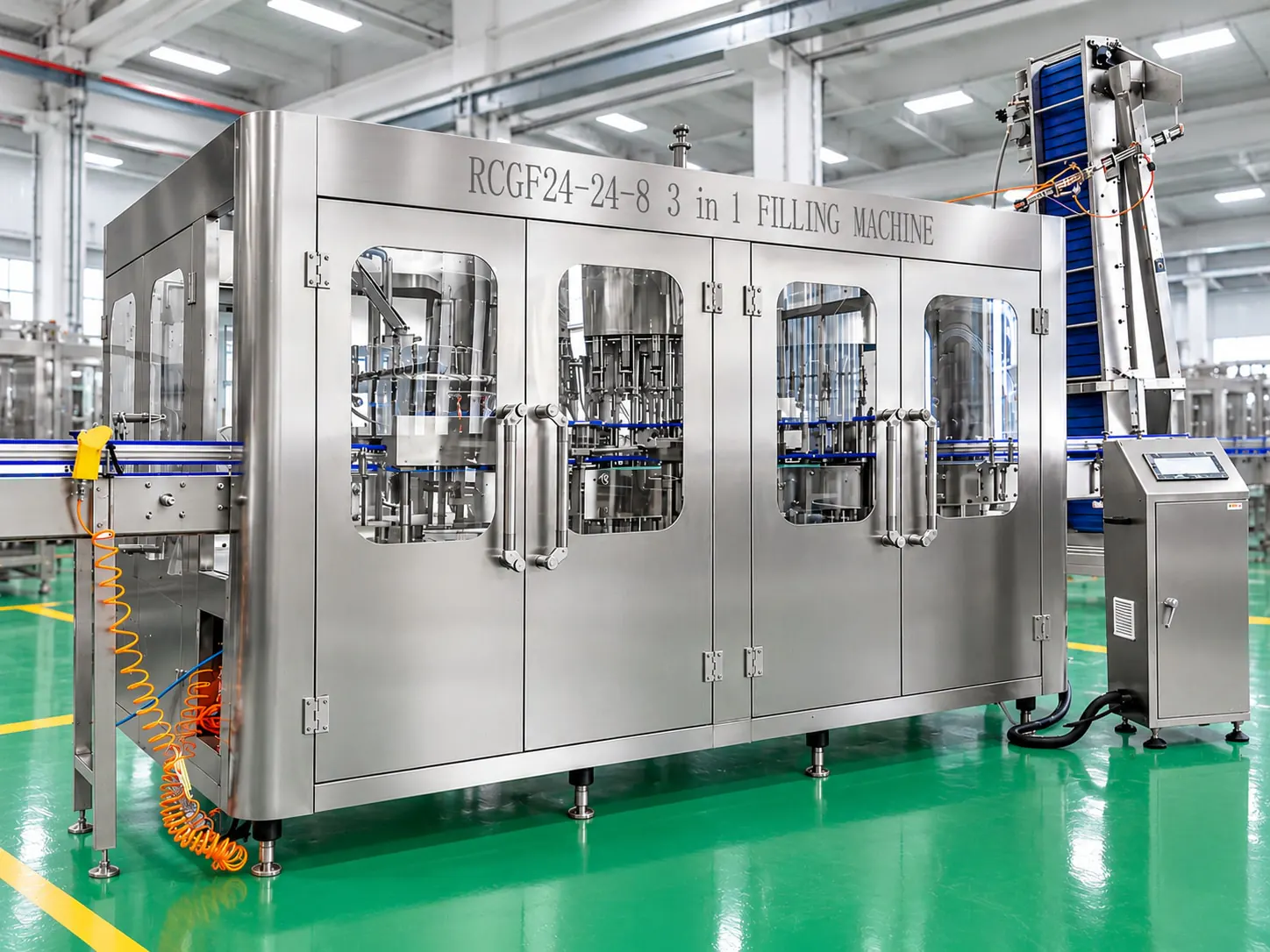

Isobaric glass bottle filling and capping machine
This glass bottle filling machine fills carbonated drinks at low foam under counter-pressure and seals each bottle; it also works as a glass bottle soda filling machine. A carton packer is the usual glass bottle packing machine after it.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

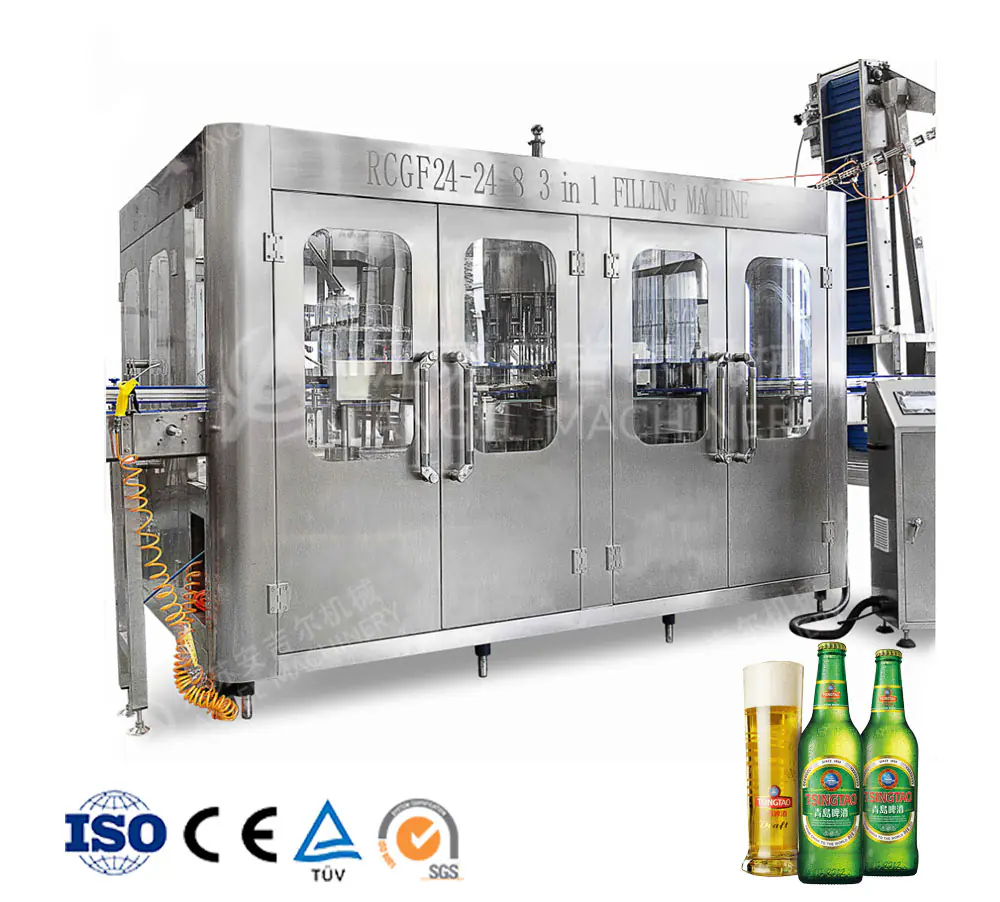

BCGF glass bottle filling machine
Source: Angel Machine 2026 catalogue, page 18.
Swipe to see all models →
| Model | BCGF14-12-6 | BCGF18-18-6 | BCGF24-24-6 | BCGF32-32-10 |
|---|---|---|---|---|
| Washing heads | 16 | 18 | 24 | 32 |
| Filling heads | 12 | 18 | 24 | 32 |
| Capping heads | 6 | 6 | 8 | 10 |
| Production capacity (bottles/h) | 3000-4000 | 5000-6000 | 6000-8000 | 8000-10000 |
| Main motor power (kW) | 3 | 3.8 | 5.5 | 7.5 |
Also consider
For PET bottles, the PET bottle carbonated drink filling line uses the DCGF filler at 2,000–24,000 bottles per hour.
Breweries that also can their beer add a beer can filling line.
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Does the line wash returnable bottles?
A bottle washing machine is added in front of the BCGF for returnable bottles; new bottles only need the rinser built into the filler.
