PET Bottle Juice Filling Line
5,000–20,000 BPH
Complete PET juice and tea bottling solutions with hot filling, cooling, labeling and packaging. Hot filling sterilises the bottle with the product itself; after the juice bottling machine, the cooling tunnel brings the bottles down to labeling temperature and the fruit juice packing machine (shrink wrapper or carton packer) completes the juice packaging machine stage.
Quick answerA PET juice filling line prepares juice or tea, hot-fills it into heat-set PET bottles and cools, labels and packs them. Angel lines include water treatment, juice processing, bottle unscrambling, RCGF hot filling at 5,000–20,000 bottles per hour, cooling, labeling and palletizing.
2026 catalogue · RCGF seriesEquipment in the line
From raw material to pallet, in process order
Each machine is sized to the line output. Click a station for its own page and catalogue table.
Water treatment system
Treats raw water to meet the quality requirements of juice and tea production.
See the machine

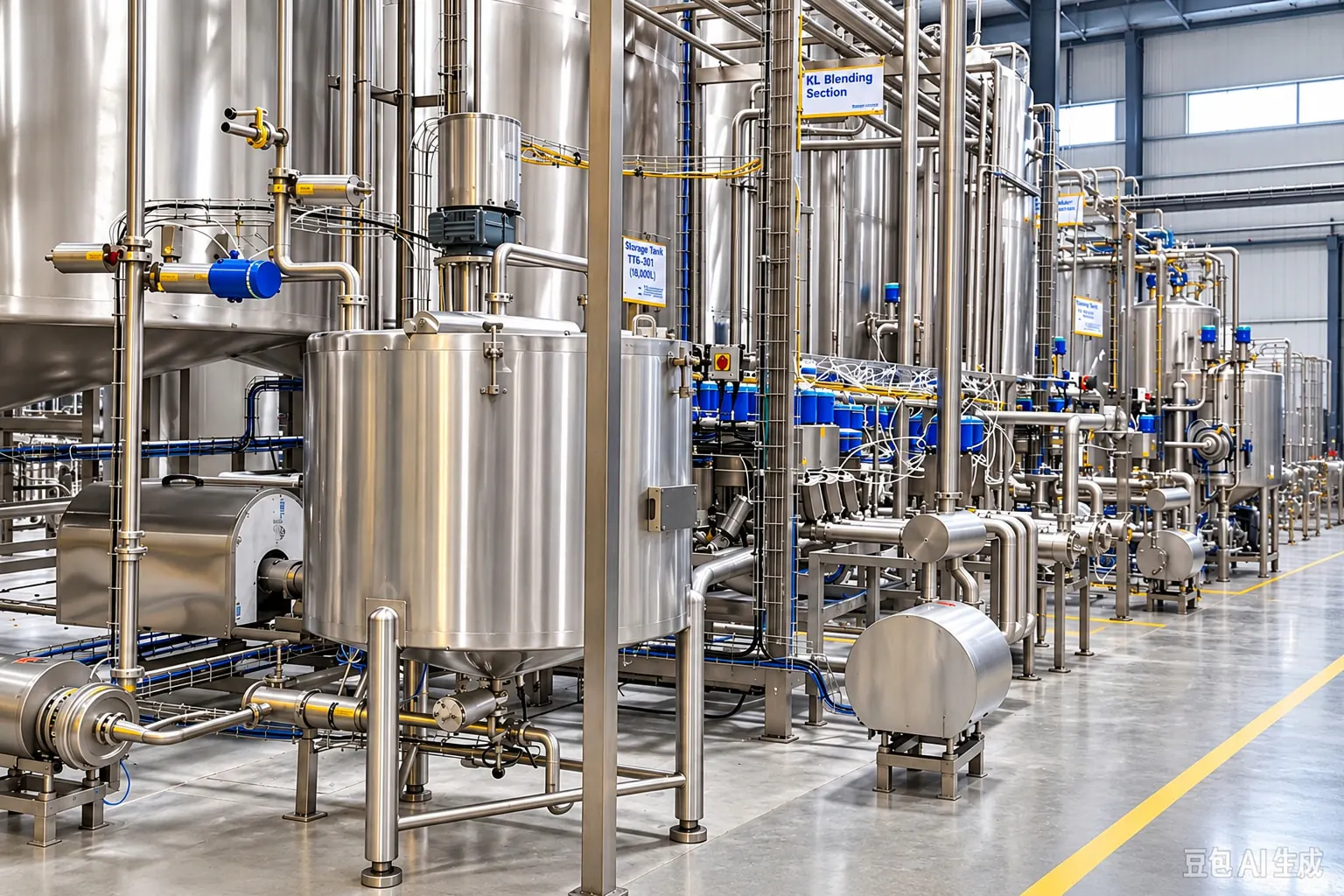

Juice processing system
Mixes and prepares juice or tea before the hot-filling process.

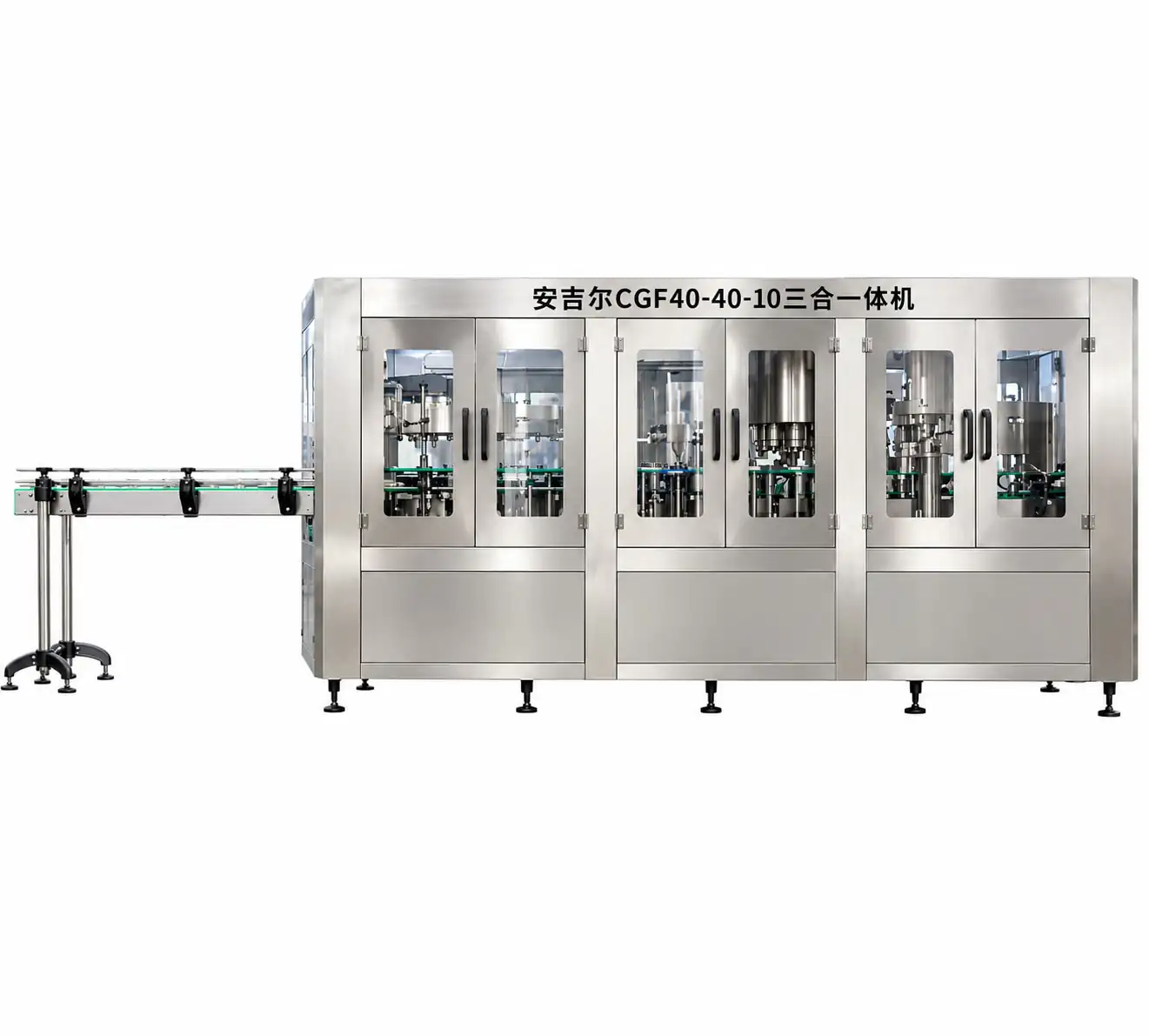

RCGF hot filling machine
Rinses, hot-fills and caps PET bottles in one integrated machine.
See the machine

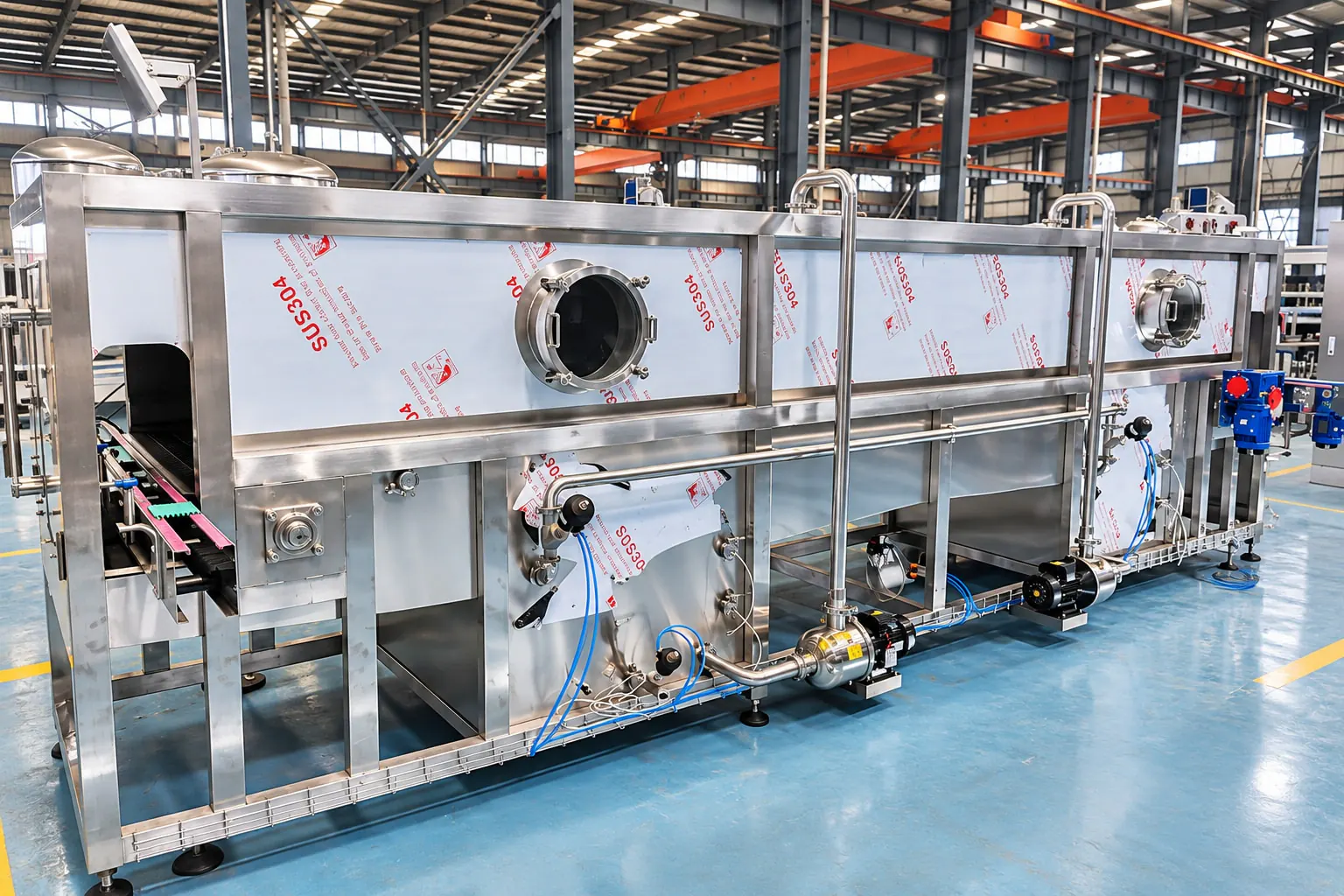

Bottle cooling system
Gradually cools hot-filled bottles before labeling and packing.

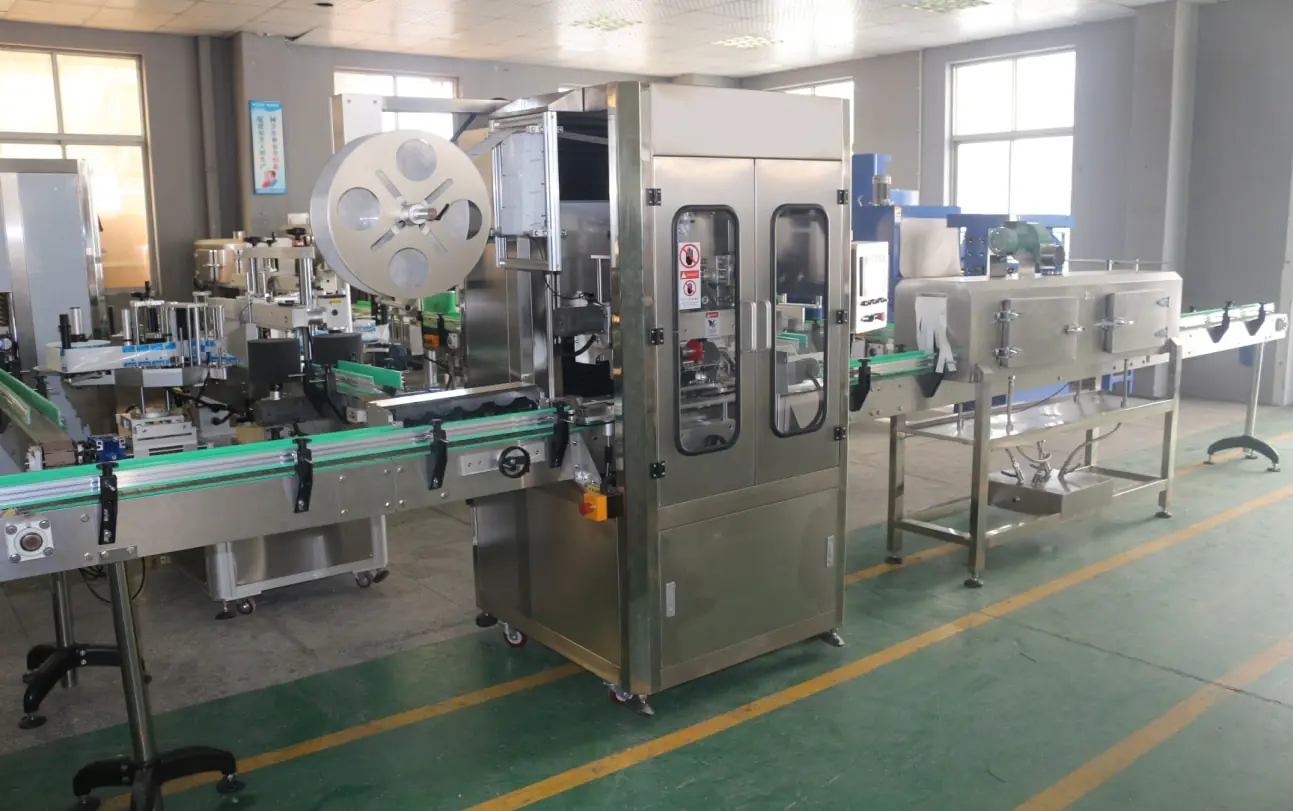

Labeling machine
Applies shrink sleeve, OPP or self-adhesive labels to PET juice bottles.
See the machine
PE film shrink wrapping machine
Groups filled bottles into packs and wraps them with PE shrink film.
See the machine
Fillers for this line
Filling machines for this line
The filler sets the line speed; blowing and packing are matched to it.

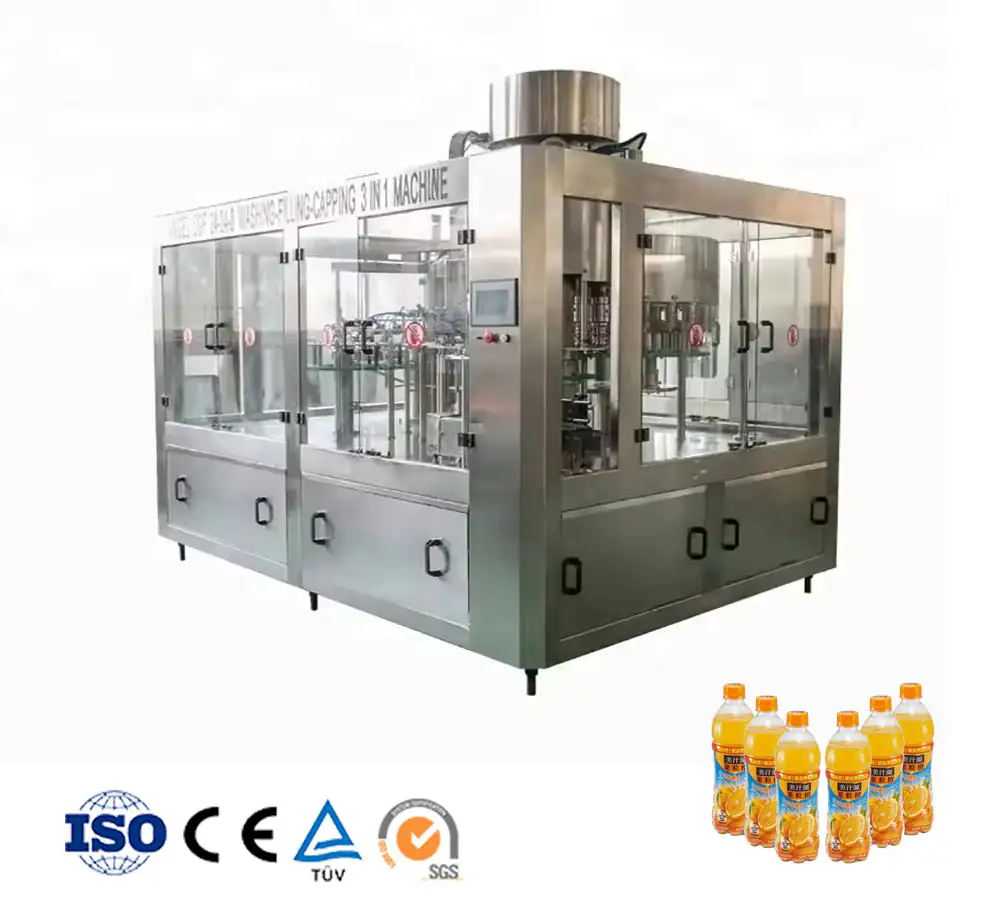

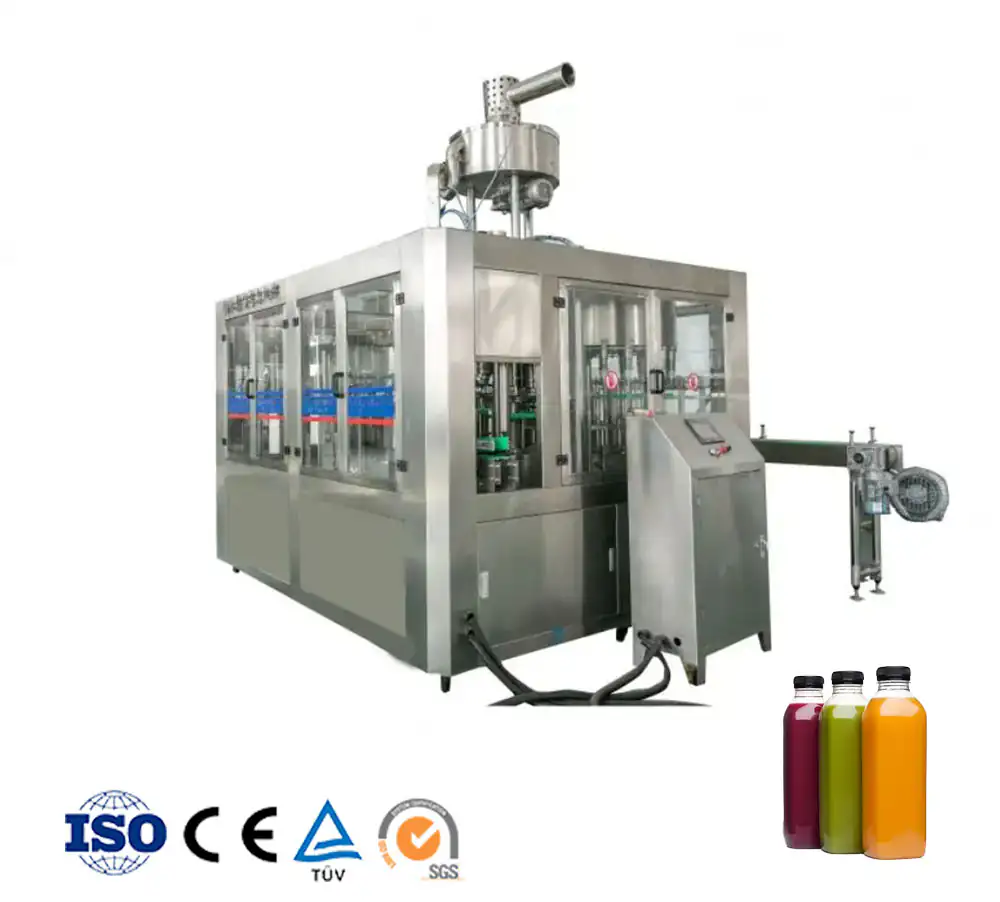

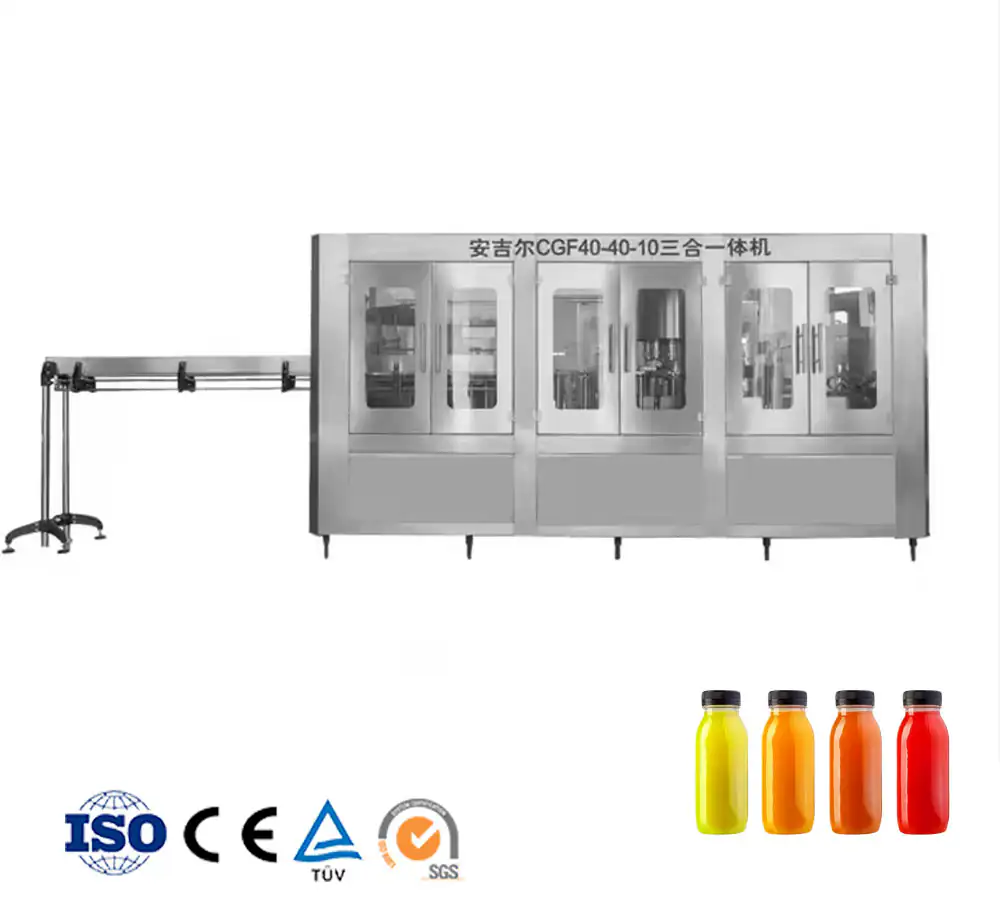

Hot filling machine for juice and tea
Rinses, hot-fills and caps PET bottles in one integrated machine, from 5,000 to 20,000 bottles per hour. Choose the model by output below.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

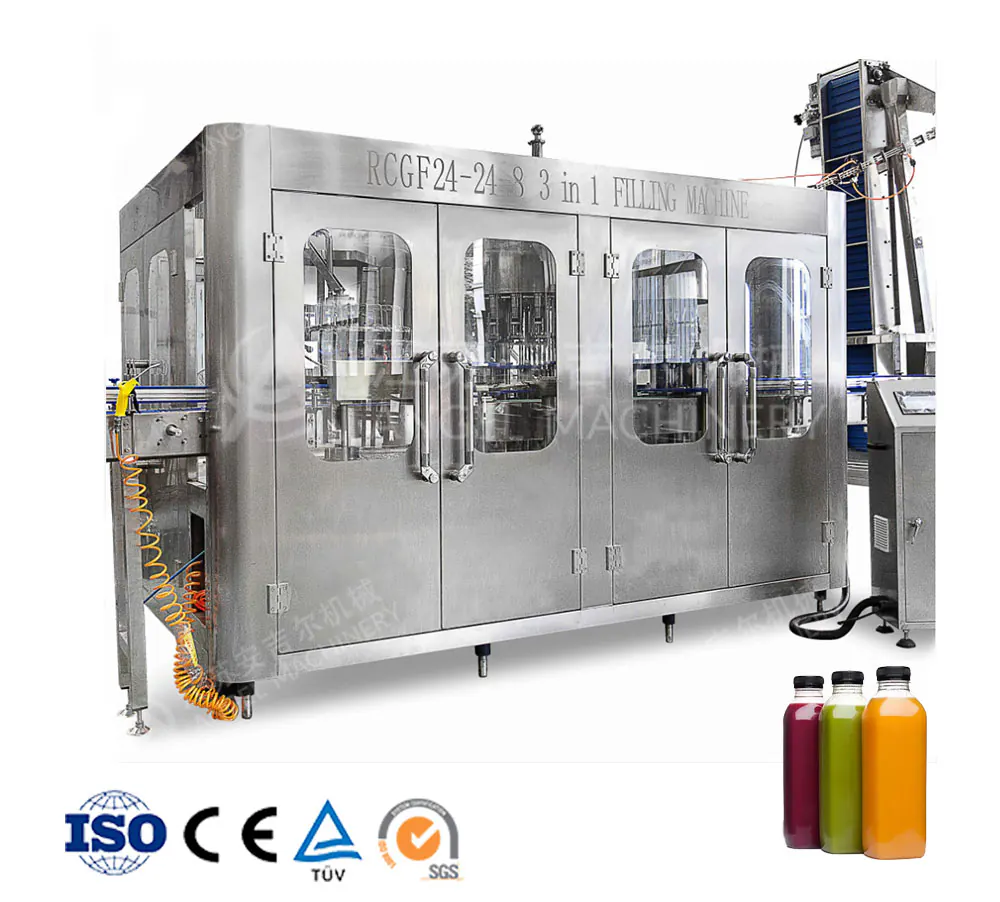

RCGF juice / tea hot filling machine (washing, filling, capping 3-in-1)
Source: Angel Machine 2026 catalogue, page 15.
Swipe to see all models →
| Model | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-12 |
|---|---|---|---|---|---|
| Capacity (500 ml bottles/h) | 5000 | 8000 | 12000 | 16000 | 20000 |
| Bottle shape | Round or square | ||||
| PET bottle (mm) | Diameter Φ50-110, height 160-320 | ||||
| Cap | PE screw cap or crown cap | ||||
| Filling precision | ≤ ±5% | ||||
| Filling pressure (MPa) | 0.15-0.35 | ||||
| Rinsing pressure (MPa) | 0.2-0.25 | ||||
| Total power (kW) | 4.4 | 5.2 | 6.2 | 7.8 | 9.4 |
| Overall size (mm) | 2800×2150×2300 | 3100×2450×2300 | 3800×2800×2500 | 4100×3000×2500 | 5000×3770×2750 |
| Weight (kg) | 4500 | 6500 | 7500 | 8500 | 9500 |
Also consider
Carbonated soft drinks in PET run on the PET bottle carbonated drink filling line, with an isobaric filler in place of the hot filler.

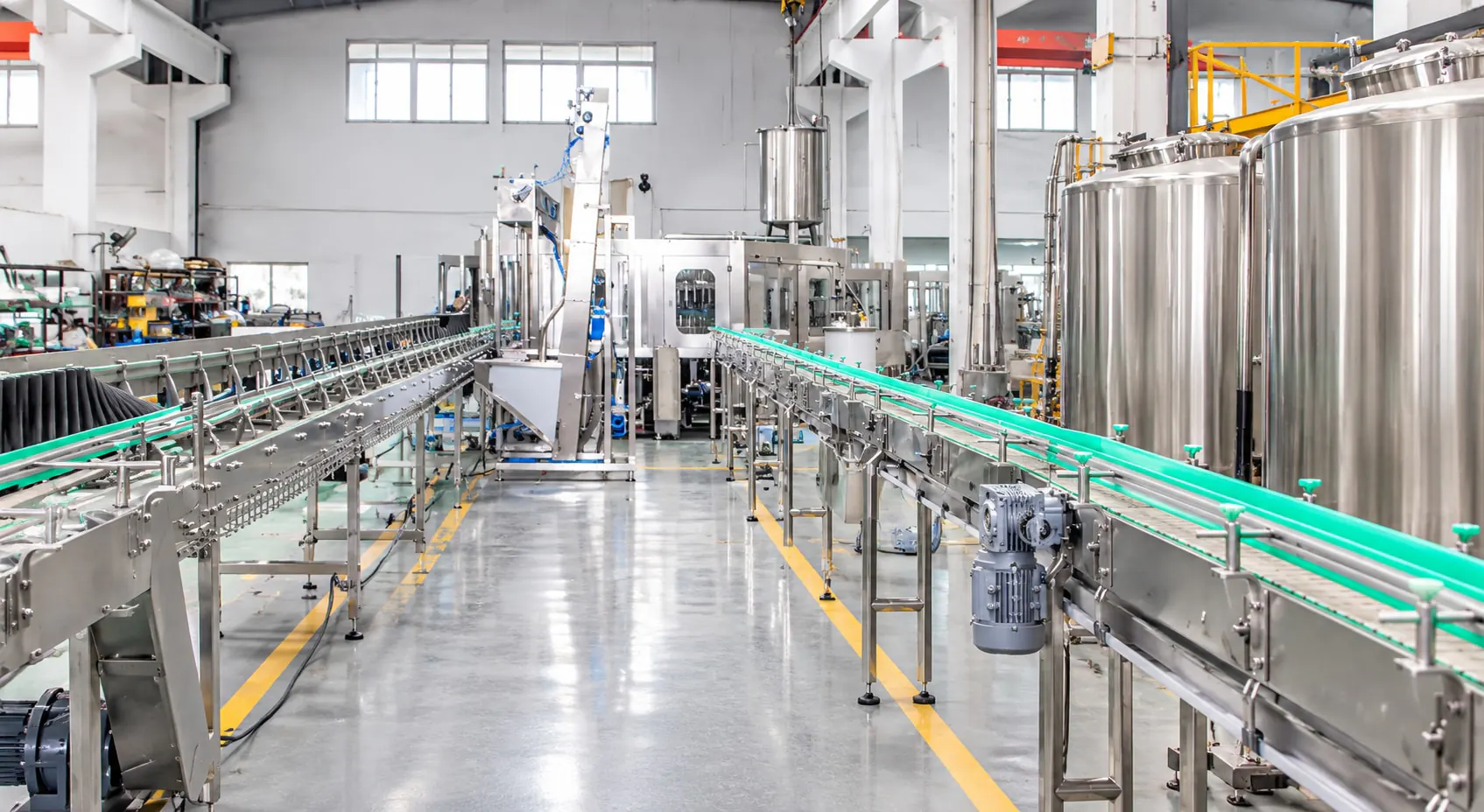

Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Which juice packing machine is used at the end of the line?
A PE film shrink wrapper for PET bottles, or a carton packer for export; both are sized to the hot filler output.
