Juice Filling Machine for Juice and Tea
12000 BPH Hot Filling Machine for Juice and Tea
12,000 BPH
A high-output juice filling machine and tea filling machine for national brands. For larger juice filling lines the RCGF40-40-12 and RCGF50-50-12 reach 16,000 and 20,000 bottles per hour.
- Rated output
- 12,000 bottles/h (500 ml)
- Drinks
- Juice, tea, hot-fill drinks
- Filling
- Hot filling
- Model
- RCGF32-32-10
RCGF32-32-10
Quick answerThe RCGF32-32-10 is Angel’s 12,000 bottles per hour hot filling machine for juice and tea: 32 rinsing, 32 filling and 10 capping heads, 0.15–0.35 MPa filling pressure, 6.2 kW, about 3,800 × 2,800 × 2,500 mm and 7,500 kg.
Inside the machine
Three stations, one frame
Bottles are carried by the neck from the rinser to the filler and the capper without being set down.

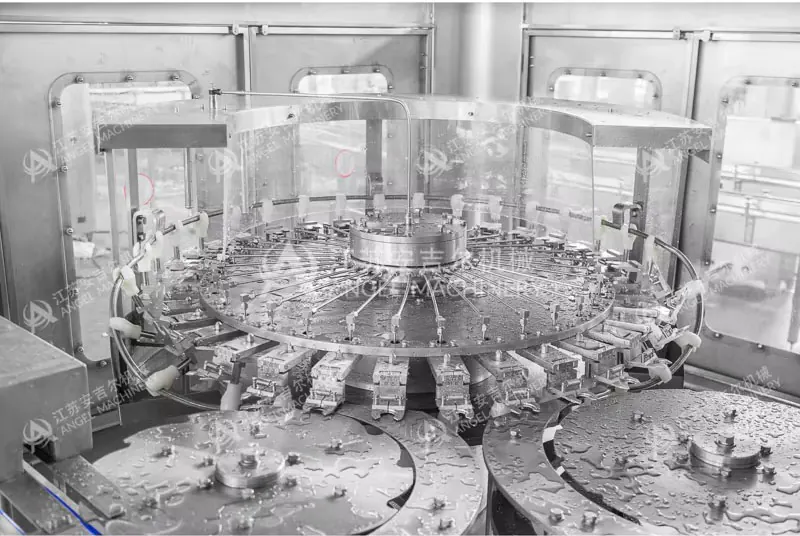

Rinsing
Bottles are held by the neck and inverted for rinsing. Rinsing pressure is 0.2–0.25 MPa. Changing bottle height only needs the conveyor chain height adjusted.

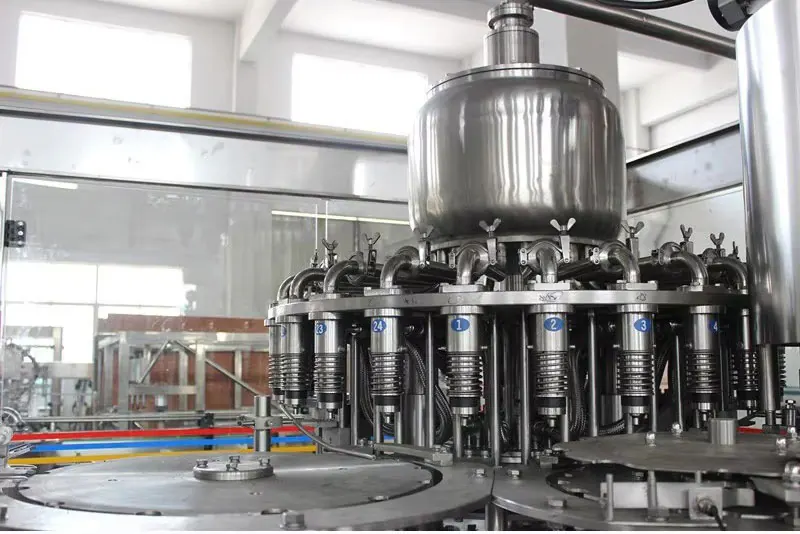

Hot filling
Product is supplied at constant pressure through a balance tank and vacuum system. A temperature controller keeps the product at hot-fill temperature, and filling pressure is 0.15–0.35 MPa with ±5% accuracy.

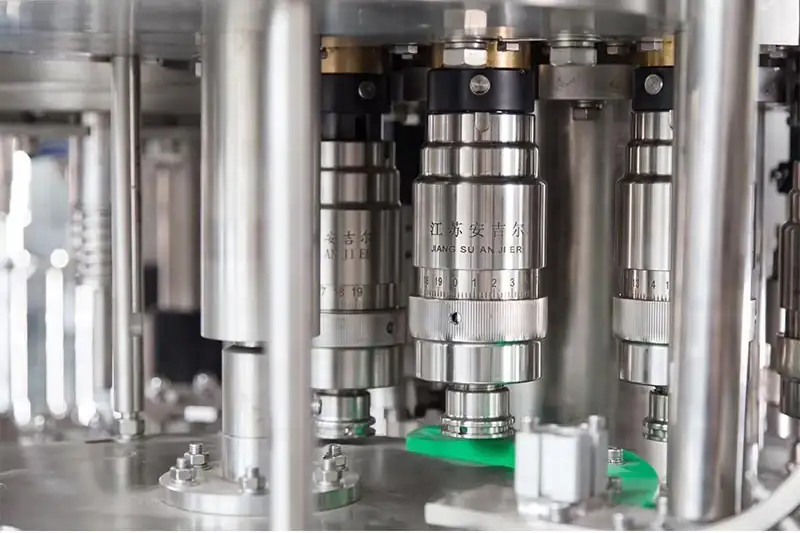

Capping
PE screw caps or crown caps are applied in the same monoblock, so the bottle is closed while the product is still hot.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
RCGF juice / tea hot filling machine (washing, filling, capping 3-in-1)
Source: Angel Machine 2026 catalogue, page 15. Highlighted: RCGF32-32-10.
Swipe to see all models →
| Model | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-12 |
|---|---|---|---|---|---|
| Capacity (500 ml bottles/h) | 5000 | 8000 | 12000 | 16000 | 20000 |
| Bottle shape | Round or square | ||||
| PET bottle (mm) | Diameter Φ50-110, height 160-320 | ||||
| Cap | PE screw cap or crown cap | ||||
| Filling precision | ≤ ±5% | ||||
| Filling pressure (MPa) | 0.15-0.35 | ||||
| Rinsing pressure (MPa) | 0.2-0.25 | ||||
| Total power (kW) | 4.4 | 5.2 | 6.2 | 7.8 | 9.4 |
| Overall size (mm) | 2800×2150×2300 | 3100×2450×2300 | 3800×2800×2500 | 4100×3000×2500 | 5000×3770×2750 |
| Weight (kg) | 4500 | 6500 | 7500 | 8500 | 9500 |
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What goes after a 12,000 bottles per hour hot filler?
A bottle cooling tunnel sized to the same output, then labeling, coding, shrink wrapping and palletizing.
