Cartons and shrink packs
Palletizer Machine for Beverage Lines
Low level palletizer machine for cartons and shrink packs, PLC and touch screen, side-box infeed, more than 30% lower cost than robot palletizing.
End of line
Bottle Packing Machines: Labeling, Shrink Wrapping and Palletizing
Label, wrap, carton, palletize
A water bottle packing machine is usually a shrink wrapper; glass bottles usually go into cartons. Each bottle packaging machine below is sized to the filler so the line runs at one speed from filling to pallet.

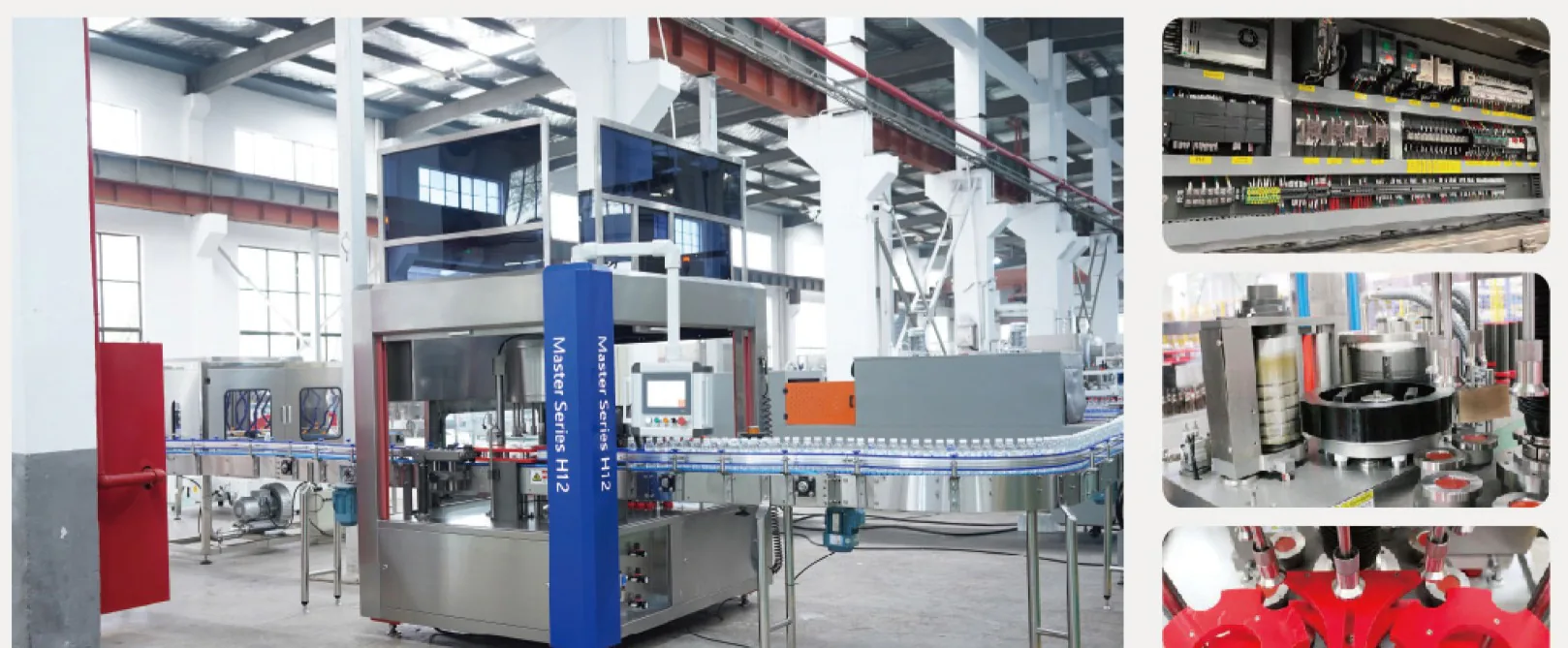

Quick answerBottle packing machines label, group and pack filled bottles and cans for shipping. Angel supplies shrink sleeve, OPP hot-melt, self-adhesive and cold-glue labeling machines, PE film shrink wrapping machines, carton packing machines and erectors, palletizers, bottle unscramblers and conveyors, each sized to the filler.
Models
Bottle Packing Machines: Labeling, Shrink Wrapping and Palletizing models by output
Choose by rated output first. Inquire to receive the price for your bottle and output.
20–25 packs/min
Automatic Shrink Wrapping Machine for Bottles
Automatic PE film shrink wrapping machine for PET bottle packs, 20–25 packs/min, film 0.03–0.10 mm, plus the semi-automatic BZJ-5038B bottle packing machine.
150–250 bottles/min
Shrink Sleeve Labeling Machine
Automatic PVC shrink sleeve labeling machine, TB-150 and TB-250, 150 or 250 bottles/min, bottles Φ28–125 mm, with steam or hot-air shrink tunnel.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
TB series auto shrink sleeve labeling machine (double heads)
Source: Angel Machine 2026 catalogue, page 23.
| Model | TB-150 | TB-250 |
|---|---|---|
| Input power (kW) | 1.5 | 3.0 |
| Input voltage (V) | 380/220 AC | |
| Output (bottles/min) | 150 | 250 |
| Main machine size (mm) | L1600×W850×H2000 | |
| Bottle body diameter (mm) | Φ28-Φ125 | |
| Label length (mm) | 30-250 | |
| Label thickness (mm) | 0.03-0.13 | |
| Paper core inner diameter (inch) | 5-10 (adjustable) | |
Note: In the catalogue the label 'thickness' and 'length' values are swapped (30-250 mm vs 0.03-0.13 mm). Shown here with the units that make physical sense; confirm with Angel.

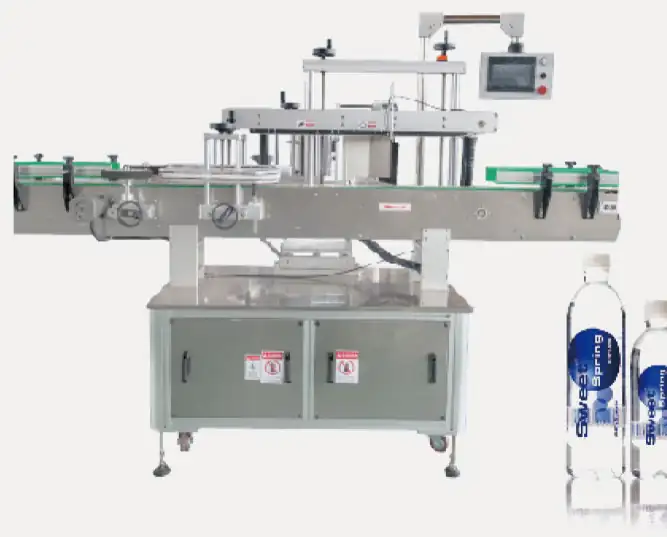

Automatic self-adhesive labeling machine
Source: Angel Machine 2026 catalogue, page 25.
| Speed (bottles/min) | 50-100 |
|---|---|
| Bottle size (mm) | Width <80, label height <180 |
| Power | 500 W, 220 V, 1 phase, 50-60 Hz |
| Overall dimensions (mm) | L1800×W1000×H1500 |
| Weight (kg) | 420 |
| Label positions | Single label; front and back; neck, front and back |

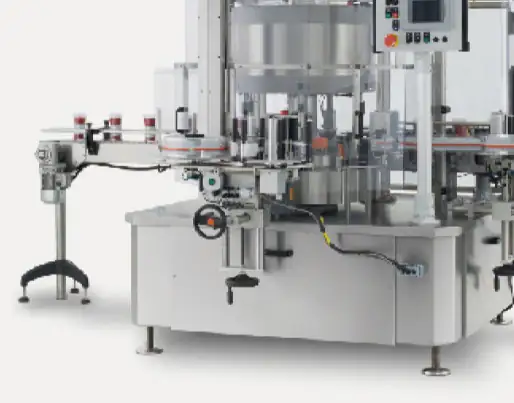

Automatic cold glue labeling machine
Source: Angel Machine 2026 catalogue, page 25.
| Output (bottles/h) | 3000-12000 |
|---|---|
| Label width (mm) | 50-130 |
| Label magazine (labels) | 7000 |
| Main motor power (kW) | 3 |
| Air pressure (MPa) | 0.35-0.5 |
| Air flow (m³/min) | 0.9 |
| Weight (kg) | 2000 |
| Overall dimensions (mm) | L1800×W1400×H2000 |
Linear type automatic PE film shrink wrapping machine
Source: Angel Machine 2026 catalogue, page 26.
| Power (kW) | 28 |
|---|---|
| Air consumption (m³/h) | 25, ≥0.6 MPa |
| Speed (packs/min) | 20-25 |
| Bottle diameter (mm) | Φ60-90, height ≤330 |
| PE film (mm) | Thickness 0.03-0.10, width ≤600 |
| Weight (t) | 1.5 |
| Overall dimensions (mm) | L12000×W1100×H2100 |
| Max. pack size (mm) | L2400×W650×H450 |
Drop type carton packing machine
Source: Angel Machine 2026 catalogue, page 27.
| Containers | Round bottle, glass bottle, PET bottle, can |
|---|---|
| Bottle volume (ml) | 250-2000 |
| Bottle height (mm) | 100-350 |
| Bottle diameter (mm) | 57-100 or larger |
| Capacity (cartons/min) | 15 |
| Machine dimensions (mm) | L6285×W2582×H2115 |
| Carton size (mm) | 550 < L+W+H < 1000 |
| Adhesive setting time (s) | 1.5-2 |
| Working air pressure (MPa) | 0.4-0.7 |
| Power (kW) | 6 |
| Weight (kg) | 4000 |

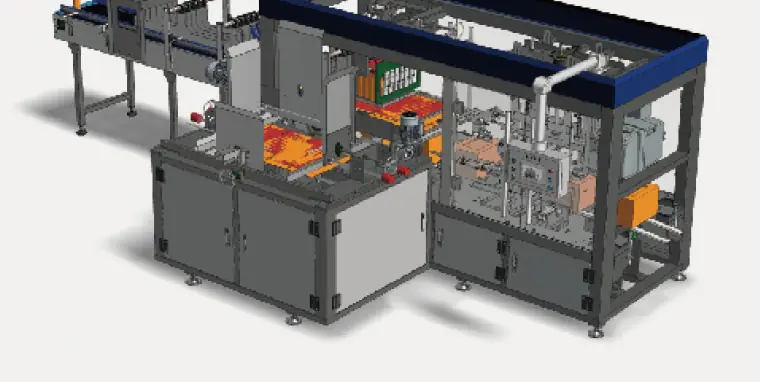

Carton forming, packing and sealing machine
Source: Angel Machine 2026 catalogue, page 27.
| Speed (cartons/min) | 12-15 |
|---|---|
| Carton magazine | 100 pcs (1000 mm) |
| Carton size (mm) | L250-450 × W150-400 × H100-400 |
| Power supply | 110/220 V, 50/60 Hz, 1 phase |
| Power (kW) | 2.44 |
| Tape width (mm) | 48 / 60 / 75 (one type) |
| Compressed air (kg/cm²) | 6 |
| Carton erector (mm) | L2000×W1900×H1450 |
| Case packer (mm) | L1900×W1000×H3500 |
| Case sealer (mm) | L1170×W900×H1350 |

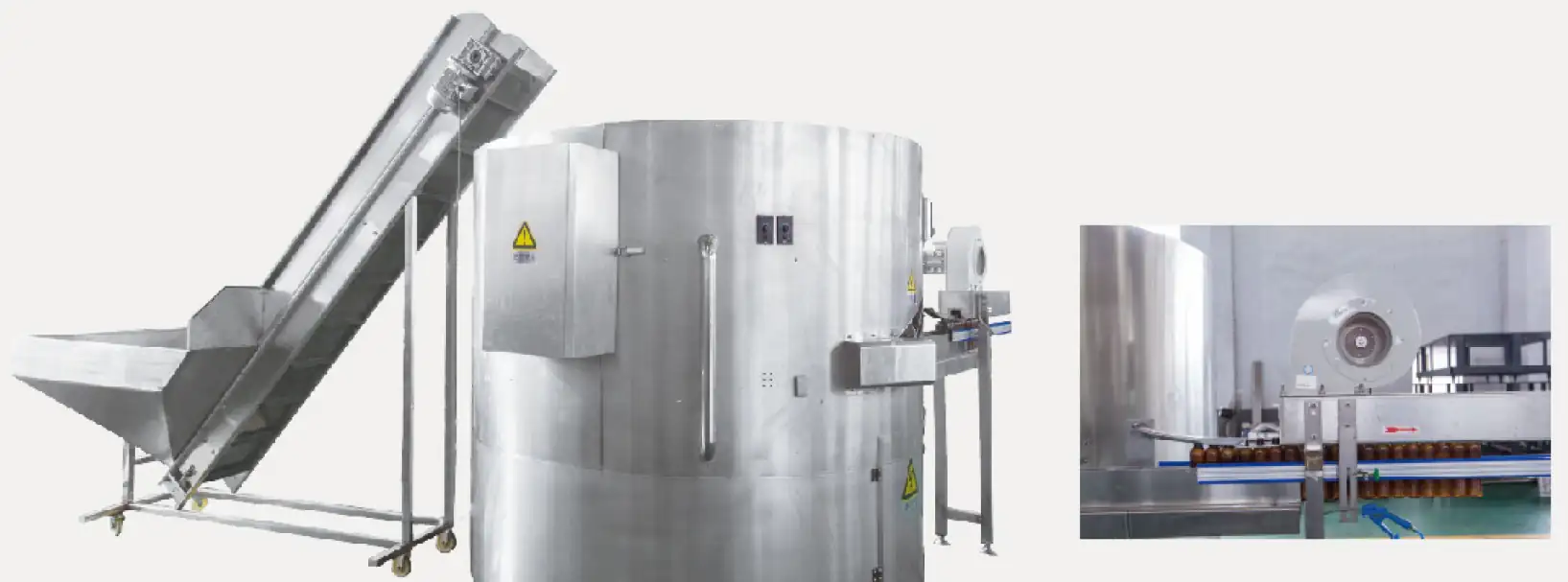

LP series bottle unscrambler
Source: Angel Machine 2026 catalogue, page 21.
Swipe to see all models →
| Model | LP-16 | LP-18 | LP-21 |
|---|---|---|---|
| Working positions | 16 | 18 | 21 |
| Production capacity (bottles/h) | 8000-10000 | 12000-15000 | 18000-20000 |
| Air pressure (MPa) | 0.7 | ||
| Air consumption (m³/min) | 0.5 | ||
| Suitable bottles | 350-1200 ml, Φ50-Φ90 | 350-1250 ml, H 150-290 | 350-1250 ml, H 150-290 |
| Main motor power (kW) | 2.2 | 3.0 | 5.5 |
| Fan power (kW) | 2.2 | ||
| Dimensions (mm) | Φ2056×2150 | Φ2650×2290 | Φ2800×2400 |
| Weight (kg) | 3500 | 4200 | 5200 |

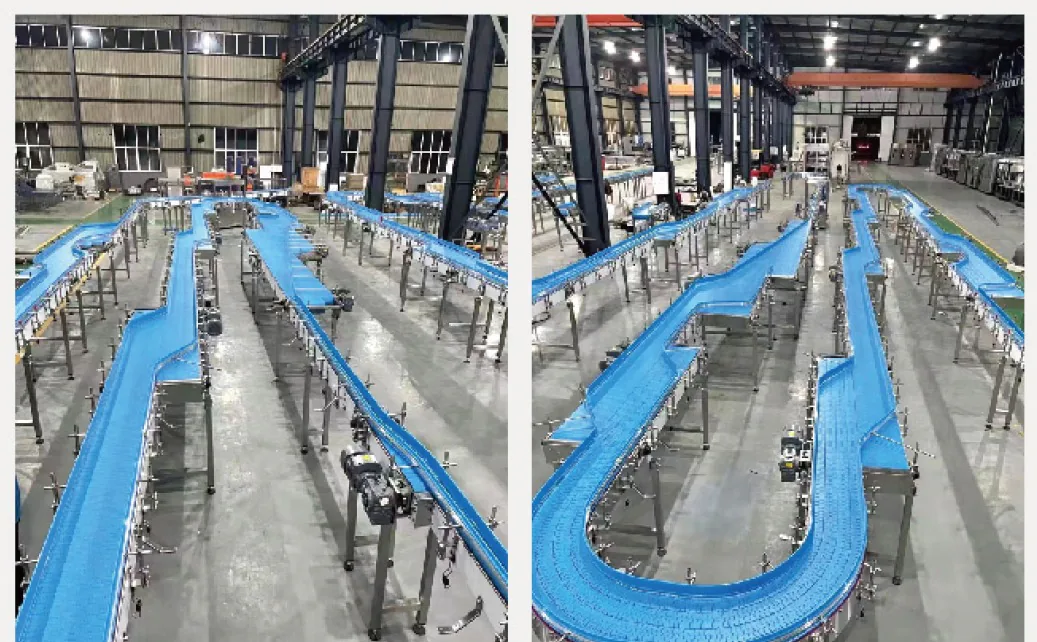

Belt chain conveyor and empty bottle air conveyor
Source: Angel Machine 2026 catalogue, page 22.
| Chain conveyor height | 1050 mm |
|---|---|
| Chain conveyor side plates | SUS304, 2 mm |
| Chain conveyor power | 0.75 kW |
| Legs, trunking, covers, bearing blocks | SUS304 |
| Chain plates | POM plastic |
| Air conveyor fan | DF-9, 2.2 kW per unit |
| Air conveyor frame | SUS304 2B plate, 1.5 mm |
| Bottleneck guides | UHMW polyethylene |
| Air filter | G4 (Camfil, Sweden) |
| Breakers and contactors | Schneider |
Also consider
At the end of a PET water bottling line the shrink wrapper follows the labeler and the date coder.
Glass bottles usually go into cartons, as on the glass bottle carbonated drink filling line.
Photos
From the workshop and the catalogue
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Which labeling machine suits my bottle?
Shrink sleeves cover shaped bottles fully; OPP hot-melt wraps round bottles at high speed; self-adhesive suits front, back and neck labels; cold glue suits paper labels on glass beer bottles.
02Shrink film or carton?
Shrink film costs less per pack for water and soft drinks; cartons protect glass bottles and suit long-distance shipping.
