Bottle Packing Machines: Labeling, Shrink Wrapping and Palletizing
Shrink Sleeve Labeling Machine
150–250 bottles/min
A bottle labeling machine for full-body or neck sleeves on water, juice and soft drink bottles; the sleeve also works as a tamper band. Other labeling machine types (OPP hot-melt, self-adhesive, cold glue) are on the packing page.
- Speed
- 150 or 250 bottles/min
- Bottle diameter
- Φ28–125 mm
- Label length
- 30–250 mm
- Voltage
- 380/220 V AC
Quick answerA shrink sleeve labeling machine cuts a printed sleeve from the roll, places it over the bottle and shrinks it on. Angel’s TB-150 and TB-250 PVC sleeve labeling machines run 150 and 250 bottles per minute on bottles 28–125 mm in diameter, with 1.5 and 3.0 kW input power.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.

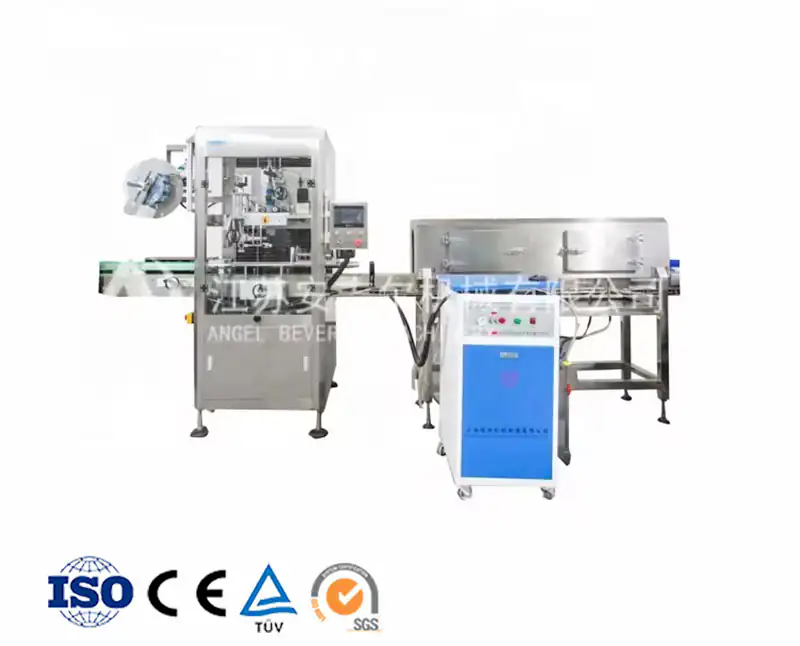

TB series auto shrink sleeve labeling machine (double heads)
Source: Angel Machine 2026 catalogue, page 23.
| Model | TB-150 | TB-250 |
|---|---|---|
| Input power (kW) | 1.5 | 3.0 |
| Input voltage (V) | 380/220 AC | |
| Output (bottles/min) | 150 | 250 |
| Main machine size (mm) | L1600×W850×H2000 | |
| Bottle body diameter (mm) | Φ28-Φ125 | |
| Label length (mm) | 30-250 | |
| Label thickness (mm) | 0.03-0.13 | |
| Paper core inner diameter (inch) | 5-10 (adjustable) | |
Note: In the catalogue the label 'thickness' and 'length' values are swapped (30-250 mm vs 0.03-0.13 mm). Shown here with the units that make physical sense; confirm with Angel.
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Steam or hot-air shrink tunnel?
Steam gives an even shrink on shaped bottles; hot air suits simple round bottles and dry environments. Both are supplied with the labeler.
