20000 BPH PET Bottling Machine for Water
20,000 BPH
For brands that run one high speed water filling machine instead of several small ones. In a water filling plant of this size the line speed is usually set by the blow molder and the packer, so we size the whole PET bottling line together with the filler.
- Rated output
- 20,000 bottles/h (500 ml)
- Liquids
- Still, pure, RO and mineral water
- Filling
- Gravity
- Bottle
- PET
XGF40-40-10 / XGF50-50-12
Quick answerA 20,000 bottles per hour PET bottling machine for water is the XGF40-40-10 (rated 15,000–20,000 bottles/h) or, with headroom, the XGF50-50-12 (20,000–24,000 bottles/h). Both handle 50–115 mm PET bottles 160–320 mm high and use 8.1 kW and 10.2 kW.

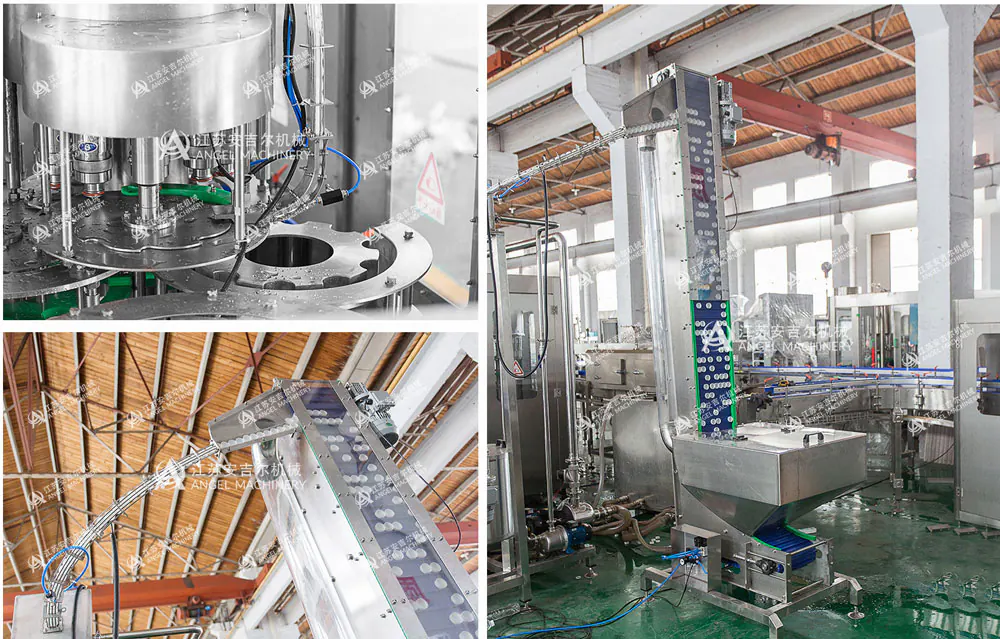

Inside the machine
Three stations, one frame
Bottles are carried by the neck from the rinser to the filler and the capper without being set down.
Rinsing
Bottles enter by air conveyor and are gripped at the neck. The clamp turns each bottle upside down through 180° on a guide rail, rinses and drains it, then turns it upright again before the filling star wheel. A splash guard keeps rinse water inside the machine.
Gravity filling
The bottle is lifted by its neck to the filling valve, which opens on contact and closes automatically when the set level is reached. Mechanical valves fill still water at room temperature with no electronic flow meters to maintain.
Capping
Caps are sorted by the cap unscrambler, run down the cap chute and are picked and screwed on by magnetic-torque capping heads. The capper has a reject function so a mis-placed cap does not stop the line.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
XGF series water filling machine (washing, filling, capping 3-in-1)
Source: Angel Machine 2026 catalogue, page 8. Highlighted: XGF40-40-10, XGF50-50-12.
Swipe to see all models →
| Model | XGF8-8-3 | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-12 |
|---|---|---|---|---|---|---|---|
| Capacity (500 ml bottles/h) | 1000-2500 | 2000-4000 | 4000-8000 | 6000-12000 | 12000-16000 | 15000-20000 | 20000-24000 |
| Suitable bottle shape | PET round or square | ||||||
| Bottle diameter (mm) | Φ50-Φ115 | ||||||
| Bottle height (mm) | 160-320 | ||||||
| Compressed air pressure (MPa) | 0.3-0.7 | ||||||
| Washing medium | Aseptic water | ||||||
| Washing water pressure (MPa) | >0.06, ≤0.2 | ||||||
| Total power (kW) | 3.0 | 3.2 | 3.9 | 4.7 | 6.2 | 8.1 | 10.2 |
| Overall dimensions (mm) | 2150×1500×2200 | 2450×1650×2200 | 2750×1900×2200 | 3150×2100×2200 | 3450×2250×2200 | 3950×2650×2200 | 4350×3650×2200 |
| Weight (kg) | 2500 | 3200 | 4500 | 5500 | 6700 | 8500 | 9000 |
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What bottle sizes can the 20000 BPH water filling machine handle?
The XGF series fills round or square PET bottles 50–115 mm in diameter and 160–320 mm high. Capacities are rated on 500 ml bottles; a larger bottle reduces output. We build change parts to your bottle and cap samples.
02Can it fill sparkling or hot drinks?
No. The XGF monoblock is a gravity filler for still drinks at room temperature such as pure water and mineral water. Carbonated drinks need the DCGF isobaric filler and juice or tea needs the RCGF hot filler.
03What utilities does it need?
Compressed air at 0.3–0.7 MPa and aseptic rinse water at 0.06–0.2 MPa. Installed power ranges from 3.0 kW (XGF8-8-3) to 10.2 kW (XGF50-50-12).
04What is the price of this water filling machine?
The price depends on the model, your bottle and cap, the voltage in your country and whether water treatment, bottle blowing, labeling and packing are included. Send those details and we reply with a quotation for the exact configuration.
