Carbonated Drink Filling Machine
10000 BPH Carbonated Beverage Filling Machine
10,000 BPH
A high speed carbonated filling machine for established soda brands. Choose the DCGF40-40-12 if this soda filling machine must stay above 10,000 bottles per hour on larger bottles, since output falls as bottle volume rises.
- Rated output
- 10,000 bottles/h
- Drinks
- Carbonated soft drinks in PET
- Filling
- Isobaric
- Cap
- Plastic screw cap or crown cap
DCGF32-32-10 / DCGF40-40-12
Quick answerFor 10,000 bottles per hour of carbonated drink in PET, Angel offers the DCGF32-32-10 (rated 7,000–10,000 bottles/h, 6.2 kW) and the DCGF40-40-12 (10,000–15,000 bottles/h, 7.5 kW). Both carbonated beverage filling machines rinse, isobaric-fill and cap in one frame.
Inside the machine
Three stations, one frame
Bottles are carried by the neck from the rinser to the filler and the capper without being set down.

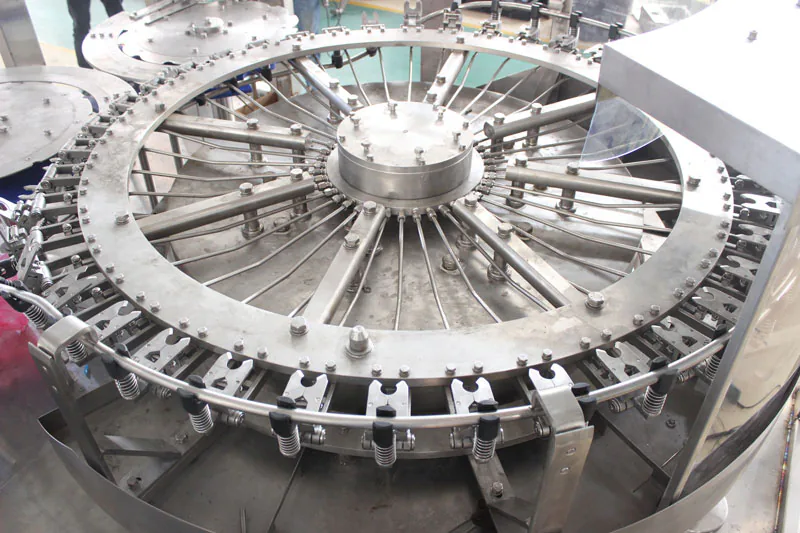

Rinsing
Neck-handling grippers invert each PET bottle for an internal rinse and drain before filling. Changing to another bottle size mainly means changing the star wheels and guide parts.

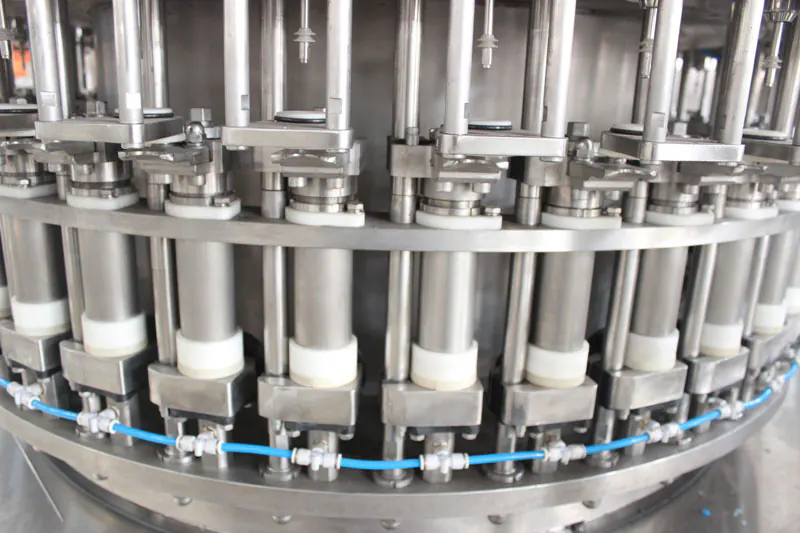

Isobaric filling
The bottle is pressurised with CO₂ to the tank pressure before the valve opens, so the drink fills without foaming and keeps its carbonation. Filling pressure is up to 0.4 MPa with liquid-level accuracy within ±5 mm.

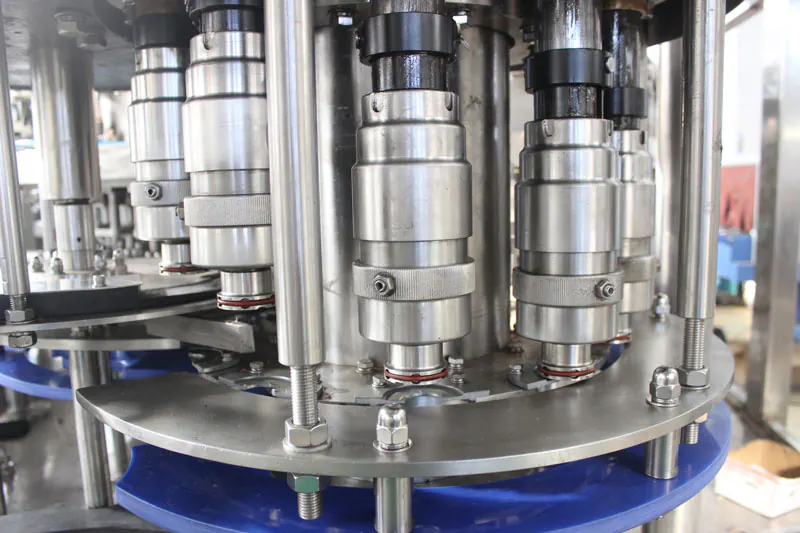

Capping
Plastic screw caps or crown caps are applied straight after filling. A no-bottle, no-cap interlock stops cap feed when there is no bottle at the station.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
DCGF series carbonated drink 3-in-1 filling machine
Source: Angel Machine 2026 catalogue, page 13. Highlighted: DCGF32-32-10, DCGF40-40-12.
Swipe to see all models →
| Model | DCGF14-12-6 | DCGF18-18-6 | DCGF24-24-6 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 | DCGF60-60-15 |
|---|---|---|---|---|---|---|---|
| Production capacity (bottles/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 | 16000-20000 | 20000-24000 |
| Filling precision | ≤ ±5 mm (liquid level) | ||||||
| Filling pressure (MPa) | ≤0.4 | ||||||
| PET bottle (mm) | Diameter Φ50-Φ115, height 160-320 | ||||||
| Suitable cap | Plastic screw cap or crown cap | ||||||
| Total power (kW) | 4 | 5.2 | 6.2 | 6.2 | 7.5 | 11 | 15 |
| Weight (kg) | 2500 | 3500 | 4500 | 6000 | 7200 | 10000 | 11500 |
| Overall dimensions (mm) | 2250×1650×2250 | 2600×1965×2250 | 2980×2200×2250 | 3880×2200×2250 | 4000×2250×2500 | 5500×3500×2500 | 6500×5500×2550 |
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01What CO₂ level can the carbonated drink filling machine keep?
The CO₂ level is set by the QHS mixer; the isobaric filler keeps it by pressurising the bottle to tank pressure (up to 0.4 MPa) before filling.
