5 Gallon Water Filling Machine
100–150 BPH 5 Gallon Filling Machine
60–300 barrels/h
For a start-up barrel water plant; in many markets the same machine is called a 20 liter water bottle filling machine or water jar filling machine. The QGF-100 is rated 60–100 and the QGF-300 250–300 barrels per hour; tell us the output you need and we will confirm the model.
- Barrels
- 3 and 5 gallon, Φ270 × 490 mm
- Liquids
- Mineral water, pure water, other still drinks
- Process
- Washing, filling, capping
- Power supply
- 380 V / 50 Hz
QGF-100 / QGF-300Quick answerA small 5 gallon water plant uses a single-head QGF gallon filling machine that washes, fills and caps 3 and 5 gallon barrels (Φ270 × 490 mm). In the 2026 catalogue the QGF-100 is rated 60–100 barrels per hour and the QGF-300 250–300 barrels per hour.
Inside the machine
Three stations, one frame
Bottles are carried by the neck from the rinser to the filler and the capper without being set down.

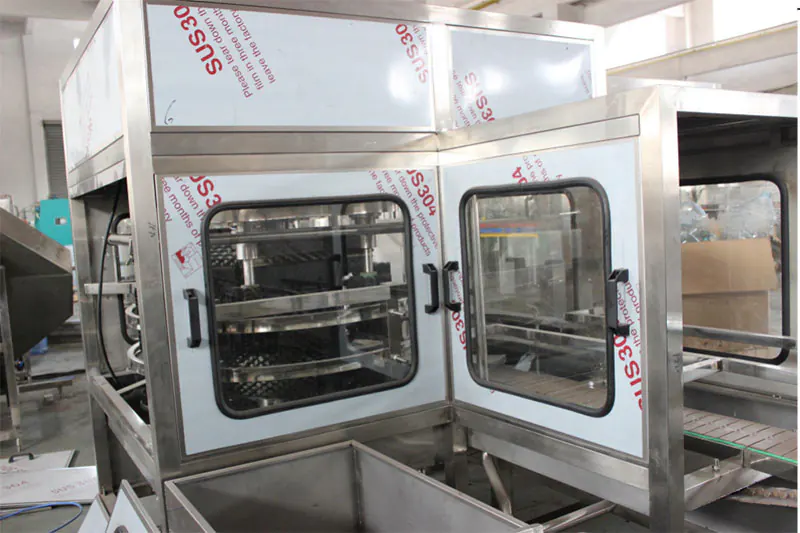

Decapping and outside brushing
Returned barrels are decapped automatically and their outside is brushed before they enter the main machine.

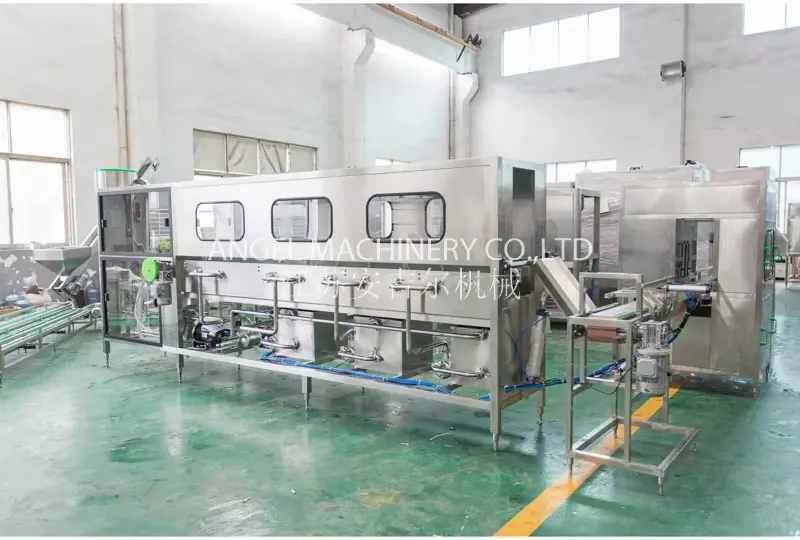

Washing, filling and capping
Inside the main machine each barrel is sprayed with several wash liquids and high-pressure water, then filled and capped. Caps are sprayed with water so they enter the capper clean.

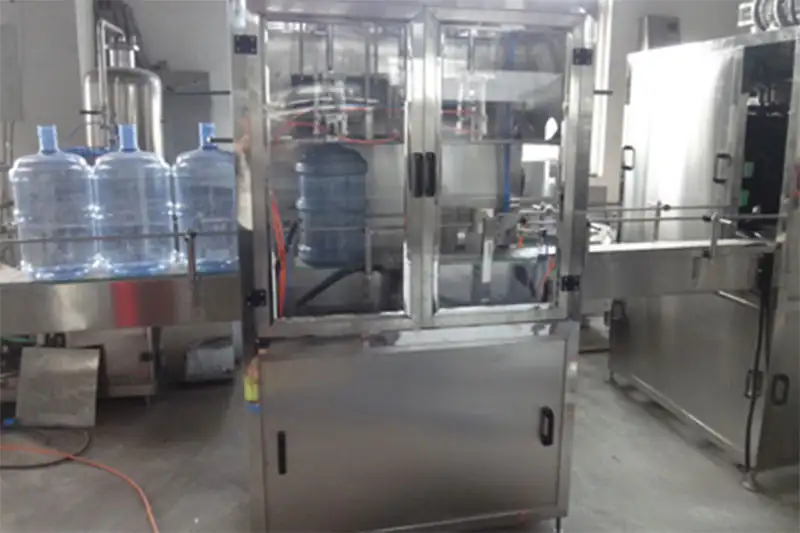

Inspection and discharge
Capped barrels pass a light check and the cap shrinker, are counted and discharged to the bagger or palletizer.
Technical specifications
Catalogue tables
Figures as printed in the 2026 catalogue. Output depends on bottle size and product; we confirm the model for your project.
Full automatic 5 gallon water production line (QGF)
Source: Angel Machine 2026 catalogue, page 12. Highlighted: QGF-100, QGF-300.
Swipe to see all models →
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
|---|---|---|---|---|---|---|---|---|
| Filling heads | 1 | 2 | 3 | 4 | 6 | 12 | 15 | 18 |
| Barrel volume (gallon) | 3 & 5 | |||||||
| Barrel size (mm) | Φ270×490 | |||||||
| Capacity (barrels/h) | 60-100 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 | 1300-1500 | 1800-2000 |
| Air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6-0.8 | 0.6-0.8 |
| Air consumption (m³/min) | 0.37 | 0.6 | 0.8 | 1.0 | 1.5 | 3.0 | 3.75 | 4.5 |
| Motor power (kW) | 2.03 | 3.35 | 5.57 | 5.57 | 6.37 | 8.87 | 9.24 | 11.24 |
| Rated voltage | 380 V / 50 Hz | |||||||
| Weight (kg) | 700 | 1500 | 2100 | 2700 | 3400 | 4200 | 5000 | 6000 |
FAQ
Frequently asked questions
Not covered here? Our engineers answer on WhatsApp, usually the same working day.
01Does the machine wash returned barrels?
Yes. Washing, filling and capping are in one unit. The washer uses several wash liquids and a high-pressure spray; a decapper and outside brusher can be added in front.
02What air supply does a QGF-100 need?
0.4–0.6 MPa compressed air at about 0.37 m³/min. Motor power is 2.03 kW at 380 V / 50 Hz.
