beverage can filling machine

This beverage can filling machine can be used for different material of cans, such as plastic, iron, aluminum and so on ,and the different size of cans is allowed.We can design the euipment according to your requirements. Our machine is fully automatic and have scientific and reasonable design. Also with beautiful appearance and complete functions, it’s easy to operate and maintain. We all use advanced German technology and Italian technnology.

Product Description

Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.

The beverage can filling machine has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.

We all use 304 stainless steel or food level material to ensure the high quality of our machine. PLC control system is used and electric parts are using famous brand like Mitsubishi Siemens Schneider and so on.

Can filling machine parameters
Can Type		PET Can, Aluminum can and iron can
Voltage		3 phase 380V/50HZ(can be customized)
Filling Precision		< = -5 mm ~+5 mm
Filling Pressure		<= 0.4Mpa
Model	AJ-C-8	AJ-C-12	AJ-C-18	AJ-C-24	AJ-C-32	AJ-C-40
capacity	2000CPH	2600CPH	5000CPH	8000CPH	12000CPH	will come soon
Weight	1200kg	1500kg	1800kg	2500kg	3200kg
Size of whole machine (length×width×height)	7508002250mm	9809002250mm	130012002250mm	180022002250mm	210022502500mm

Filling Machine Details display

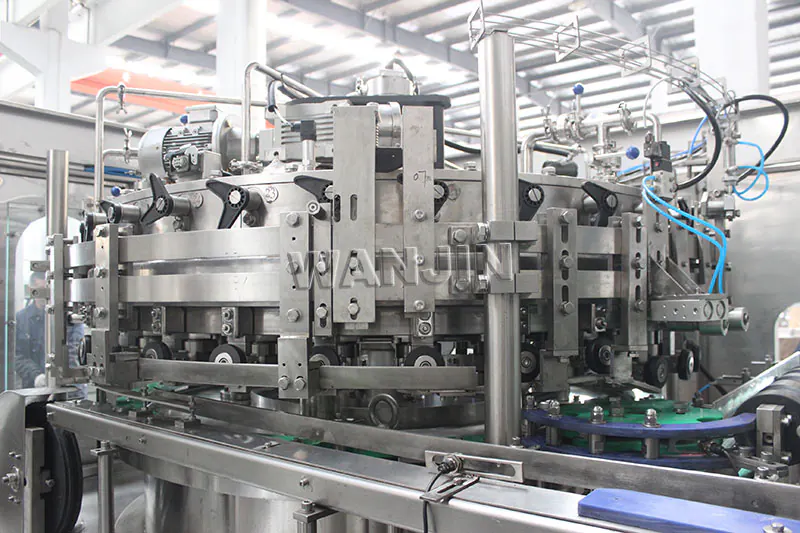

Filling Part

1.304/316 Stainless steel high precision filling nozzle
2.Filling volume adjustable in fine rank, same liquid level after filling
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump
5.Efficient spray nozzle rinse thoroughly and save water for flushing

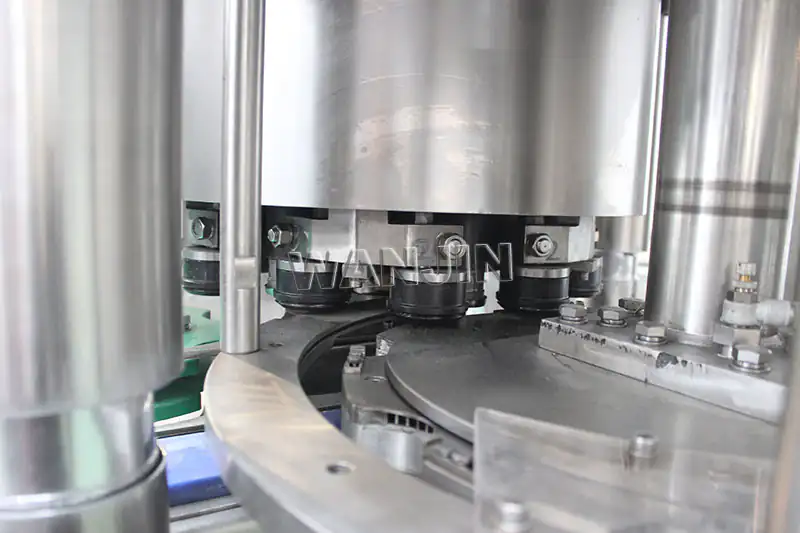

Capping part

1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5.Capping effect is stable and reliable,Defective rate ≤0.2%

Send Inquiry

Fill out my online form.

Beverage Can Filling Machine

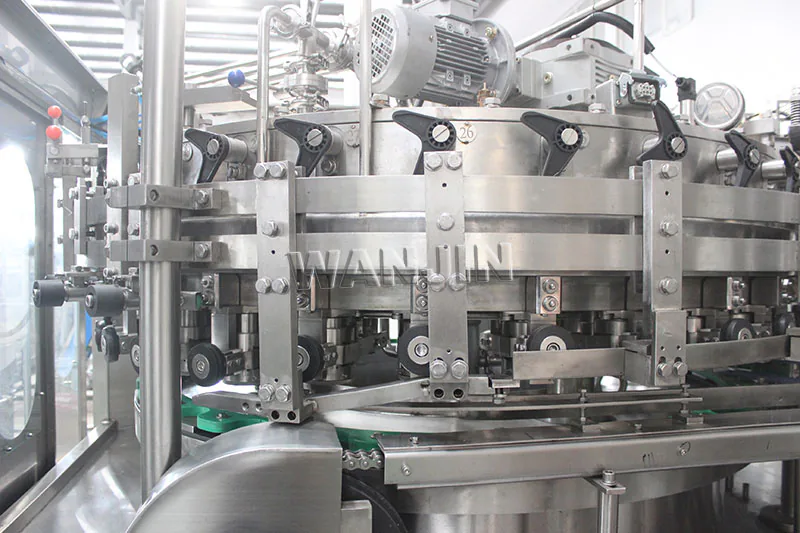

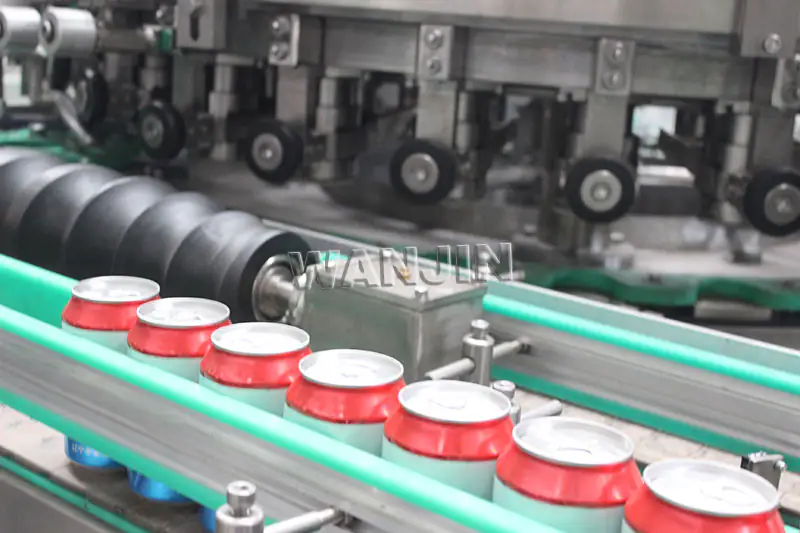

Beverage can filling machine is based on the filing urn and the filling valve. After can is washed, it is transferred to the filling machine through the middle spider. The star wheel will stuck can and sent them into the filling machine. The base will support the can to rotate around the filling machine, and the roll will open, the liquid will into can.

Product Description

The can filling machine produced by Wanjin machinery is a two-in-one filling machine integrating filling and sealing, which is developed on the basis of introducing and absorbing similar filling machine products at home and abroad. It is mainly applicable to the filling production of airless drinks such as fruit juice drinks. The equipment is controlled by PLC programmable control system and operated by touch screen. The cans are transported to the filling machine by conveyor chain.
